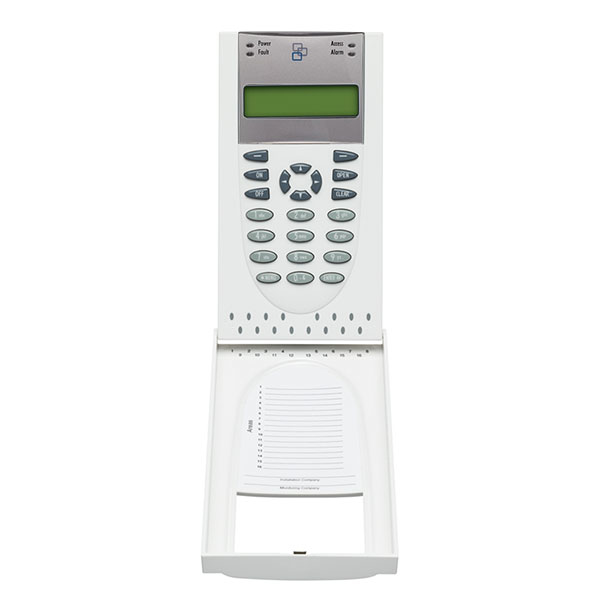

Arming Station 16 Area 2x16 LCD Display Tamper Detection Tecom
Tecom arming station features 16 areas, a 2x16 LCD display and tamper detection. Ideal for alarm systems requiring local arming and status display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tecom 120-100 Arming Station, Tecom 16-Area LCD Keypad, CA1110 LCD Remote Arming Station
Technical Specifications
- Model: CA1110
- Area Capacity: 16 areas
- Display: 2-line x 16-character LCD
- Status Indication: 16 area LEDs
- Supply Voltage: 8.5–14 VDC
- Maximum Operating Current: 95 mA at 13.8 VDC
- Normal Operating Current: 26 mA at 13.8 VDC with all areas armed
- Operating Temperature: 0°C to 50°C
- Humidity: Up to 95% non-condensing
- Tamper Detection: Integrated cover tamper
- Mounting: Rugged metal mounting bracket with multiple wiring conduits
- Dimensions (H x L x W): 165mm x 25.4mm x 92mm
- Weight: 1 kg
Key Features
- Displays status for up to 16 alarm areas
- 2 x 16-character LCD for arming information, system status and alerts
- Integrated tamper detection helps identify unauthorised removal or opening
- Sixteen LEDs indicate armed, disarmed, fault and alarm conditions
- Custom idle messages can display company names or emergency contact details
- Customisable keypad beeper tone
- Backlit keypad for low-light operation
- Compatible with Tecom Challenger alarm systems
Professional Installation Requirements
- Installation, addressing and commissioning should be performed by a qualified security technician familiar with Tecom Challenger systems. Wiring and system installation should follow the manufacturer's instructions and applicable intruder alarm requirements.
Applications
- Residential intruder alarm systems
- Commercial and retail security systems
- Office and industrial alarm installations
- Local arming and status display for Tecom Challenger control panels
- Replacement or additional remote arming station installations
Standards & Compliance
- AS/NZS 2201.1:2007 – Intruder alarm systems: client premises design, installation, commissioning and maintenance; applicable at system installation level
Environmental Benefits
- Low-voltage, low-current operation helps minimise power consumption during continuous standby use
- Durable housing and replaceable keypad design can extend the service life of compatible alarm systems
- Supports upgrading or repairing existing alarm installations without replacing the complete control system
Warranty Information
Tecom hardware is covered by a 5-year manufacturer warranty against defects, subject to the applicable Tecom warranty terms and conditions.
Available Now
Available through Tecom and authorised Australian security-system distributors, subject to current product availability.
