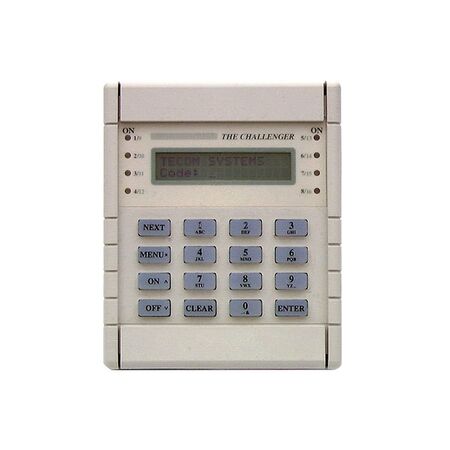

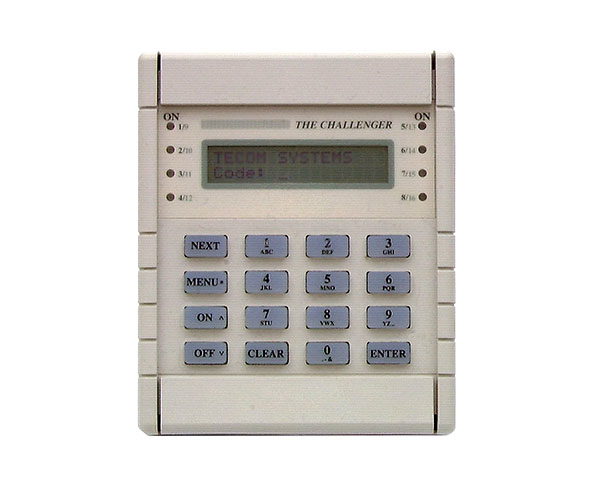

Arming Station 8 Area LCD 1.5km Range Custom Messages Tecom

BRAND: Ness
SKU: 120-106
$500.00 List price: $666.70
+ −
30 Days Return Electricians Unlock Trade Access
Tecom arming station features 8 areas, an LCD display, 1.5km range and custom messages. Ideal for alarm systems needing local arming and status display.

Alternatively Known As: Tecom 8-Area Arming Station, Tecom LCD Remote Arming Station, Challenger TS0801 Keypad

Technical Specifications
  • Model: TS0801
  • System Compatibility: Tecom Challenger control panels and access controllers
  • Area Indicators: 8 programmable area status LEDs
  • Display: 2-line LCD with 16 characters per line
  • Display and Keypad: Backlit
  • Maximum LAN Distance: 1,500 m from control panel or access controller
  • Power Supply: 10.5–13.8 V DC
  • Maximum Operating Current: 110 mA
  • Operating Temperature: 0°C to 50°C
  • Inputs: Egress button, active low to 0 V
  • Outputs: Open collector, 50 mA maximum
  • LAN Addressing: DIP switch selectable
  • Regulatory Marking: ACMA C-Tick for Australia and New Zealand
  • Dimensions (H x L x W): 130mm x 105mm x 27mm
  • Weight: 0.35 kg
Key Features
  • Displays the status of eight alarm areas
  • LCD provides alarm information and programmed system messages
  • Supports custom idle messages such as company details or emergency contact information
  • Backlit keys and LCD for low-light operation
  • Can be configured for areas 1–8 or 9–16
  • Continuous LAN monitoring for offline conditions
  • Suitable for replacement and retrofit installations on existing Challenger systems
Professional Installation Requirements
  • Installation, wiring and commissioning should be completed by a suitably qualified security-system technician in accordance with the manufacturer's instructions and applicable Australian requirements.
Applications
  • Local arming and disarming of Tecom Challenger alarm systems
  • Alarm and area status display in commercial premises
  • Security system keypad replacement and retrofit projects
  • Access-controlled buildings requiring a remote arming station
Standards & Compliance
  • AS/NZS 2201.1:2007 – applicable to the design, installation, commissioning and maintenance of intruder alarm systems incorporating an arming station
Environmental Benefits
  • Low-voltage DC operation with modest maximum current draw
  • Long service life and continued support for existing Challenger installations can reduce premature replacement waste
  • Retrofit compatibility allows existing alarm infrastructure to be retained rather than replaced
Warranty Information

Tecom Challenger hardware is covered by a 5-year warranty against manufacturing defects, subject to the supplier's warranty terms.

Available Now

Available through Tecom, Aritech and authorised Australian security-system distributors; this is a legacy model that has been superseded by newer keypad ranges but remains supported for compatible installations.
