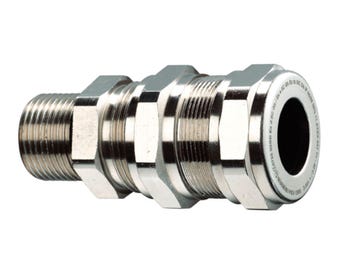

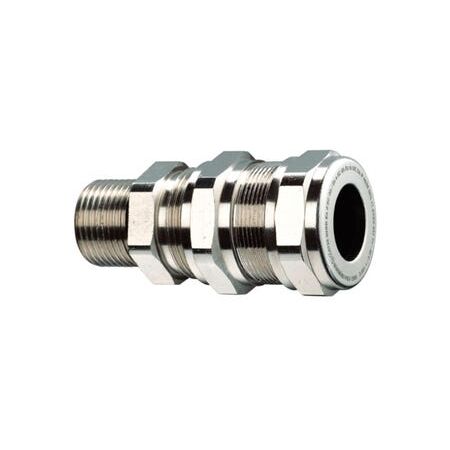

Armoured Cable Gland M50 | Double Compression | 27-41mm Clamping Range | Explosion Proof by Cabac
The Cabac M50 NP Armoured Cable Gland 27-41MM Ex de is a double compression cable gland designed for use with various armoured cables in hazardous environments, offering excellent corrosion resistance and wide cable clamping range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M50 NP ARMOURED NB 27-41MM Ex de
Brand: Cabac
SKU: EXN08MMC1
Alternatively Known As: Armoured Cable Gland M50, Explosion Proof Cable Gland, Double Compression Cable Gland
Technical Specifications
- Cable Type Compatibility: Steel Wire Armoured, Steel Wire Braid, Aluminium Wire Armoured, Steel Tape Armoured
- Cable Gland Type: Double compression
- Material: Nickel plated brass
- Cable Clamping Range: 27-41 mm
- Protection Type: Ex d (explosion proof), Ex e (increased safety), Ex tD (dust)
- Corrosion Resistance: Good
- Dimensions (H x L x W): 70mm x 100mm x 70mm
- Weight: 0.2 kg
Key Features
- Double compression cable gland design
- Compatible with Ex d explosion proof, Ex e increased safety, and Ex tD dust environments
- Good corrosion resistance
- Wide cable clamping range
- Nickel plated brass construction for durability
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in hazardous area electrical equipment to ensure compliance and safety.
Applications
- Industrial cable management for hazardous areas
- Use with Steel Wire Armoured (SWA), Steel Wire Braid (SWB), Aluminium Wire Armoured (AWA), and Steel Tape Armoured (STA) cables
- Suitable for explosion-proof and increased safety electrical installations
Standards & Compliance
- Complies with AS/NZS 60079 series for electrical equipment in explosive atmospheres
Environmental Benefits
- Durable nickel plated brass reduces need for frequent replacements, minimizing waste
- Supports safe and reliable electrical installations in hazardous environments, preventing environmental hazards
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac M50 NP Armoured Cable Gland 27-41MM Ex de is available for immediate purchase, ideal for industrial and hazardous area cable management applications.
