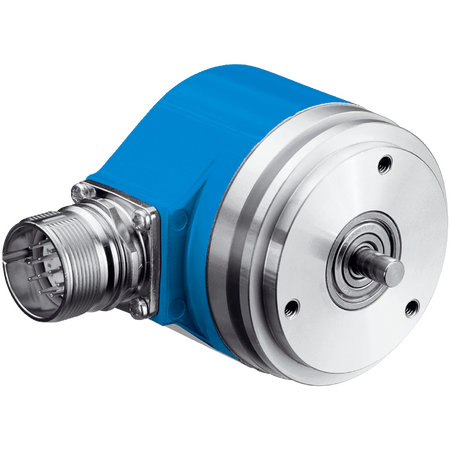

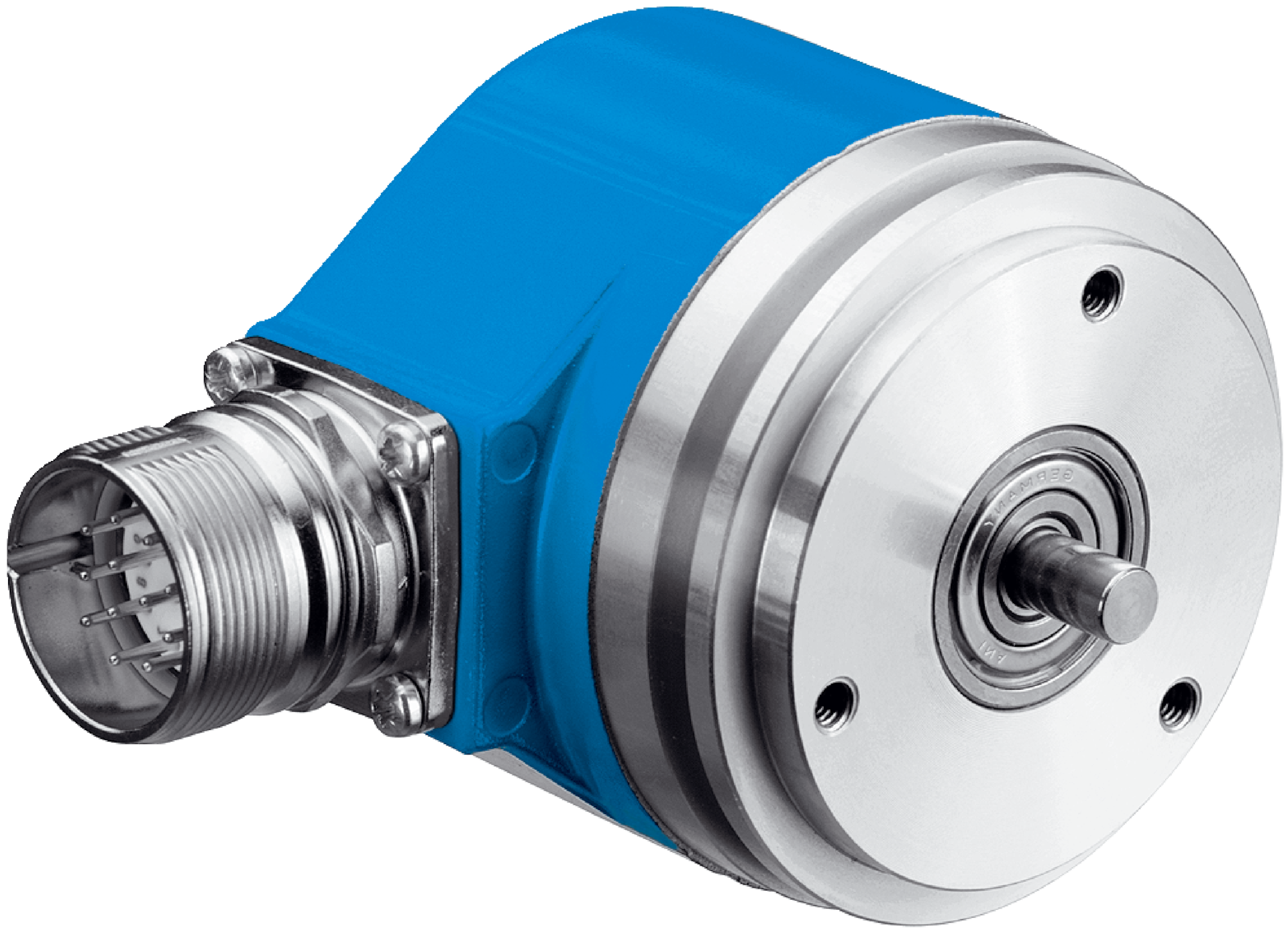

ARS60-A1A03600 Absolute encoders

BRAND: SICK
SKU: 1035830
$2,254.90 List price: $2,834.20
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-A1A03600 is a high-precision absolute encoder offering 3,600 steps per revolution, robust aluminum housing, and reliable SSI communication interface

Product Name/Title: ARS60-A1A03600 | Absolute encoders

Brand: SICK

SKU: 1035830

Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, ARS60 encoder, SICK rotary position sensor

Technical Specifications
  • Maximum resolution: 3,600 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI with Gray code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: typically 60 mA
  • Connection type: Male M23, 12-pin radial connector
  • Mechanical design: Solid shaft with flat, 6 mm diameter, 10 mm length
  • Housing material: Aluminum die cast
  • Start-up torque: 0.25 Ncm
  • Operating torque: 0.2 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Enclosure rating: IP65
  • Operating temperature range: -20°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 50 g, 11 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 3,600 steps per revolution
  • Solid shaft with servo flange and 6 mm diameter
  • Robust aluminum die cast housing
  • IP65 rated enclosure for dust and water protection
  • Low start-up torque of 0.25 Ncm and operating torque of 0.2 Ncm
  • Male M23 12-pin radial connector for reliable connection
  • Operating temperature range from -20°C to +85°C
  • High resistance to shock (50 g) and vibration (20 g)
  • Communication via SSI interface with Gray code
  • Repeatability standard deviation of 0.005°
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Position and speed measurement in manufacturing
  • Machine tool and conveyor systems
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption with typical operating current of 60 mA
  • Robust construction minimizes environmental impact from damage and failure
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK ARS60-A1A03600 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
