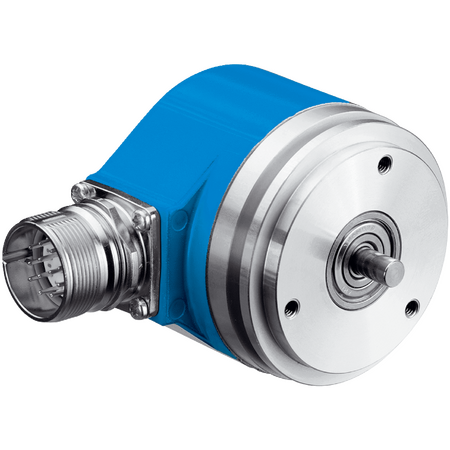

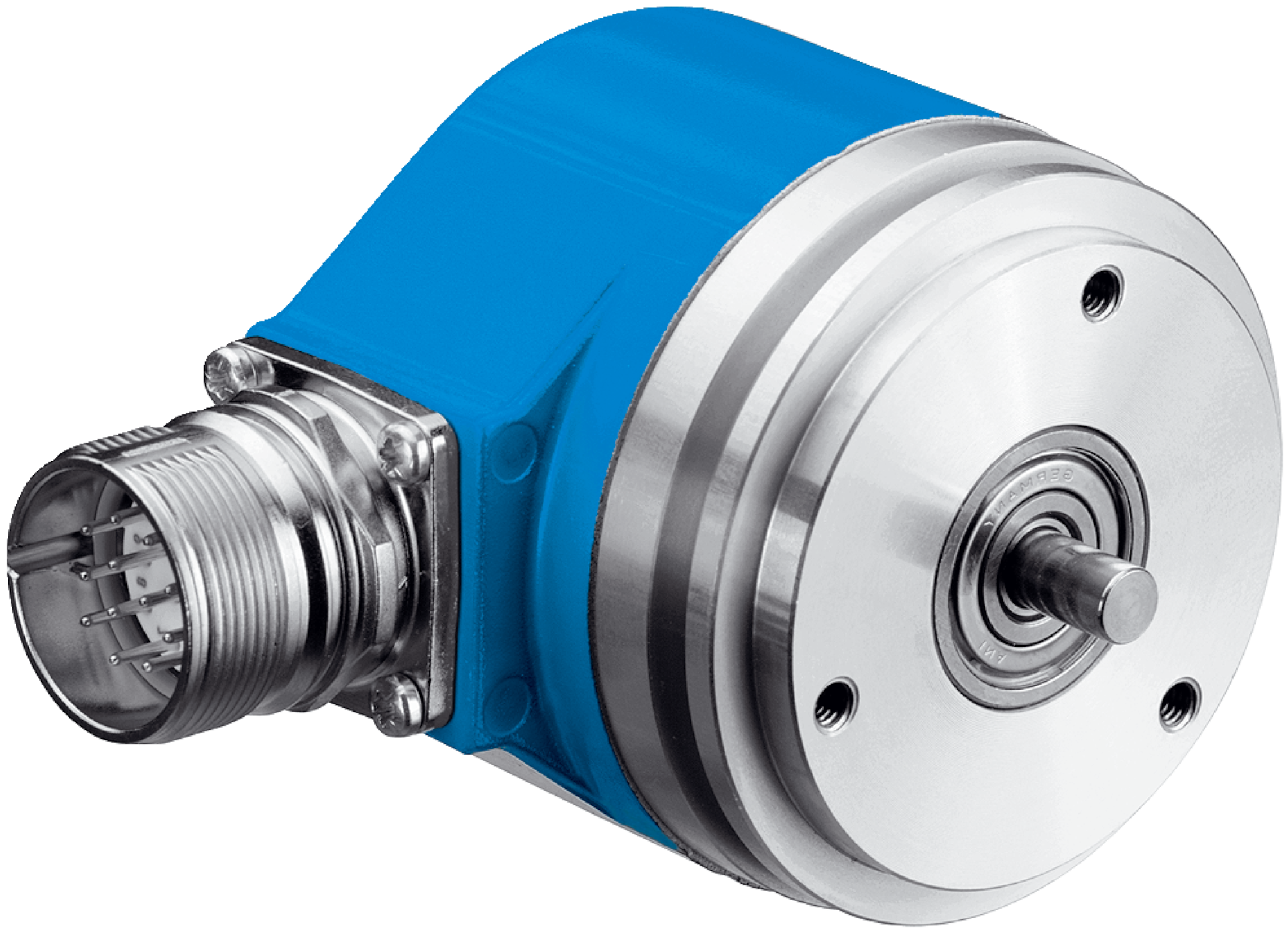

ARS60-A1A21600 Absolute encoders

BRAND: SICK
SKU: 1035366
$2,546.10 List price: $3,200.20
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-A1A21600 Absolute Encoder offers high precision position measurement with 21,600 steps per revolution, robust construction

Product Name/Title: ARS60-A1A21600 | Absolute encoders

Brand: SICK

SKU: 1035366

Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, high resolution encoder, position encoder

Technical Specifications
  • MTTFD: 300 years (EN ISO 13849-1)
  • Number of steps per revolution: 21,600
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI
  • Initialization time: 80 ms
  • Code type: Gray
  • Supply voltage: 10 to 32 V
  • Operating current: Typical 60 mA
  • Connection type: Male connector, M23, 12-pin, radial
  • Shaft diameter: 6 mm with flat
  • Start up torque: Typical 0.25 Ncm
  • Operating torque: Typical 0.2 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Enclosure rating: IP65 (IEC 60529)
  • Operating temperature range: -20°C to +85°C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 21,600 steps per revolution
  • Solid shaft with servo flange and 6 mm diameter
  • Robust aluminum die cast housing with IP65 rating
  • Low start-up torque of 0.25 Ncm and operating torque of 0.2 Ncm
  • Communication via SSI interface with Gray code
  • High repeatability with standard deviation of 0.005°
  • Wide operating temperature range from -20°C to +85°C
  • Certified for safety and compliance including cULus and China RoHS
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician familiar with industrial encoder systems to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and servo motor feedback
  • Position and speed measurement in manufacturing
  • Safety-related motion control applications
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable aluminum housing extends product life reducing waste
  • Low power consumption with typical operating current of 60 mA
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-A1A21600 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related motion control applications.
