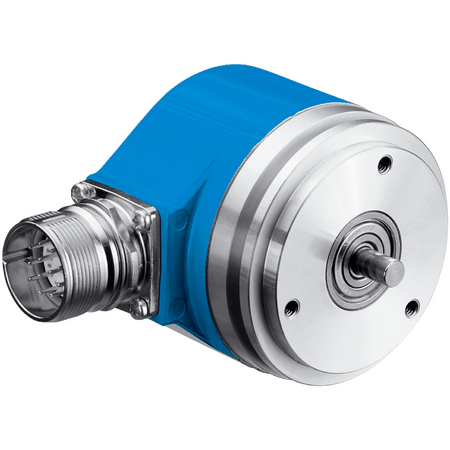

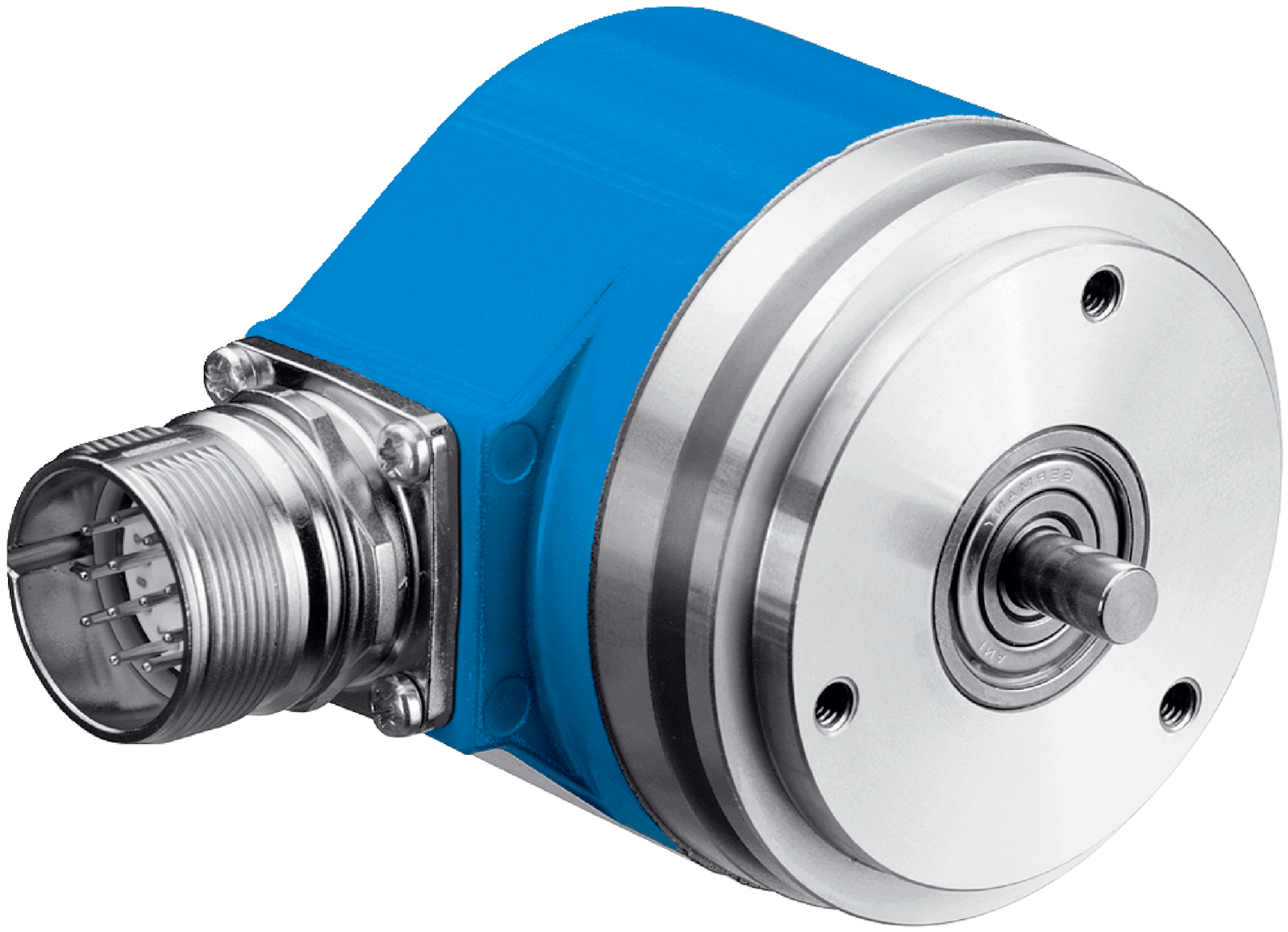

ARS60-A1A32768 | Absolute encoders
The SICK ARS60-A1A32768 Absolute Encoder offers high precision position measurement with 15-bit resolution, robust construction, and reliable SSI communication interface for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-A1A32768 | Absolute encoders
Brand: SICK
SKU: 1031503
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Resolution: 32,768 steps per revolution (15 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typical 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Housing material: Aluminum die cast
- Start up torque: 0.25 Ncm
- Operating torque: 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Solid shaft with servo flange and 6 mm diameter shaft
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque of 0.25 Ncm and operating torque of 0.2 Ncm
- Communication via SSI interface with Gray code
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption with typical operating current of 60 mA
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A1A32768 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
