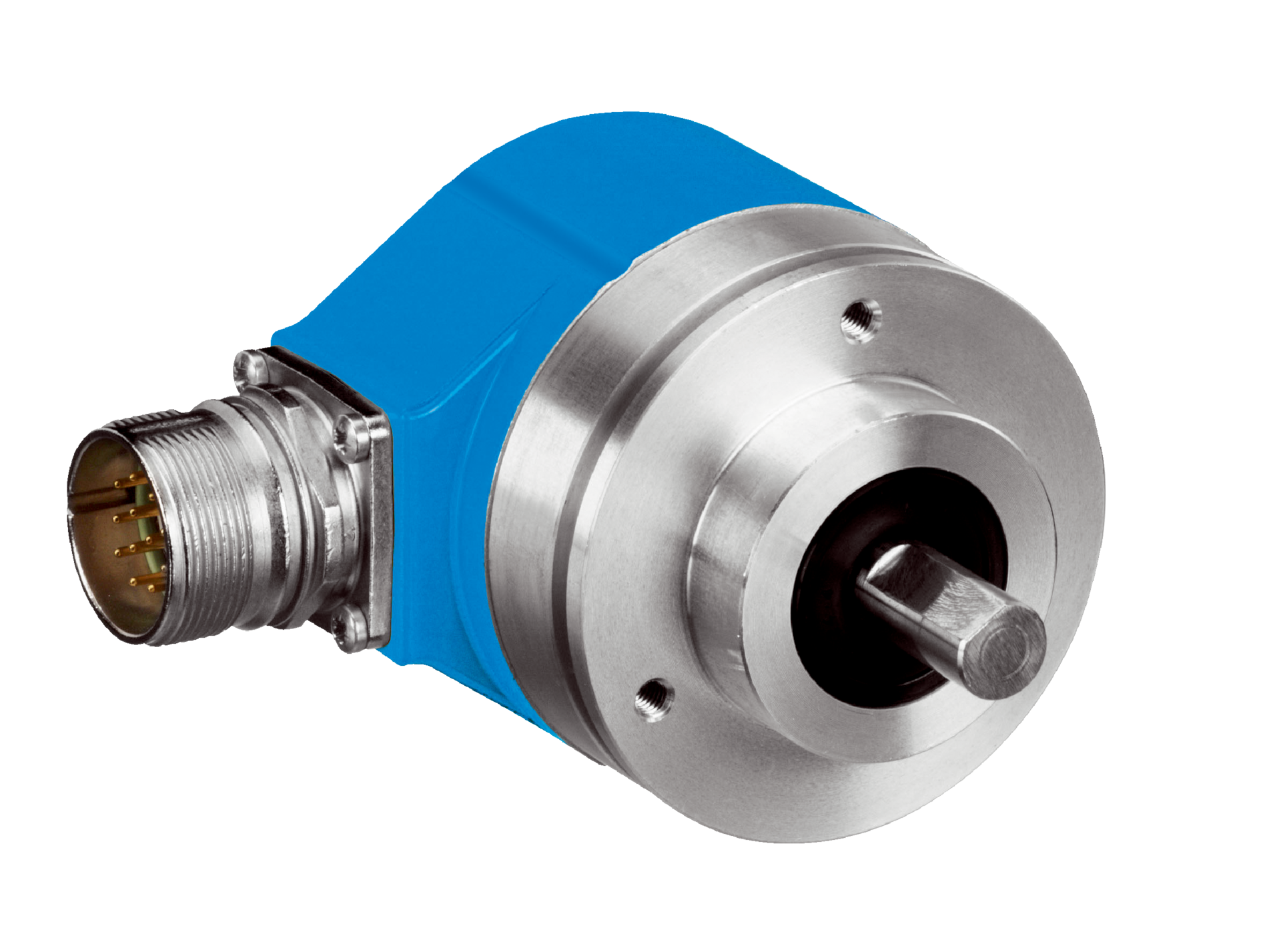

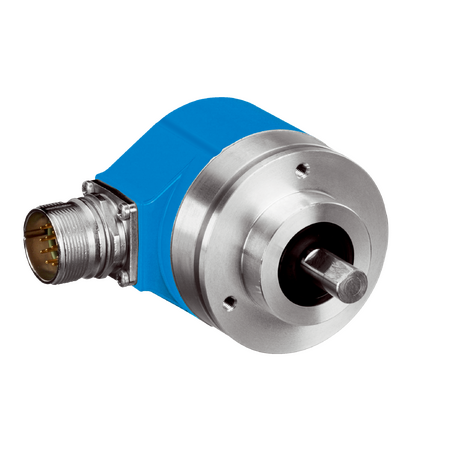

ARS60-A4A01440 Absolute encoders

BRAND: SICK
SKU: 1034764
$2,254.90 List price: $2,834.20
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-A4A01440 Absolute Encoder offers precise position measurement with 1,440 steps per revolution, robust construction, and reliable SSI interface

Product Name/Title: ARS60-A4A01440 | Absolute encoders

Brand: SICK

SKU: 1034764

Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, ARS60 encoder, industrial position sensor

Technical Specifications
  • Resolution: 1,440 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI with Gray code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 60 mA
  • Connection type: Male connector, M23, 12-pin, radial
  • Mechanical design: Solid shaft, face mount flange with flat
  • Shaft diameter: 10 mm, shaft length: 19 mm
  • Start up torque: Typically 0.4 Ncm
  • Operating torque: Typically 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Moment of inertia of rotor: 54 gcm²
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Angular acceleration: Up to 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 (IEC 60529)
  • Operating temperature range: -20°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 50 g, 11 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 80mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 1,440 steps per revolution
  • Solid shaft with face mount flange design
  • Robust aluminum die cast housing
  • IP65 rated enclosure for protection against dust and water
  • Low operating torque of typically 0.3 Ncm
  • High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
  • Fast initialization time of 80 ms
  • SSI communication interface with Gray code output
  • Wide operating temperature range from -20°C to +85°C
  • Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Position and speed measurement in manufacturing
  • Machine tool feedback systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption electronics contribute to energy efficiency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-A4A01440 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
