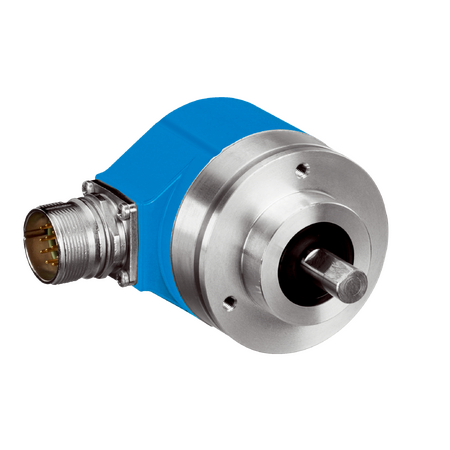

ARS60-A4A02048 | Absolute encoders
The SICK ARS60-A4A02048 Absolute Encoder offers precise position measurement with high resolution and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-A4A02048 | Absolute encoders
Brand: SICK
SKU: 1031414
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Resolution: 2,048 steps per revolution (11 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typical 60 mA
- Connection type: Male M23, 12-pin radial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: Typical 0.4 Ncm
- Operating torque: Typical 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature: -20°C to +85°C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 48mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution (11 bit)
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing with IP65 enclosure rating
- Low start-up torque (0.4 Ncm) and operating torque (0.3 Ncm)
- Operating temperature range from -20°C to +85°C
- High resistance to shocks (50 g) and vibration (20 g)
- SSI communication interface with Gray code output
- Fast initialization time of 80 ms
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (typical 60 mA operating current) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A4A02048 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
