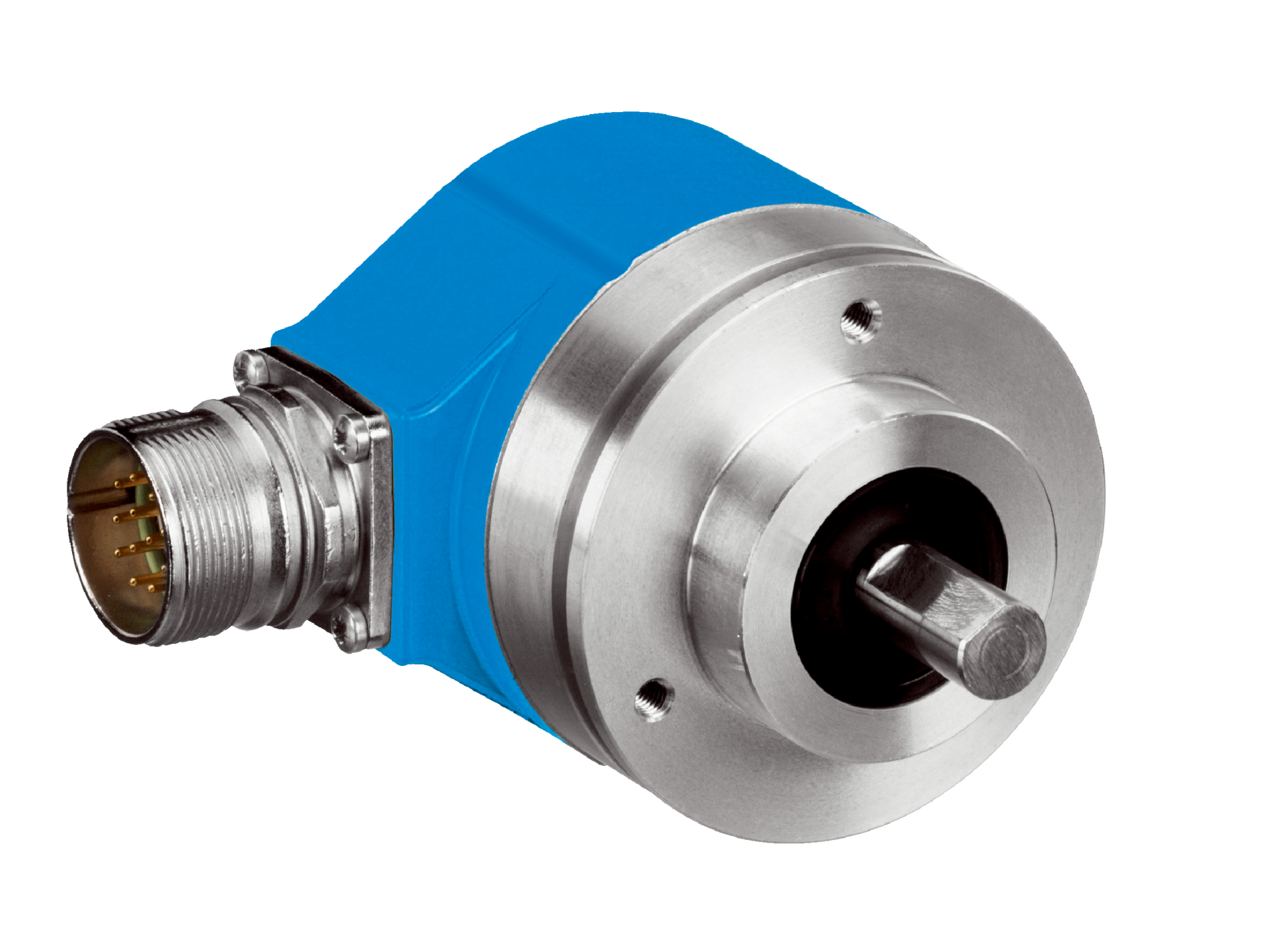

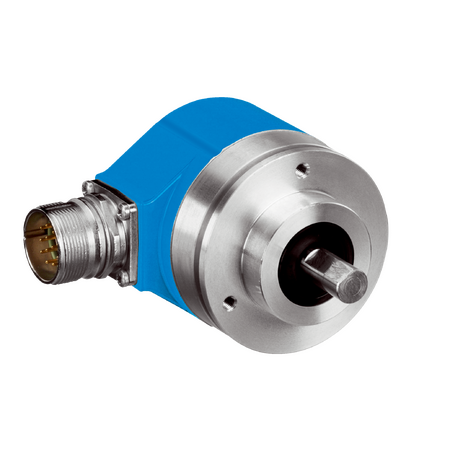

ARS60-A4A03600 Absolute encoders

BRAND: SICK
SKU: 1031419
$2,147.50 List price: $2,699.20
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-A4A03600 Absolute Encoder offers precise position measurement with 3,600 steps per revolution, robust construction

Product Name/Title: ARS60-A4A03600 | Absolute encoders

Brand: SICK

SKU: 1031419

Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, industrial position encoder, SICK ARS60 encoder

Technical Specifications
  • Number of steps per revolution: 3,600
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI with Gray code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: typically 60 mA
  • Connection type: Male connector, M23, 12-pin, radial
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 10 mm with flat
  • Start-up torque: typically 0.4 Ncm
  • Operating torque: typically 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Enclosure rating: IP65
  • Operating temperature range: -20 °C to +85 °C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 100mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 3,600 steps per revolution
  • Solid shaft with 10 mm diameter and flat for secure mounting
  • Robust aluminum die-cast housing with IP65 rating
  • Low start-up torque of typically 0.4 Ncm and operating torque of 0.3 Ncm
  • Communication via SSI interface with Gray code
  • High repeatability with standard deviation of 0.005°
  • Wide operating temperature range from -20 °C to +85 °C
  • Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Position and speed measurement in machinery
  • Safety-related monitoring in manufacturing processes
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption electronics contribute to energy efficiency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-A4A03600 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position measurement.
