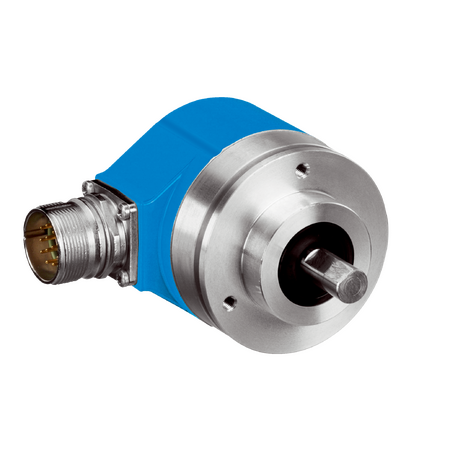

ARS60-A4A04000 | Absolute encoders
The SICK ARS60-A4A04000 Absolute Encoder offers high precision and reliability for industrial applications, featuring a solid shaft, robust housing, and advanced SSI communication interface.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-A4A04000 | Absolute encoders
Brand: SICK
SKU: 1035469
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Resolution: 4,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 10 mm with flat
- Start-up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP65
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,000 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Low start-up and operating torque for efficient operation
- High operating speed up to 10,000 min⁻¹ without shaft seal
- Reliable communication via SSI interface
- Gray code type with adjustable code sequence parameter
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption enhances energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A4A04000 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
