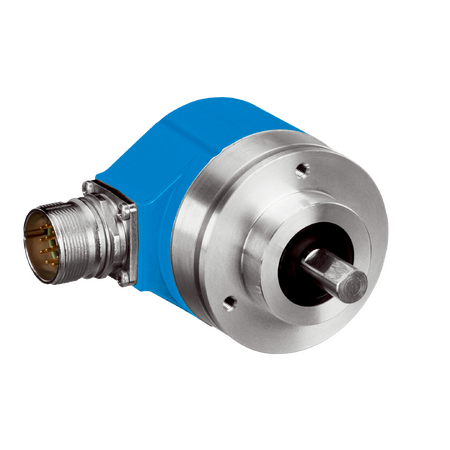

ARS60-A4A07200 Absolute encoders

BRAND: SICK
SKU: 1031443
$2,254.90 List price: $2,834.20
+ −
30 Days Return Electricians Unlock Trade Access

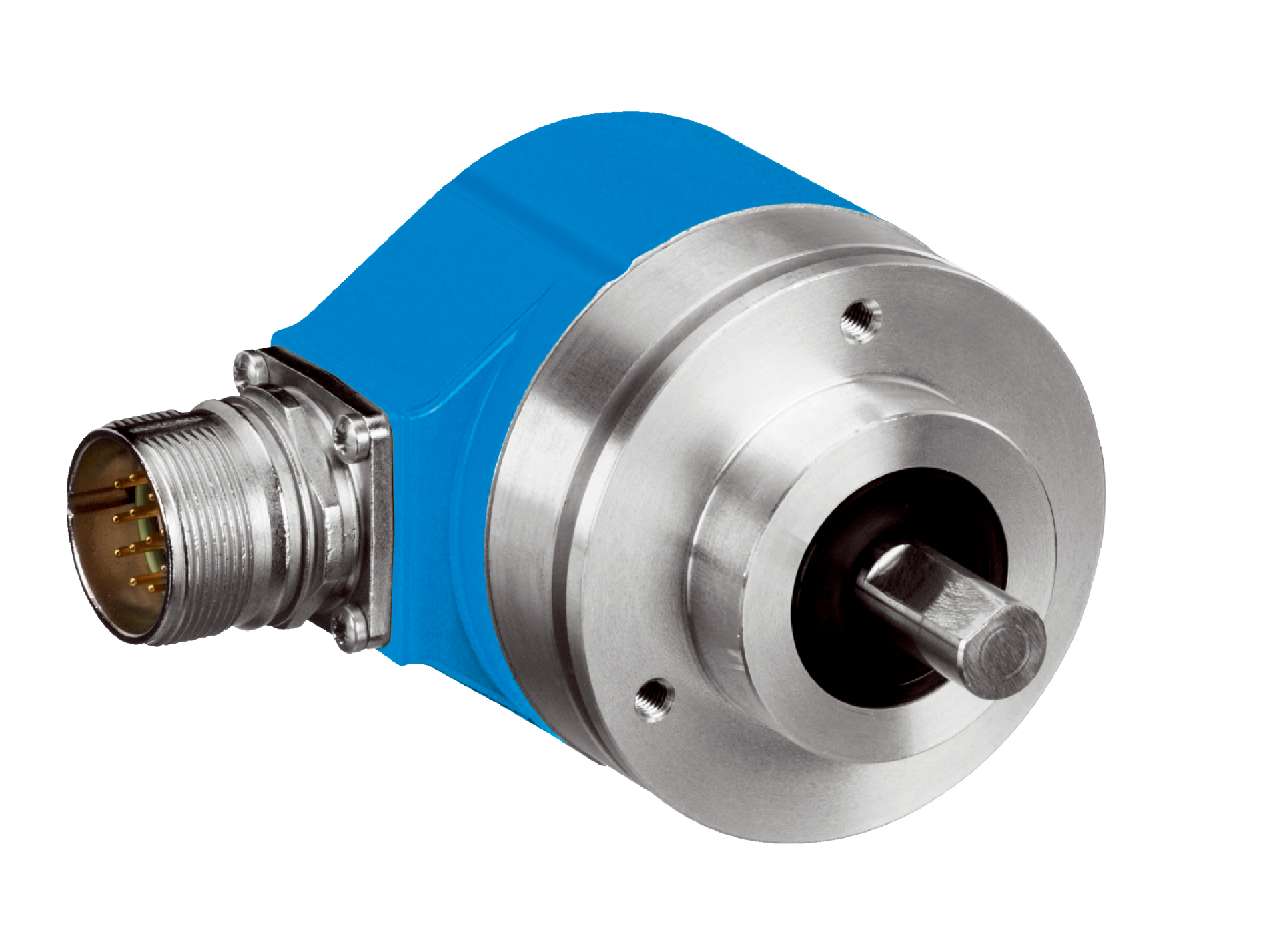

The SICK ARS60-A4A07200 is a high-precision absolute encoder featuring a solid shaft, SSI interface, and robust aluminum housing.

Product Name/Title: ARS60-A4A07200 | Absolute encoders

Brand: SICK

SKU: 1031443

Alternatively Known As: Absolute rotary encoder, SSI encoder, shaft encoder, position encoder, industrial encoder

Technical Specifications
  • Number of steps per revolution: 7,200
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI
  • Code type: Gray
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 60 mA
  • Connection type: Male connector, M23, 12-pin, radial
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 10 mm with flat
  • Start up torque: Typically 0.4 Ncm
  • Operating torque: Typically 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal
  • Enclosure rating: IP65
  • Operating temperature range: -20°C to +85°C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 80mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 7,200 steps per revolution
  • Robust aluminum die cast housing with IP65 rating
  • Solid shaft with 10 mm diameter and flat for secure mounting
  • Low operating torque of typically 0.3 Ncm
  • Fast initialization time of 80 ms
  • Reliable SSI communication interface with Gray code
  • High repeatability with standard deviation of 0.005°
  • Wide operating temperature range from -20°C to +85°C
  • Certified with multiple international conformity declarations
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
  • Industrial automation for precise position measurement
  • Robotics for accurate shaft angle detection
  • Machine tools requiring high resolution feedback
  • Conveyor systems and material handling equipment
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption with typical operating current of 60 mA
  • Complies with China RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-A4A07200 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
