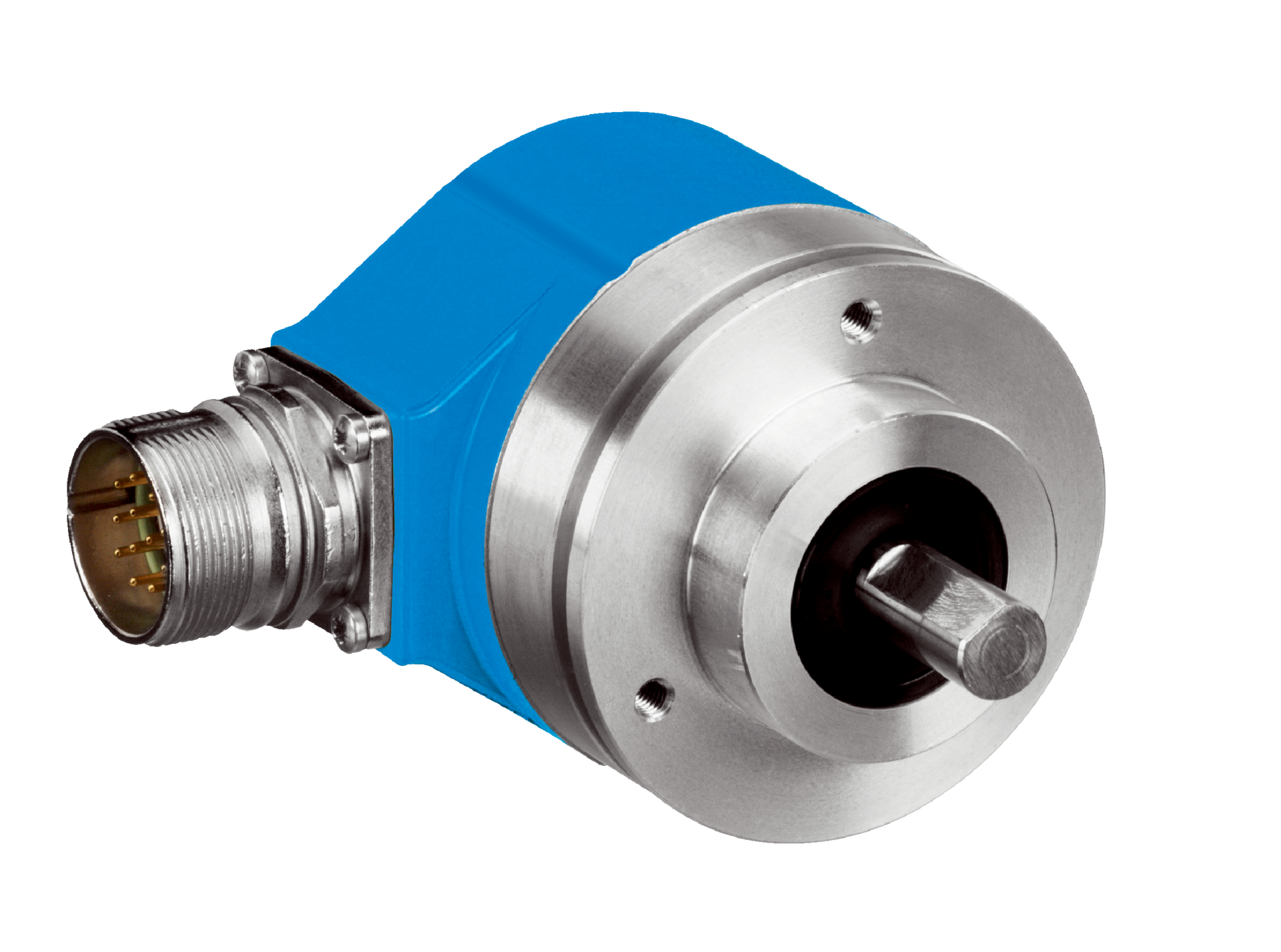

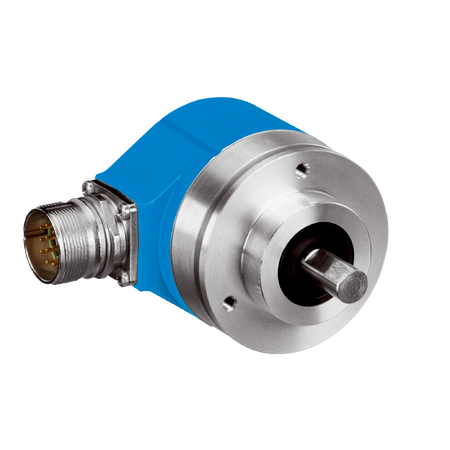

ARS60-A4A09360 | Absolute encoders
The SICK ARS60-A4A09360 absolute encoder offers precise position measurement with high resolution and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-A4A09360 | Absolute encoders
Brand: SICK
SKU: 1033900
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, position encoder, industrial encoder
Technical Specifications
- Maximum resolution: 9,360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Code type: Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male M23, 12-pin radial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 9,360 steps per revolution
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing with IP65 rating
- Low operating torque of typically 0.3 Ncm
- Fast initialization time of 80 ms
- SSI communication interface with Gray code output
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor systems and material handling
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption with typical operating current of 60 mA
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A4A09360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
