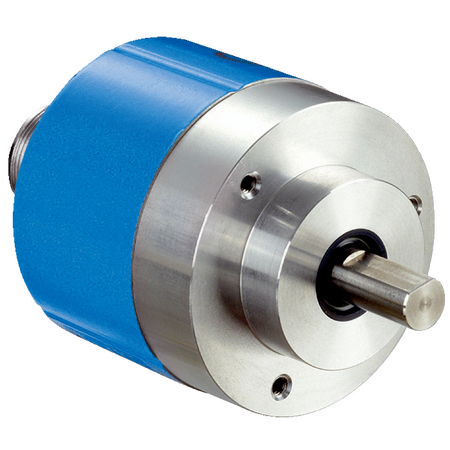

ARS60-A4B00360 | Absolute encoders

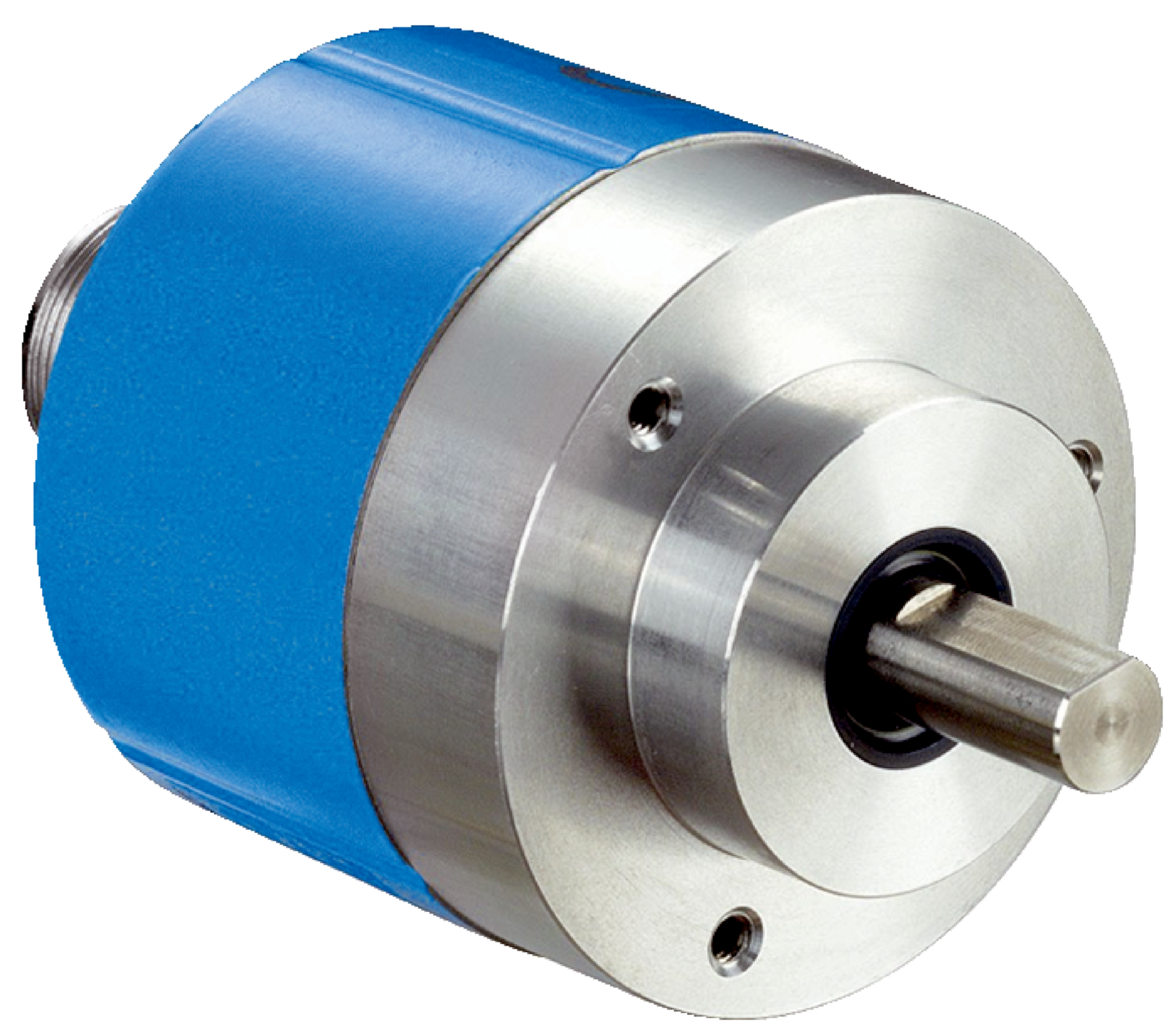

The SICK ARS60-A4B00360 is a high-precision absolute encoder featuring a solid shaft, SSI interface, and robust aluminum housing, ideal for industrial automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-A4B00360 | Absolute encoders
Brand: SICK
SKU: 1031389
Alternatively Known As: Absolute rotary encoder, SSI encoder, shaft encoder, position encoder, angular position sensor
Technical Specifications
- Maximum resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation: 0.005°
- Communication interface: SSI
- Code type: Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male M23, 12-pin axial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Robust aluminum die cast housing with IP65 protection
- Solid shaft with 10 mm diameter and flat for secure mounting
- Low operating torque of typically 0.3 Ncm
- Fast initialization time of 80 ms
- Reliable communication via SSI interface
- High resistance to shock (50 g) and vibration (20 g)
- Wide operating temperature range from -20°C to +85°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft position feedback
- Machine tools requiring high-resolution angular measurement
- Conveyor systems and material handling equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-A4B00360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
