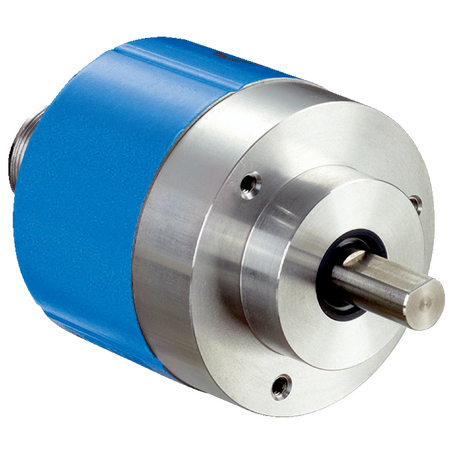

ARS60-A4B00500 Absolute encoders

BRAND: SICK
SKU: 1037751
$2,254.90 List price: $2,834.20
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-A4B00500 Absolute Encoder offers precise position measurement with 500 steps per revolution, robust aluminum housing, and reliable SSI interface

Product Name/Title: ARS60-A4B00500 | Absolute encoders

Brand: SICK

SKU: 1037751

Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, SSI Encoder, Position Encoder, Industrial Encoder

Technical Specifications
  • Maximum resolution: 500 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation: 0.005°
  • Communication interface: SSI with Gray code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: typically 60 mA
  • Connection type: Male M23, 12-pin axial connector

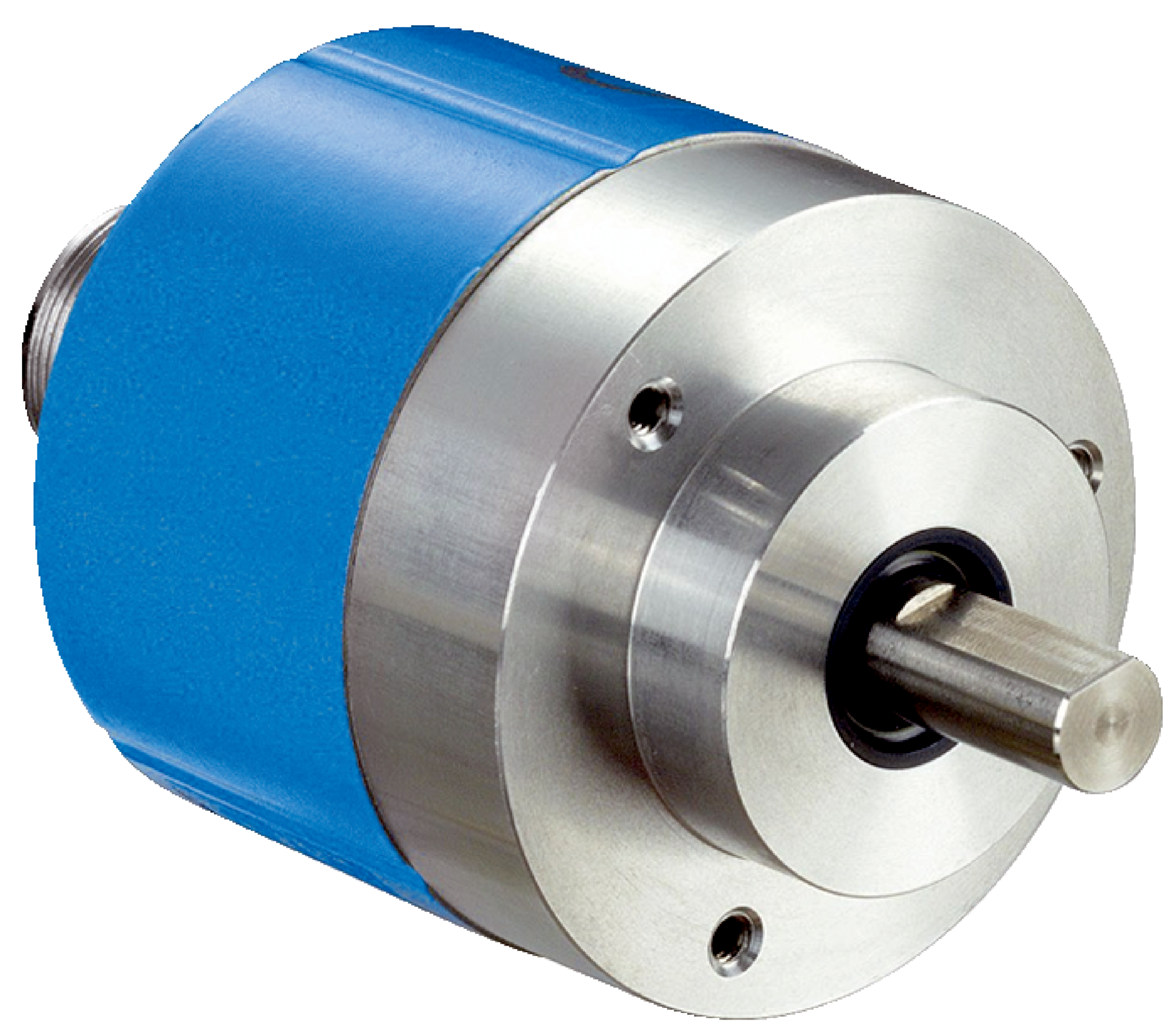

  • Mechanical design: Solid shaft with flat, face mount flange
  • Shaft diameter: 10 mm, shaft length: 19 mm
  • Housing material: Aluminum die cast
  • Start-up torque: 0.4 Ncm, Operating torque: 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: up to 6,000 min⁻¹ with shaft seal
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Enclosure rating: IP65
  • Operating temperature range: -20 °C to +85 °C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 500 steps per revolution
  • Solid shaft with face mount flange and 10 mm diameter shaft with flat
  • Robust aluminum die cast housing with IP65 rating
  • Low start-up torque (0.4 Ncm) and operating torque (0.3 Ncm)
  • High operating speed up to 6,000 min⁻¹ with shaft seal
  • Long bearing lifetime of 3.6 x 10⁹ revolutions
  • Reliable SSI communication interface with Gray code
  • Wide operating temperature range from -20 °C to +85 °C
  • Certified with multiple conformity declarations including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Machine tool positioning
  • Conveyor systems and material handling
  • Safety-related monitoring in machinery
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing electronic waste
  • Low power consumption (typical 60 mA operating current) supports energy efficiency
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-A4B00500 Absolute Encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related applications.
