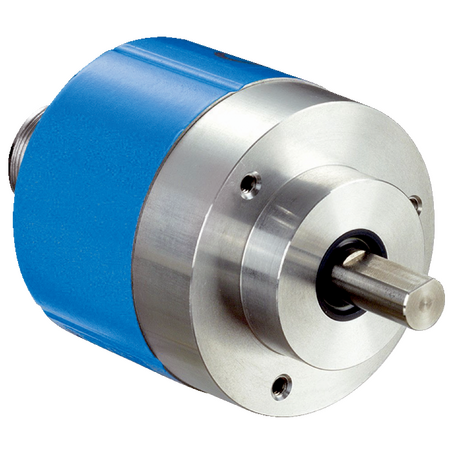

ARS60-A4B01024 | Absolute encoders
The SICK ARS60-A4B01024 Absolute Encoder offers precise angular measurement with high resolution and robust design, ideal for industrial automation and safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-A4B01024 | Absolute encoders
Brand: SICK
SKU: 1033042
Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, ARS60 encoder, SICK rotary position sensor
Technical Specifications
- Resolution: 1,024 steps per revolution (10 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typical 60 mA
- Connection type: Male connector, M23, 12-pin, axial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: Typical 0.4 Ncm
- Operating torque: Typical 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 80mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Solid shaft with face mount flange and 10 mm diameter
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque (0.4 Ncm) and operating torque (0.3 Ncm)
- Communication via SSI interface with Gray code
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple conformity declarations including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in machinery
- Safety-related applications requiring precise angular measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product lifespan reducing waste
- Low power consumption (typical 60 mA operating current) minimizes energy use
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-A4B01024 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
