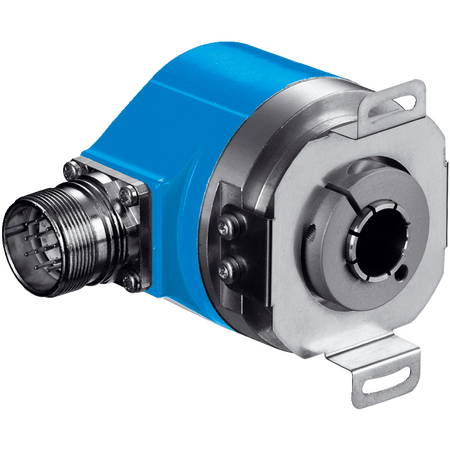

ARS60-AAA00720 | Absolute encoders

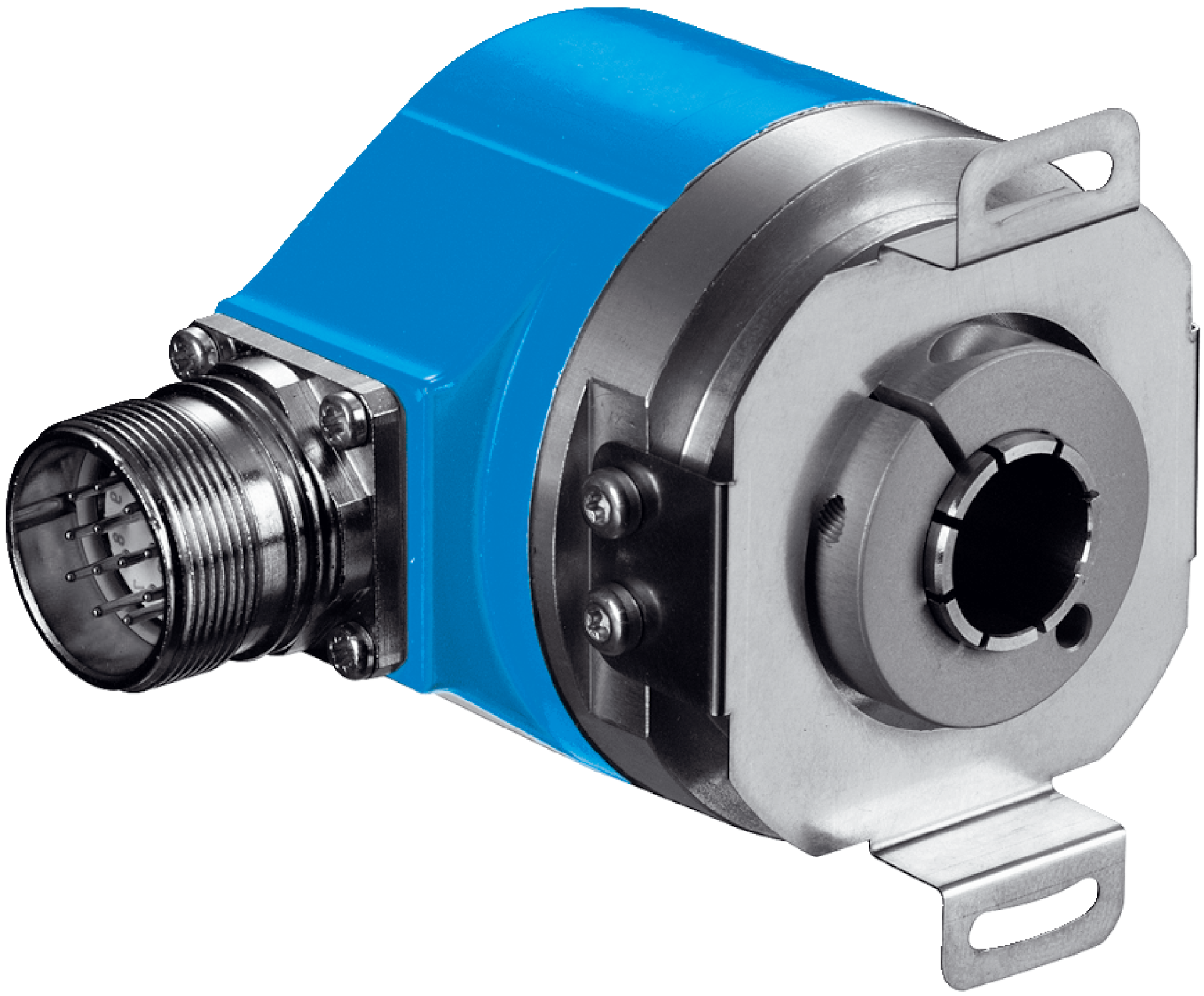

The SICK ARS60-AAA00720 is a high-precision absolute encoder featuring a blind hollow shaft, SSI interface, and robust IP65 aluminum housing, ideal for industrial automation and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-AAA00720 | Absolute encoders
Brand: SICK
SKU: 1032877
Alternatively Known As: Rotary Absolute Encoder, SSI Absolute Encoder, Hollow Shaft Encoder, ARS60 Encoder
Technical Specifications
- Number of steps per revolution: 720
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Housing material: Aluminum die cast
- Start-up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20 °C to +85 °C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 720 steps per revolution
- Robust aluminum die cast housing with IP65 protection
- Blind hollow shaft design with 15 mm shaft diameter
- Low start-up torque of typically 0.6 Ncm and operating torque of 0.4 Ncm
- Reliable SSI communication interface with Gray code output
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20 °C to +85 °C
- Resistance to shocks up to 50 g and vibration up to 20 g
- Long bearing lifetime rated at 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft position feedback
- Machine tools requiring high-resolution rotary position sensing
- Conveyor systems and material handling equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 60 mA
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-AAA00720 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
