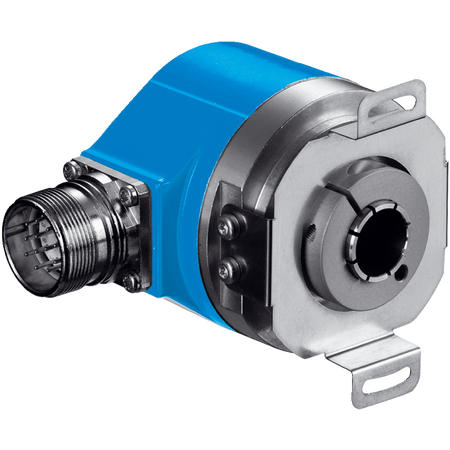

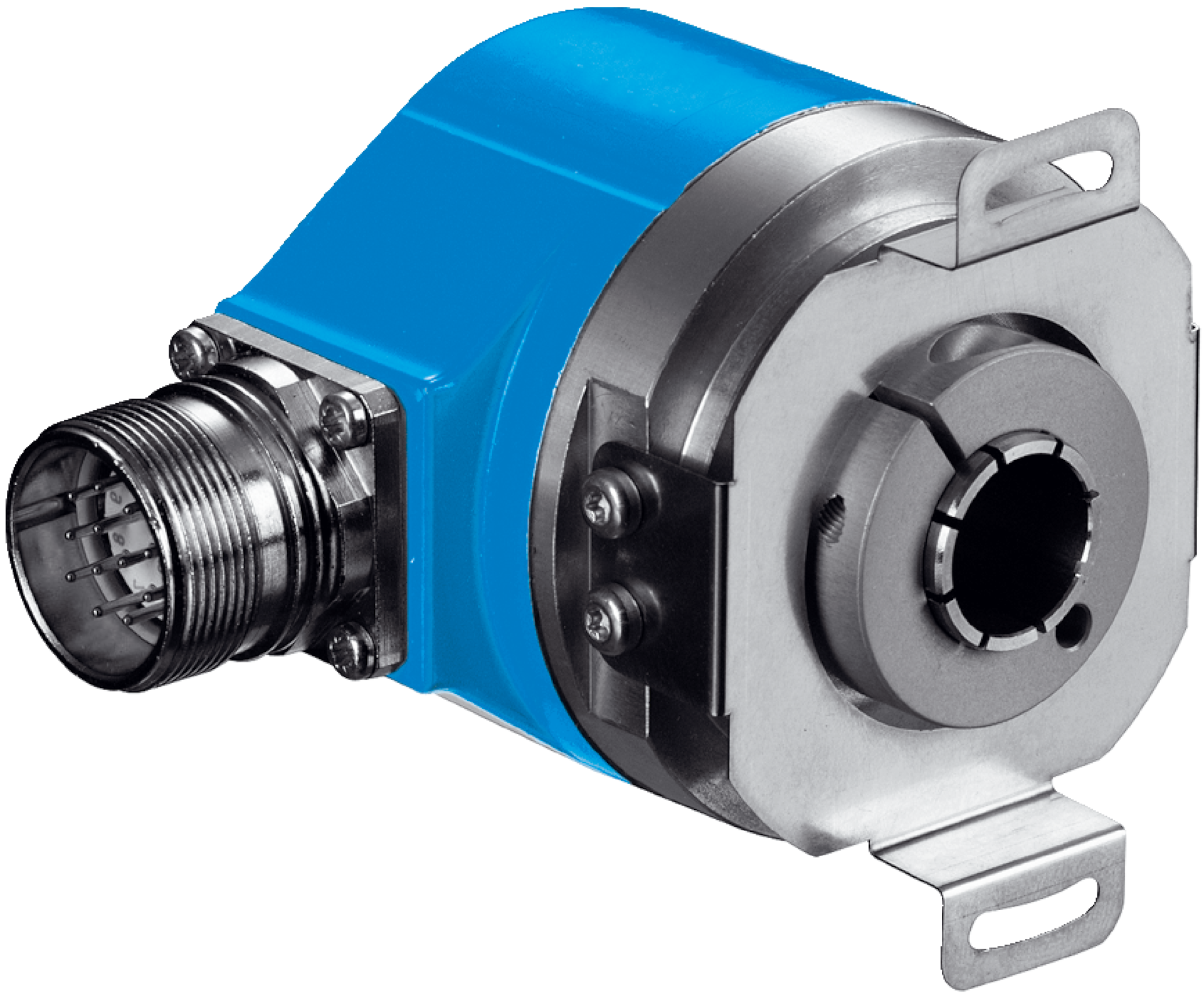

ARS60-AAA03600 Absolute encoders

BRAND: SICK
SKU: 1031421
$2,358.20 List price: $2,964.10
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-AAA03600 is a high-precision absolute encoder featuring 3,600 steps per revolution, robust aluminum housing, and SSI interface

Product Name/Title: ARS60-AAA03600 | Absolute encoders

Brand: SICK

SKU: 1031421

Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, ARS60 encoder, rotary position sensor

Technical Specifications
  • Number of steps per revolution: 3,600
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI
  • Code type: Gray
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: Typical 60 mA
  • Connection type: Male connector, M23, 12-pin, radial
  • Mechanical design: Blind hollow shaft with 15 mm diameter
  • Housing material: Aluminum die cast
  • Start-up torque: Typical 0.6 Ncm
  • Operating torque: Typical 0.4 Ncm
  • Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
  • Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: Up to 3,000 min⁻¹
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Operating temperature range: -20°C to +85°C
  • Enclosure rating: IP65
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 3,600 steps per revolution
  • Blind hollow shaft mechanical design with 15 mm shaft diameter
  • Robust aluminum die cast housing with IP65 rating
  • Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
  • SSI communication interface with Gray code type
  • High repeatability with standard deviation of 0.005°
  • Wide operating temperature range from -20°C to +85°C
  • Certified with multiple international conformity declarations including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician familiar with industrial encoder systems to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Position and speed measurement in manufacturing
  • Safety-related monitoring in machinery
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption (typical 60 mA operating current) supports energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-AAA03600 Absolute Encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related applications.
