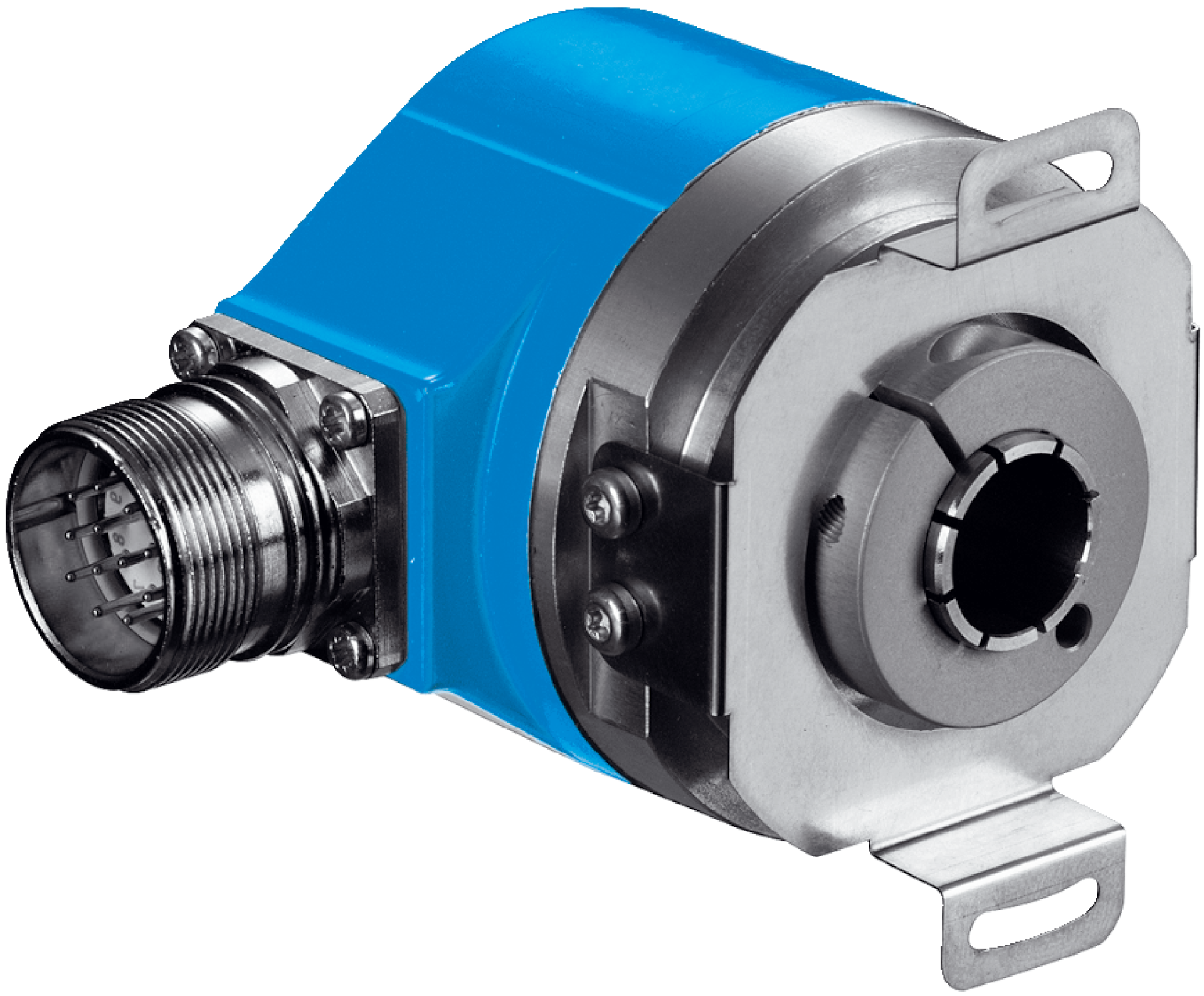

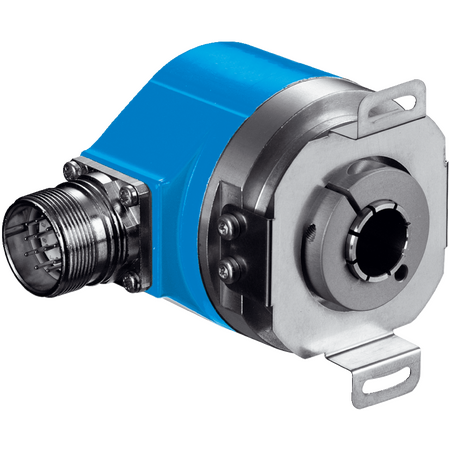

ARS60-AAA10000 | Absolute encoders
The SICK ARS60-AAA10000 Absolute Encoder offers high precision with 10,000 steps per revolution, robust construction, and reliable SSI interface, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-AAA10000 | Absolute encoders
Brand: SICK
SKU: 1032728
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Maximum resolution: 10,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typical 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Housing material: Aluminum die cast
- Start-up torque: Typical 0.6 Ncm
- Operating torque: Typical 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 10,000 steps per revolution
- Gray code type with SSI communication interface
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft design with 15 mm shaft diameter
- Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
- High repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks (50 g, 11 ms) and vibration (20 g, 10 Hz to 2000 Hz)
- Long bearing lifetime of 3.6 x 10^9 revolutions
- Complies with multiple international certifications including EU, UK, ACMA, China RoHS, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption (typical 60 mA operating current) supports energy efficiency
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-AAA10000 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and safety-related applications.
