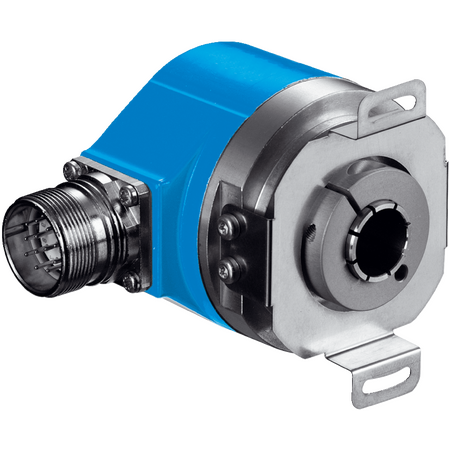

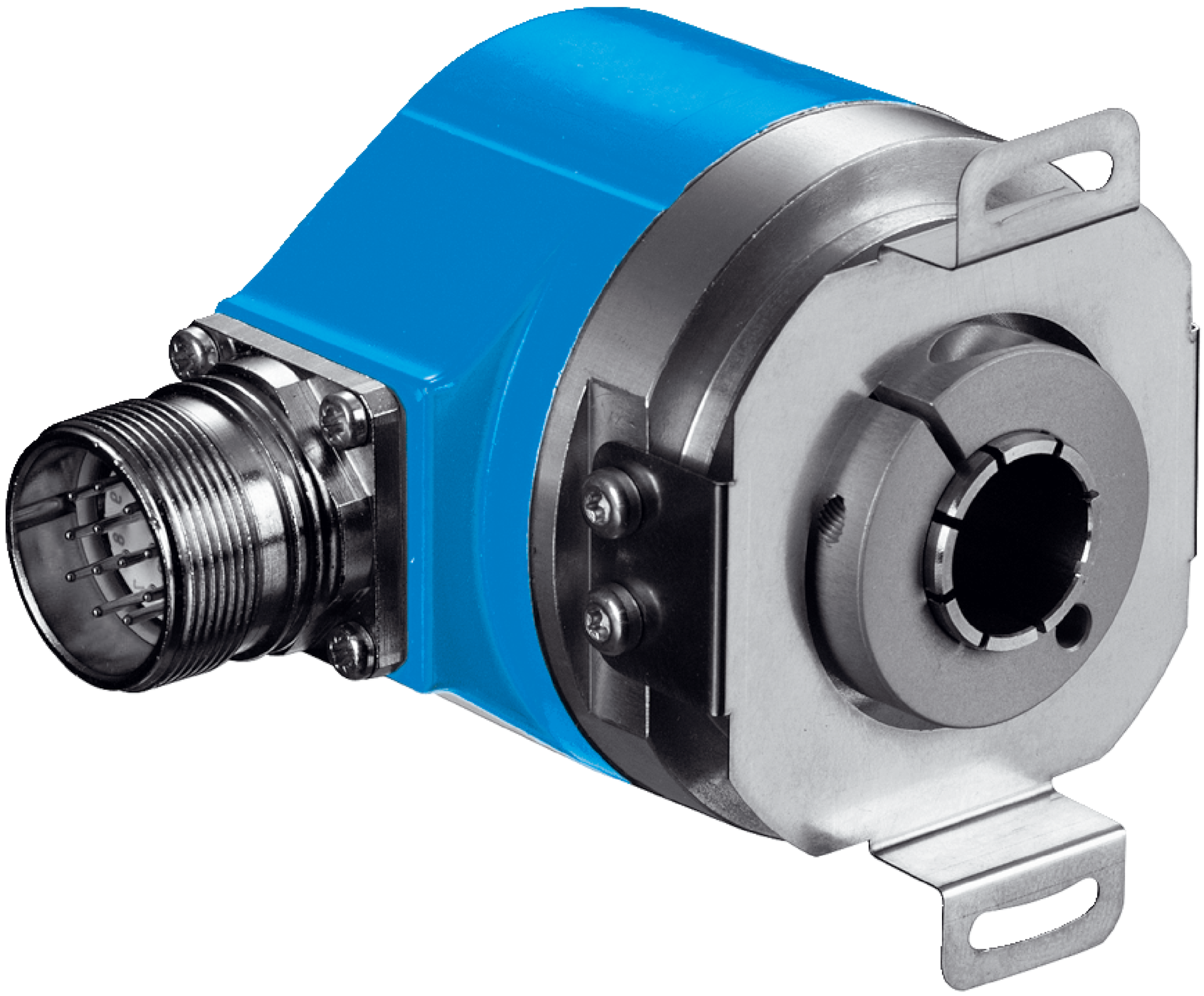

ARS60-AAA18080 Absolute encoders

BRAND: SICK
SKU: 1035476
$2,649.50 List price: $3,330.10
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-AAA18080 Absolute Encoder offers high precision position measurement with 18,080 steps per revolution, robust IP65 rated housing

Product Name/Title: ARS60-AAA18080 | Absolute encoders

Brand: SICK

SKU: 1035476

Alternatively Known As: Absolute rotary encoder, high resolution encoder, SSI encoder, hollow shaft encoder

Technical Specifications
  • Resolution: 18,080 steps per revolution
  • Measuring step deviation: 0.016°
  • Repeatability standard deviation: 0.005°
  • Communication interface: SSI with Gray code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: Typical 60 mA
  • Connection type: Male M23, 12-pin radial connector
  • Mechanical design: Blind hollow shaft, 15 mm diameter
  • Housing material: Aluminum die cast
  • Start-up torque: Typical 0.6 Ncm
  • Operating torque: Typical 0.4 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: Up to 3000 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Operating temperature range: -20°C to +85°C
  • Enclosure rating: IP65
  • Shock resistance: 50 g, 11 ms
  • Vibration resistance: 20 g, 10 Hz to 2000 Hz
  • Dimensions (H x L x W): 60mm x 80mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 18,080 steps per revolution
  • Robust aluminum die cast housing with IP65 rating
  • Blind hollow shaft design with front clamp
  • Low operating and start-up torque for efficient operation
  • SSI communication interface with Gray code
  • High repeatability and low measuring step deviation
  • Wide operating temperature range from -20°C to +85°C
  • Resistance to shocks (50 g) and vibration (20 g)
Professional Installation Requirements
  • Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement in manufacturing
  • Position feedback for motors and drives
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing electronic waste
  • Low power consumption (typical 60 mA operating current) supports energy efficiency
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-AAA18080 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
