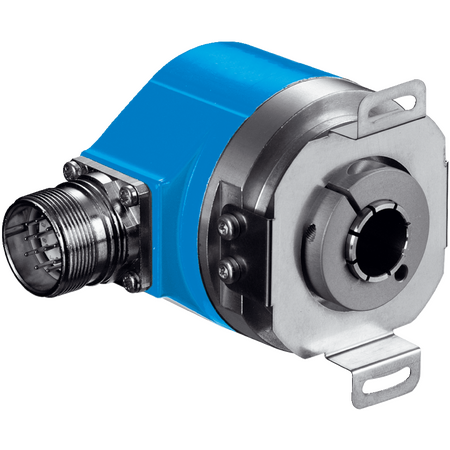

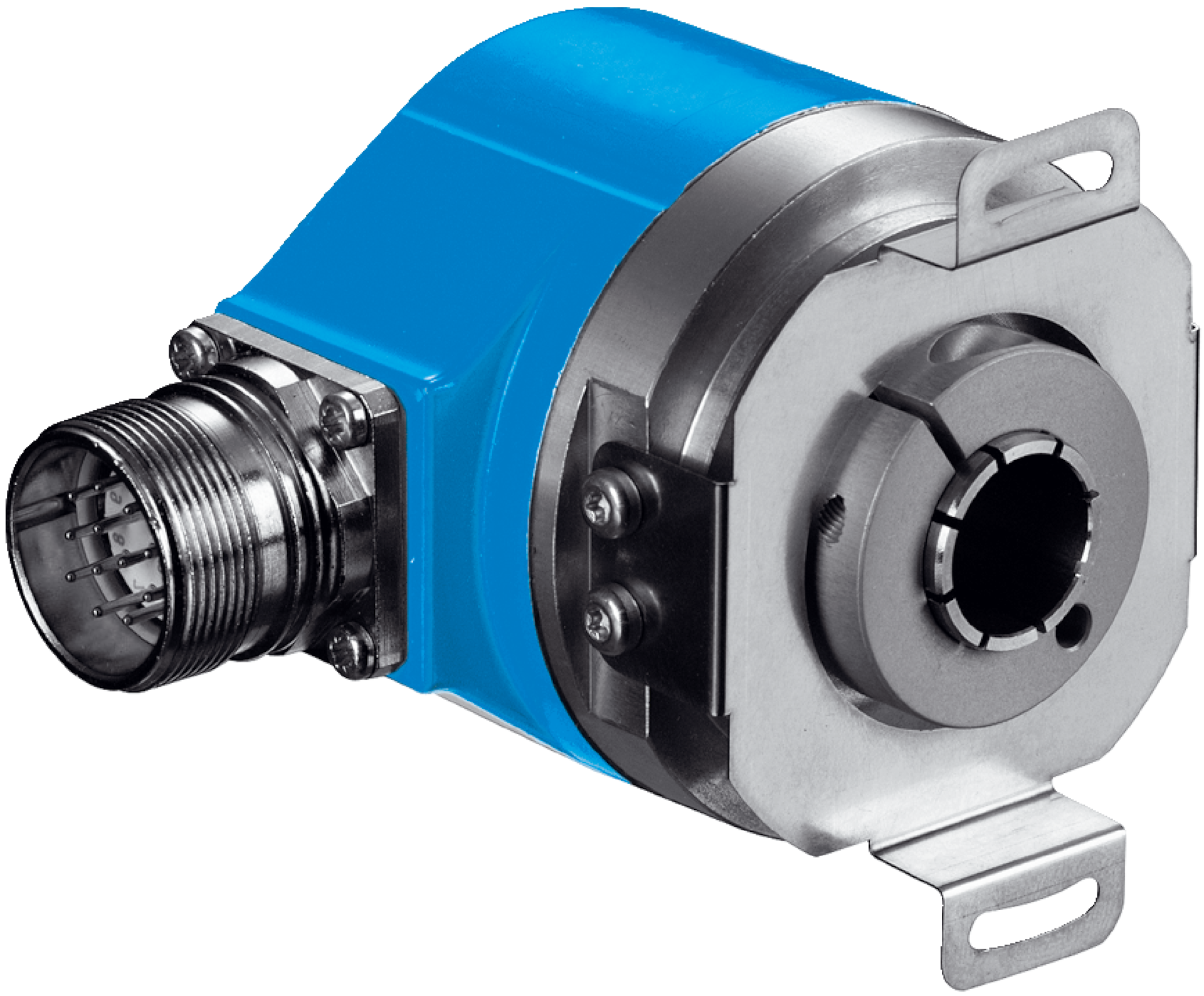

ARS60-ADA00036 | Absolute encoders
The SICK ARS60-ADA00036 is a high-precision absolute encoder featuring a through hollow shaft, SSI communication interface, and robust aluminum housing, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-ADA00036 | Absolute encoders
Brand: SICK
SKU: 1031387
Alternatively Known As: Absolute rotary encoder, SSI absolute encoder, hollow shaft encoder, SICK ARS60 encoder
Technical Specifications
- Number of steps per revolution: 36
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, radial
- Mechanical design: Through hollow shaft with 12 mm diameter
- Housing material: Aluminum die cast
- Start-up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Enclosure rating: IP64
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 36 steps per revolution
- Robust aluminum die cast housing
- Through hollow shaft design with 12 mm diameter
- IP64 rated enclosure for dust and splash protection
- Low start-up and operating torque for minimal mechanical load
- High resistance to shock (50 g) and vibration (20 g)
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (clockwise increasing)
- Long bearing lifetime and high mean time to dangerous failure (300 years)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in machinery
- Safety-related applications requiring precise angular measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (typical 60 mA operating current) minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-ADA00036 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
