ARS60-ADA32767 Absolute encoders

BRAND: SICK
SKU: 1031493
$2,452.20 List price: $3,082.10
+ −
30 Days Return Electricians Unlock Trade Access

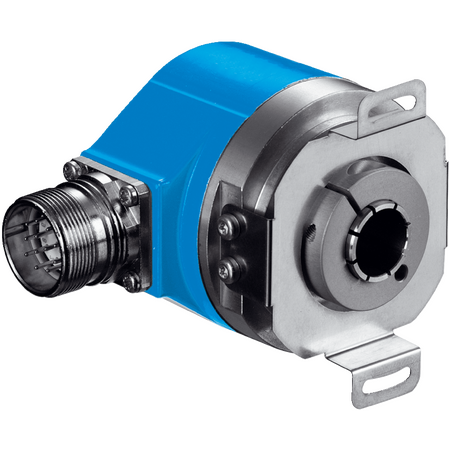

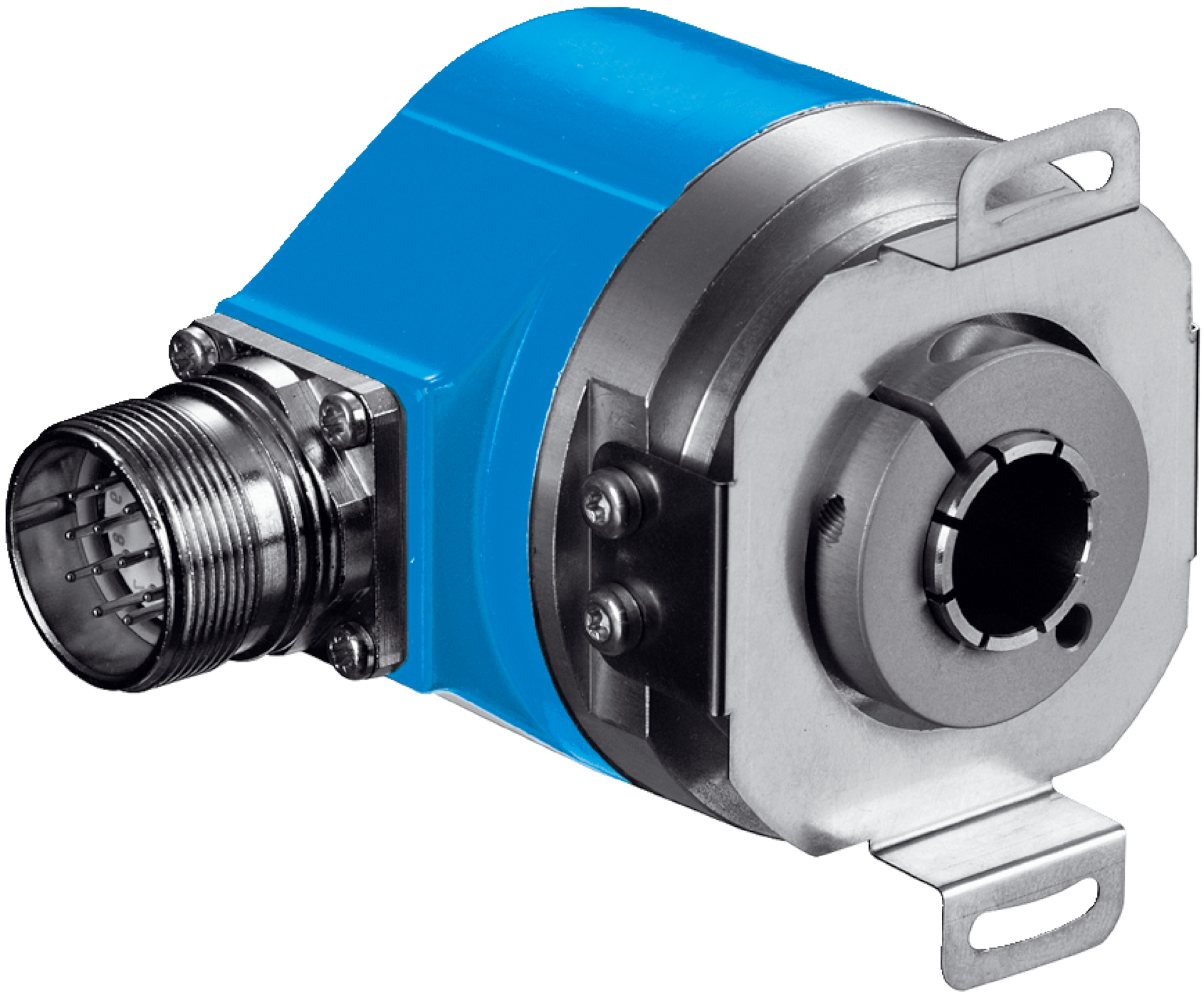

The SICK ARS60-ADA32767 Absolute Encoder offers high precision and reliability with 32,767 steps per revolution, robust aluminum housing

Product Name/Title: ARS60-ADA32767 | Absolute encoders

Brand: SICK

SKU: 1031493

Alternatively Known As: Absolute rotary encoder, high resolution encoder, SSI encoder, hollow shaft encoder, industrial position sensor

Technical Specifications
  • Maximum resolution: 32,767 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI with Gray code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: typically 60 mA
  • Connection type: Male connector, M23, 12-pin, radial
  • Mechanical design: Through hollow shaft with 12 mm diameter
  • Start-up torque: typically 2.2 Ncm
  • Operating torque: typically 1.6 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: up to 3,000 min⁻¹
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Operating temperature range: -20°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Enclosure rating: IP64
  • Shock resistance: 50 g, 11 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with up to 32,767 steps per revolution
  • Through hollow shaft mechanical design with 12 mm shaft diameter
  • Robust aluminum die cast housing with IP64 enclosure rating
  • Low operating and start-up torque for efficient operation
  • SSI communication interface with Gray code output
  • High repeatability with standard deviation of 0.005°
  • Wide operating temperature range from -20°C to +85°C
  • Resistance to shocks up to 50 g and vibration up to 20 g
  • Long bearing lifetime rated at 3.6 x 10^9 revolutions
  • Complies with multiple international certifications including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement and positioning
  • Machine tool feedback
  • Conveyor and material handling systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption with efficient electronics
  • Complies with China RoHS for reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-ADA32767 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
