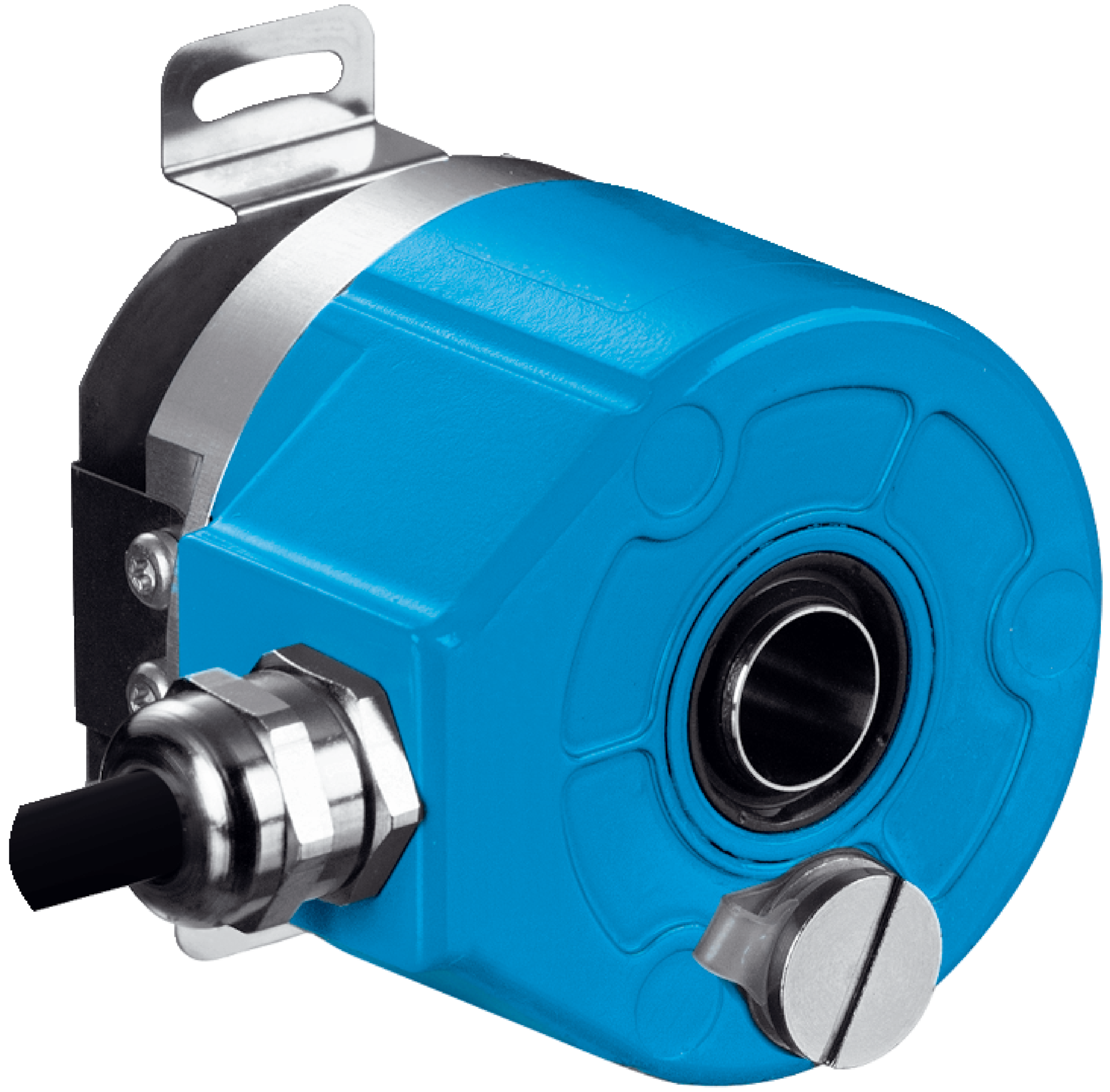

ARS60-ADK32767 Absolute encoders

BRAND: SICK
SKU: 1031494
$2,452.20 List price: $3,082.10
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-ADK32767 Absolute Encoder offers high precision and reliability with 32,767 steps per revolution

Product Name/Title: ARS60-ADK32767 | Absolute encoders

Brand: SICK

SKU: 1031494

Alternatively Known As: Absolute rotary encoder, high resolution encoder, SSI encoder, hollow shaft encoder

Technical Specifications
  • MTTFD: 300 years (EN ISO 13849-1)
  • Number of steps per revolution: 32,767
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: SSI
  • Initialization time: 80 ms
  • Code type: Gray
  • Measured value backlash: 0.005°
  • Response threshold: 0.003°
  • Connection type: Cable, 11-wire, radial, 1.5 m
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 60 mA
  • Mechanical design: Through hollow shaft
  • Shaft diameter: 12 mm
  • Housing material: Aluminum die cast
  • Start up torque: Typically 2.2 Ncm
  • Operating torque: Typically 1.6 Ncm
  • Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
  • Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: ≤ 3,000 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Operating temperature range: -20 °C to +85 °C
  • Storage temperature range: -40 °C to +100 °C
  • EMC: According to EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP64 (IEC 60529)
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 32,767 steps per revolution
  • Through hollow shaft mechanical design with 12 mm shaft diameter
  • Robust aluminum die cast housing
  • IP64 rated enclosure for dust and splash protection
  • Low start-up torque of typically 2.2 Ncm and operating torque of 1.6 Ncm
  • SSI communication interface with Gray code type
  • High repeatability with standard deviation of 0.005°
  • Wide operating temperature range from -20 °C to +85 °C
  • Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement and positioning
  • Machine tool feedback
  • Conveyor and material handling systems
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption electronics contribute to energy efficiency
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK ARS60-ADK32767 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
