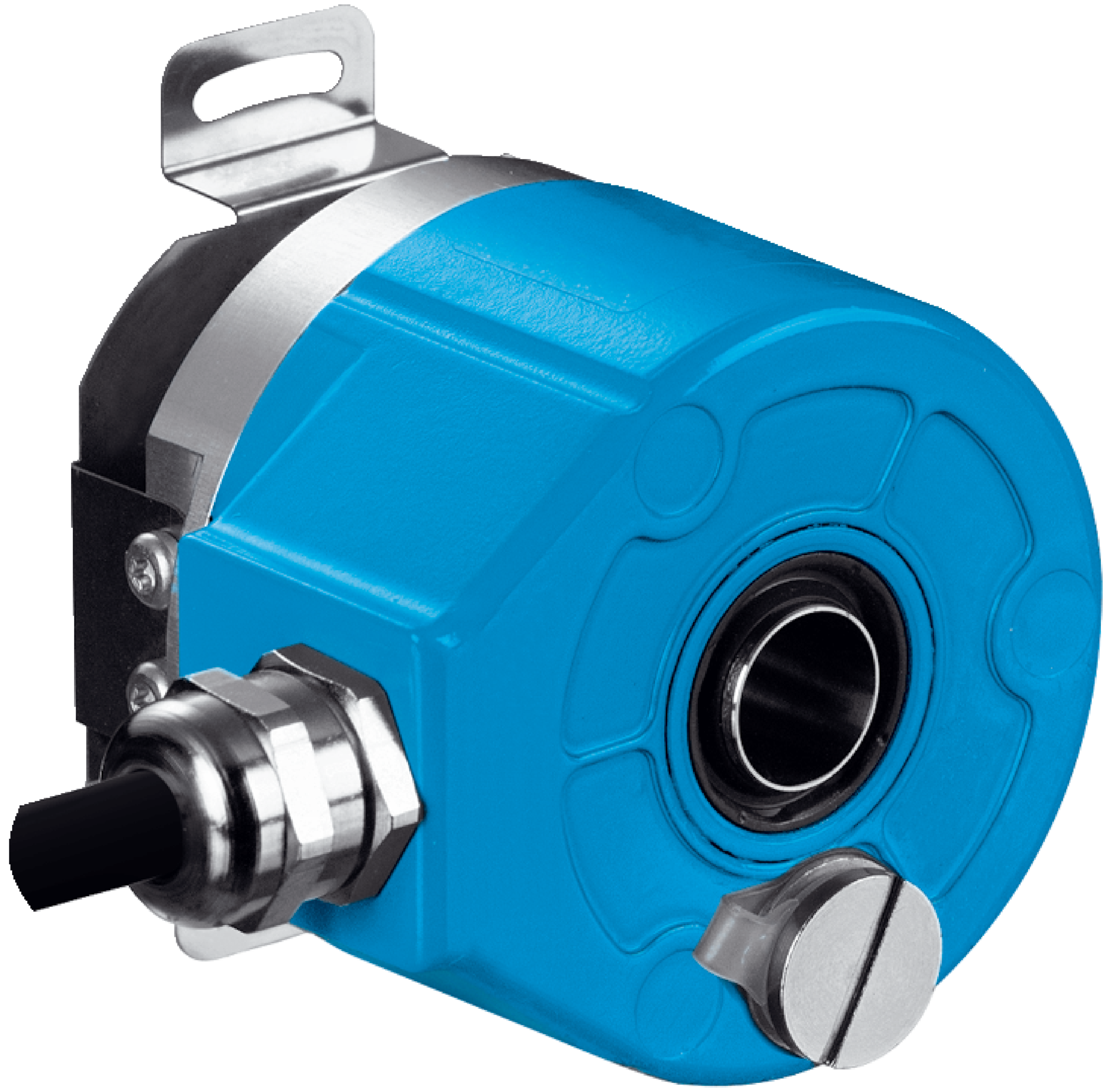

Product Name/Title: ARS60-ADL32768 | Absolute encoders
Brand: SICK
SKU: 1031761
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution shaft encoder, through hollow shaft encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 32,768 (15 bit)
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Code sequence adjustable: CW increasing when viewing clockwise shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Cable, 11-wire, radial, 3 m
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Switching level control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Actuation of set button: ≥ 100 ms
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm
- Shaft characteristics: Front clamp
- Housing material: Aluminum die cast
- Start up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (cable)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum die cast housing with IP64 enclosure rating
- SSI communication interface with Gray code type
- Low measuring step deviation of 0.005° and repeatability standard deviation of 0.005°
- Operating temperature range from –20 °C to +85 °C
- Resistance to shocks up to 50 g and vibration up to 20 g
- Cable connection with 11 wires, 3 m length
- Low operating torque of typically 1.6 Ncm
