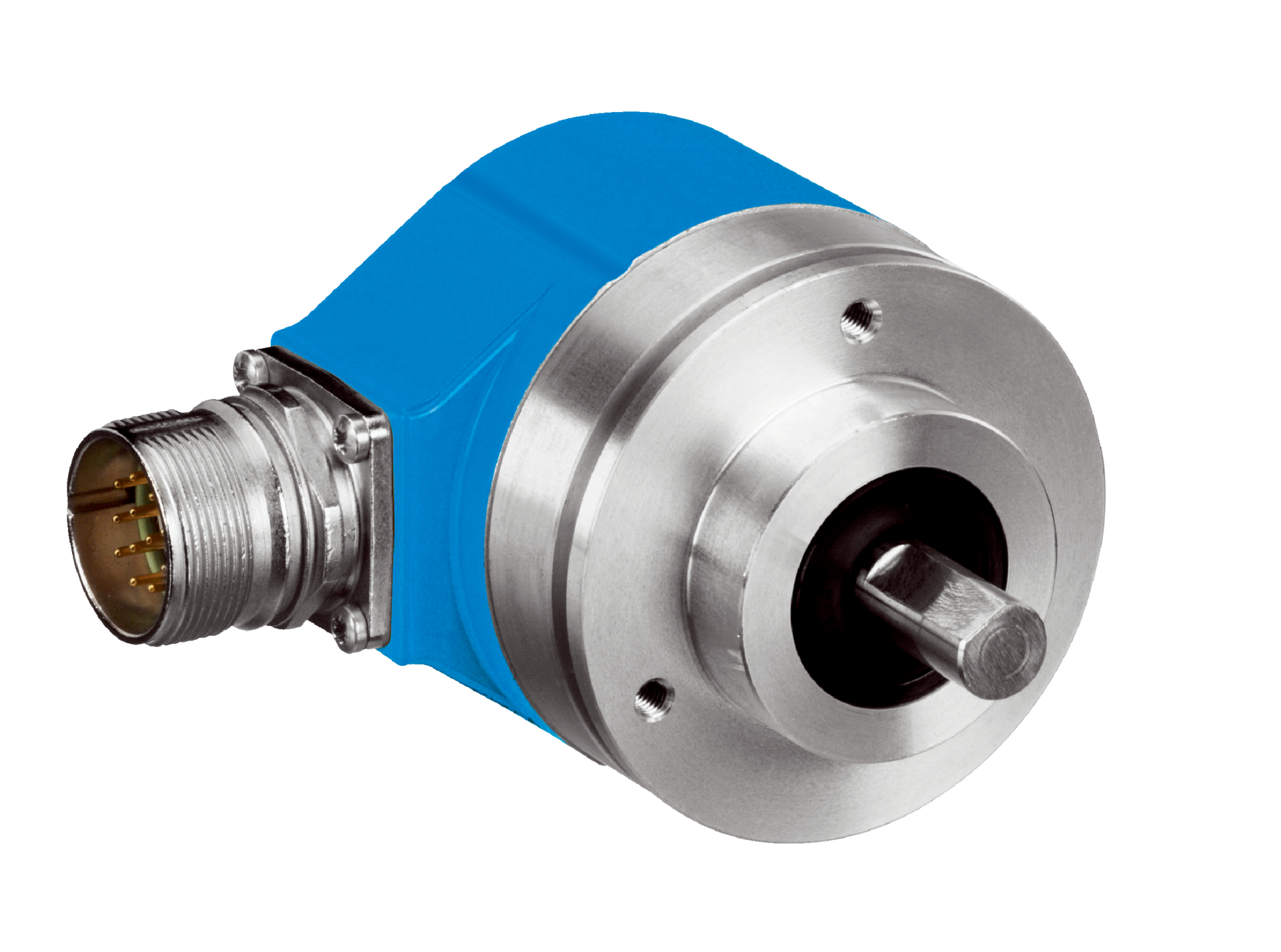

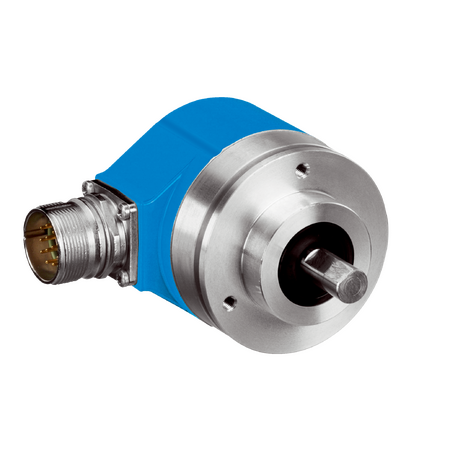

ARS60-B4A01440 | Absolute encoders
The SICK ARS60-B4A01440 absolute encoder offers precise position measurement with 1,440 steps per revolution, robust aluminum housing, and reliable SSI interface, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-B4A01440 | Absolute encoders
Brand: SICK
SKU: 1031534
Alternatively Known As: Absolute rotary encoder, SSI encoder, high resolution encoder, industrial position sensor
Technical Specifications
- Resolution: 1,440 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI with Gray code
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typical 60 mA
- Connection: Male M23, 12-pin radial connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: 0.4 Ncm
- Operating torque: 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,440 steps per revolution
- Robust aluminum die cast housing with IP65 rating
- Solid shaft with flat, 10 mm diameter and 19 mm length
- Low start-up torque (0.4 Ncm) and operating torque (0.3 Ncm)
- High operating speed up to 10,000 min⁻¹ without shaft seal
- Reliable SSI communication interface with Gray code
- Excellent repeatability with standard deviation of 0.005°
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption (typical 60 mA operating current) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-B4A01440 absolute encoder is available for immediate purchase, ideal for precision industrial automation and safety-critical applications.
