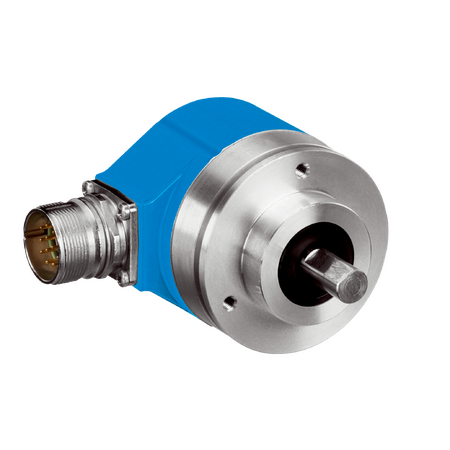

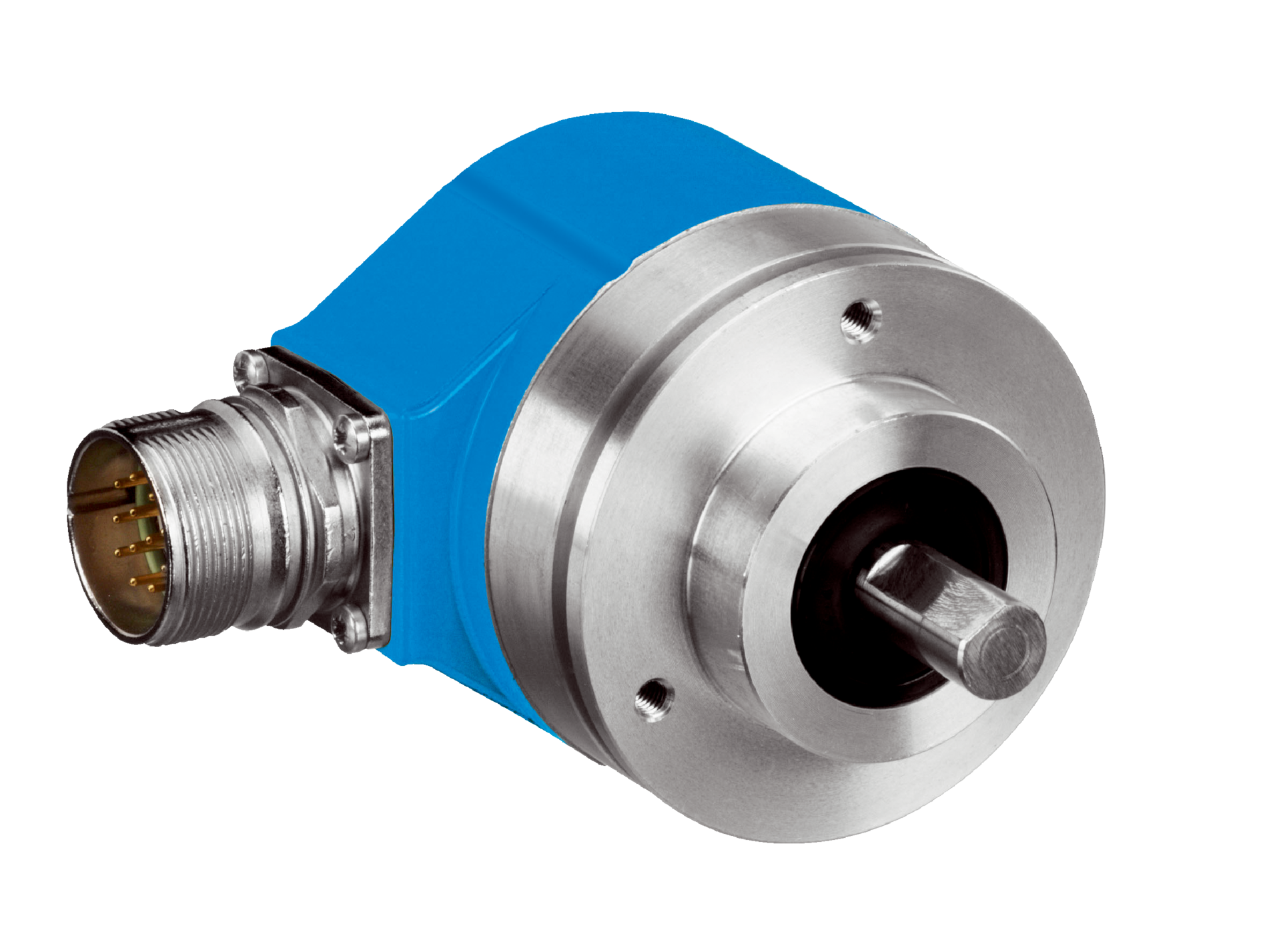

ARS60-F4A01440 | Absolute encoders
The SICK ARS60-F4A01440 Absolute Encoder offers precise position measurement with high resolution and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-F4A01440 | Absolute encoders
Brand: SICK
SKU: 1211196
Alternatively Known As: Absolute rotary encoder, position encoder, industrial encoder, shaft encoder
Technical Specifications
- Number of steps per revolution: 1,440
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start-up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,440 steps per revolution
- Robust aluminum die cast housing with IP65 rating
- Solid shaft with 10 mm diameter and flat for secure mounting
- Low start-up and operating torque for efficient operation
- High reliability with MTTFD of 300 years according to EN ISO 13849-1
- Fast initialization time of 80 ms
- Parallel data communication interface with Gray code
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK ARS60-F4A01440 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
