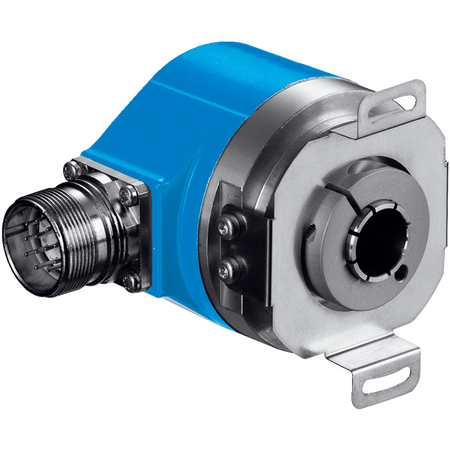

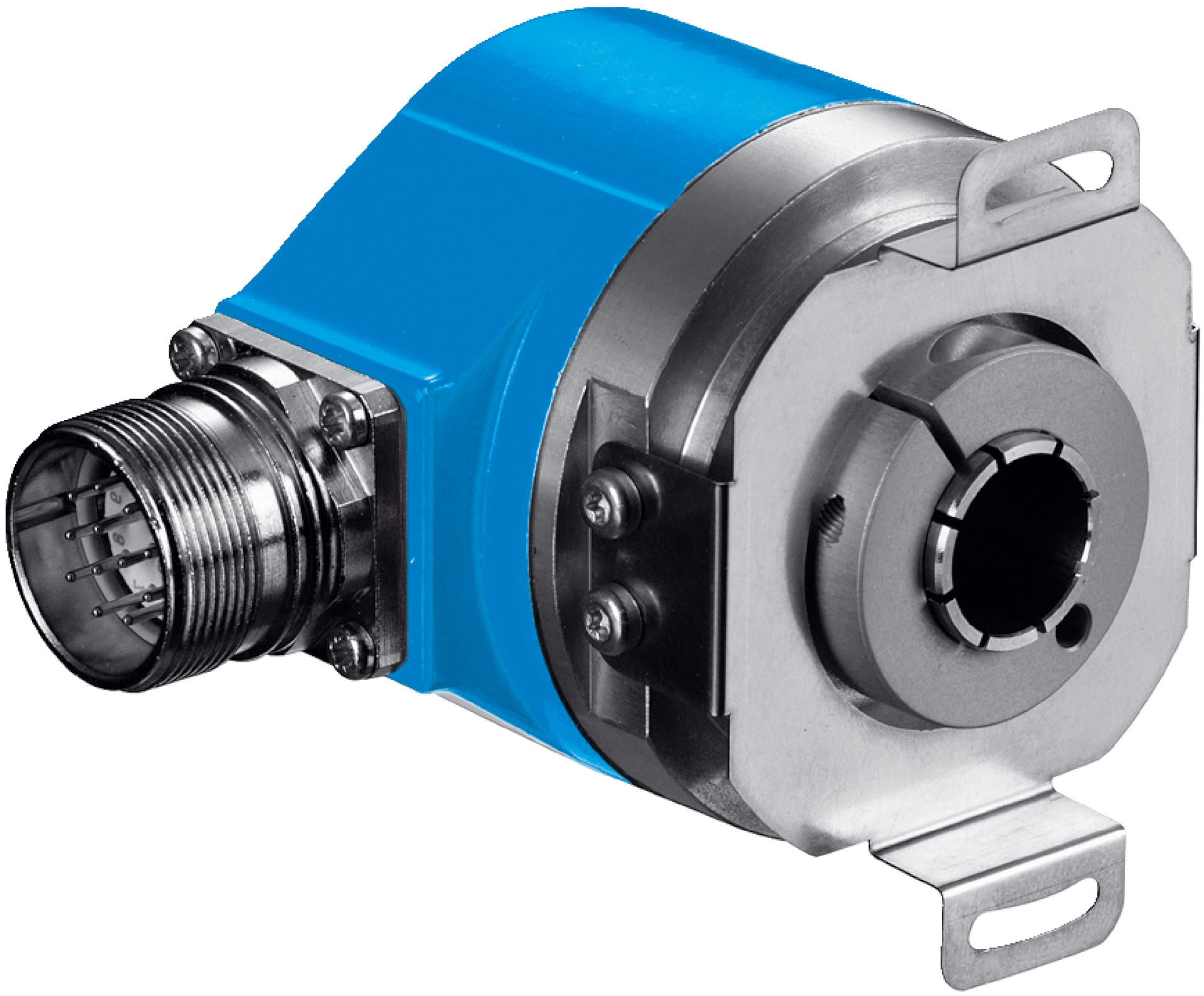

ARS60-FAA02048 Absolute encoders

BRAND: SICK
SKU: 1032803
$2,430.30 List price: $3,054.60
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-FAA02048 Absolute Encoder offers high precision angular measurement with robust construction and advanced safety features

Product Name/Title: ARS60-FAA02048 | Absolute encoders

Brand: SICK

SKU: 1032803

Alternatively Known As: Absolute rotary encoder, ARS60 encoder, SICK absolute position sensor, industrial encoder

Technical Specifications
  • Resolution: 2,048 steps per revolution (11 bit)
  • Measuring step deviation: 0.005°
  • Error limits G: 0.035°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Code type: Gray code
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, radial
  • Mechanical design: Blind hollow shaft with 15 mm diameter
  • Housing material: Aluminum die cast
  • Start-up torque: 0.6 Ncm
  • Operating torque: 0.4 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: Up to 3,000 min⁻¹
  • Bearing lifetime: 3.6 x 10^9 revolutions
  • Operating temperature range: -20 °C to +85 °C
  • Storage temperature range: -40 °C to +100 °C
  • Enclosure rating: IP65
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 2,048 steps per revolution (11 bit)
  • Blind hollow shaft mechanical design with 15 mm shaft diameter
  • Robust aluminum die cast housing with IP65 enclosure rating
  • Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
  • High reliability with MTTFD of 300 years according to EN ISO 13849-1
  • Operating temperature range from -20 °C to +85 °C
  • Resistance to shocks (50 g, 11 ms) and vibration (20 g, 10 Hz to 2,000 Hz)
  • Parallel data world communication interface with Gray code
  • Male connector M23, 21-pin radial connection
  • Certified with EU, UK, ACMA, China RoHS, and cULus declarations
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
  • Industrial automation for precise position measurement
  • Robotics requiring accurate angular feedback
  • Machine tools and manufacturing equipment
  • Safety-related systems in machinery
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing electronic waste
  • Low power consumption with typical operating current of 90 mA
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-FAA02048 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
