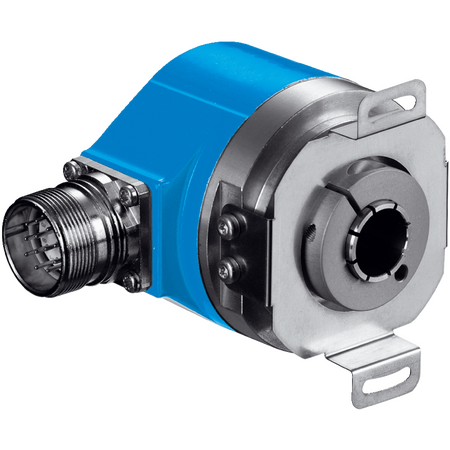

ARS60-FAA05760 | Absolute encoders

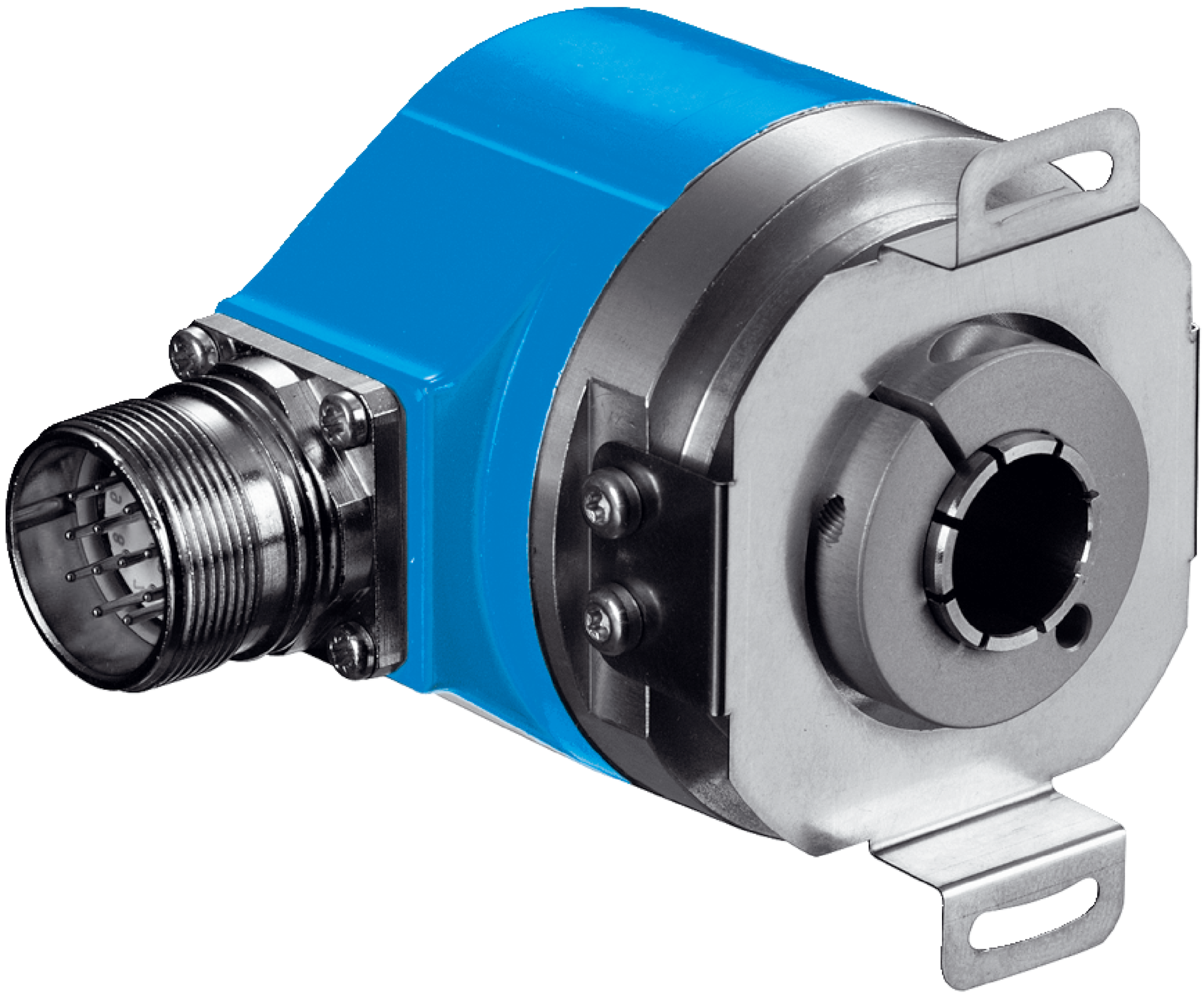

The SICK ARS60-FAA05760 Absolute Encoder offers high precision and reliability for industrial automation applications, featuring a robust design and multiple certifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-FAA05760 | Absolute encoders
Brand: SICK
SKU: 1031612
Alternatively Known As: Absolute rotary encoder, high resolution encoder, industrial position encoder, SICK ARS60 encoder
Technical Specifications
- Maximum resolution: 5,760 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray code
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Blind hollow shaft with front clamp
- Shaft diameter: 15 mm
- Start-up torque: 0.6 Ncm
- Operating torque: 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 5,760 steps per revolution
- Blind hollow shaft mechanical design with 15 mm shaft diameter
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
- High repeatability with standard deviation of 0.005°
- Parallel data world communication interface with Gray code
- Operating temperature range from -20 °C to +85 °C
- Certified with multiple international conformity declarations including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Safety-related monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China RoHS supports reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-FAA05760 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and safety applications.
