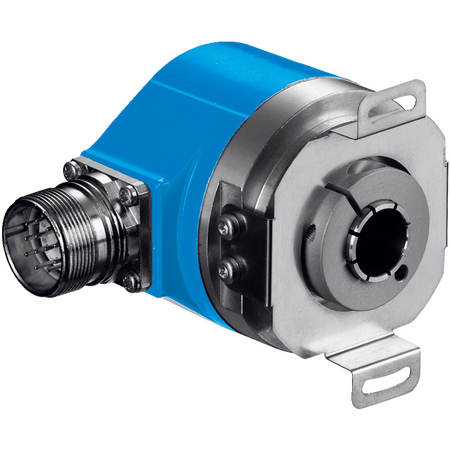

ARS60-FDA03600 Absolute encoders

BRAND: SICK
SKU: 1031601
$2,524.20 List price: $3,172.70
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-FDA03600 Absolute Encoder offers high precision position feedback with 3,600 steps per revolution, robust construction

Product Name/Title: ARS60-FDA03600 | Absolute encoders

Brand: SICK

SKU: 1031601

Alternatively Known As: Absolute rotary encoder, high resolution encoder, industrial position encoder, SICK ARS60 encoder

Technical Specifications
  • Resolution: 3,600 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation: 0.005°
  • Communication interface: Parallel data world
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, radial
  • Shaft diameter: 12 mm with front clamp
  • Start-up torque: 2.2 Ncm
  • Operating torque: 1.6 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: up to 3,000 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Operating temperature: -20°C to +85°C
  • Storage temperature: -40°C to +100°C
  • Enclosure rating: IP64
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 3,600 steps per revolution
  • Gray code type with adjustable code sequence parameter
  • Robust aluminum die cast housing with IP64 rating
  • Through hollow shaft design with 12 mm diameter
  • Low start-up torque of 2.2 Ncm and operating torque of 1.6 Ncm
  • Operating temperature range from -20°C to +85°C
  • High resistance to shocks (50 g) and vibration (20 g)
  • Male connector M23, 21-pin radial connection
  • Fast initialization time of 80 ms
  • Compliance with multiple international certifications including EU, UK, ACMA, China RoHS, and cULus
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement in manufacturing
  • Position and speed feedback in machinery
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Energy-efficient operation with low current consumption (typ. 90 mA)
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-FDA03600 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
