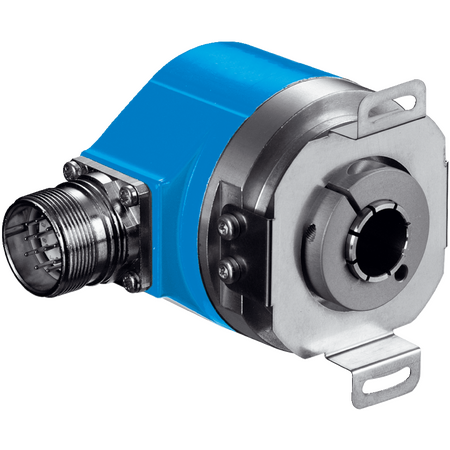

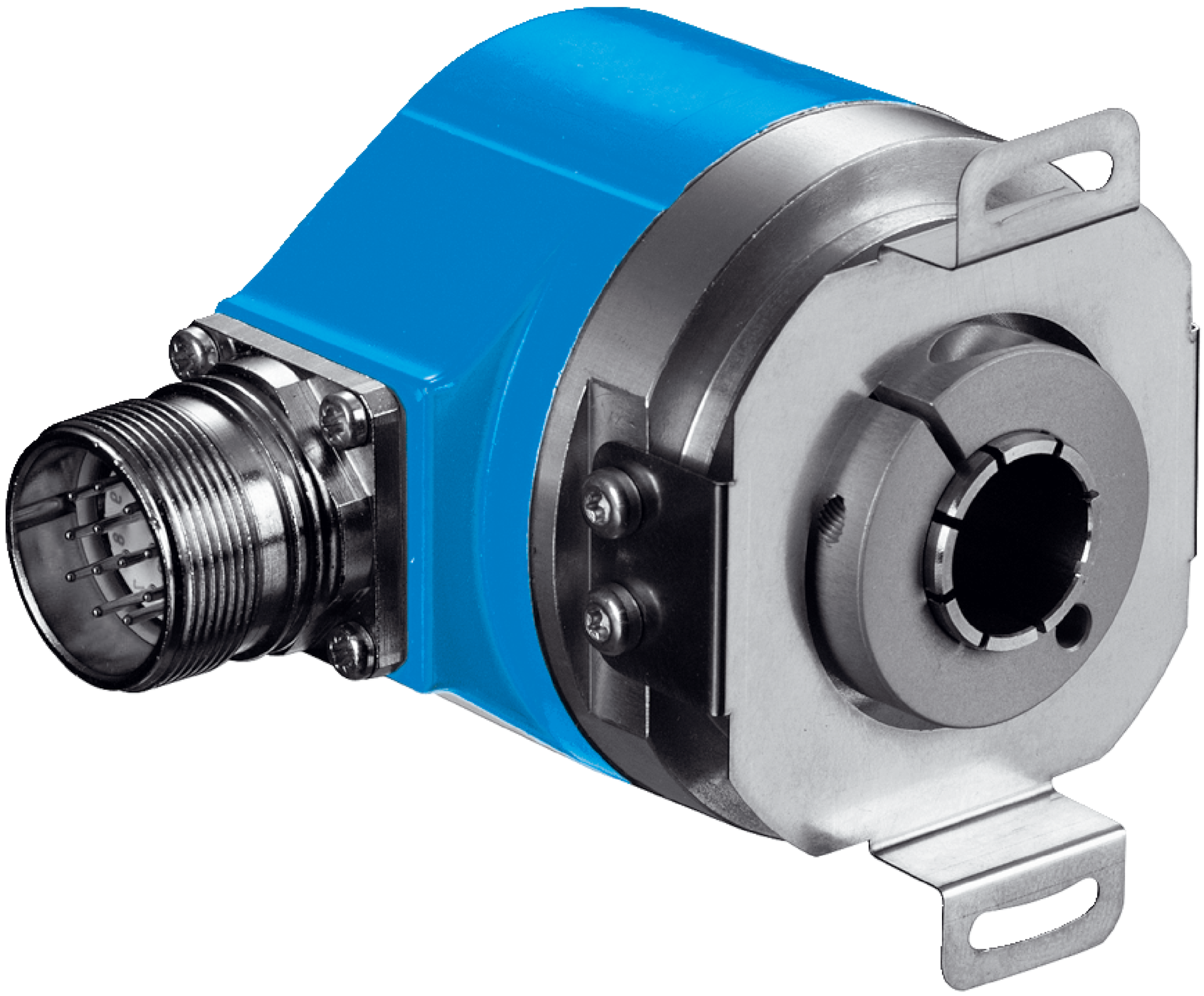

ARS60-FDA32768 | Absolute encoders
The SICK ARS60-FDA32768 Absolute Encoder offers high precision and reliability for industrial automation applications, featuring a robust design and advanced performance specifications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-FDA32768 | Absolute encoders
Brand: SICK
SKU: 1031647
Alternatively Known As: Absolute rotary encoder, high resolution encoder, hollow shaft encoder, industrial position sensor
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 32,768 (15 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Through hollow shaft with 12 mm diameter
- Start up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP64 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum die cast housing
- IP64 rated enclosure for protection against dust and water splashes
- Operating temperature range from -20°C to +85°C
- Low start-up torque of typically 2.2 Ncm and operating torque of 1.6 Ncm
- High resistance to shocks (50 g, 11 ms) and vibration (20 g, 10 Hz to 2000 Hz)
- Parallel data world communication interface with Gray code
- Fast initialization time of 80 ms
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-FDA32768 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
