ARS60-FDK02000 Absolute encoders

BRAND: SICK
SKU: 1035861
$2,524.20 List price: $3,172.70
+ −
30 Days Return Electricians Unlock Trade Access

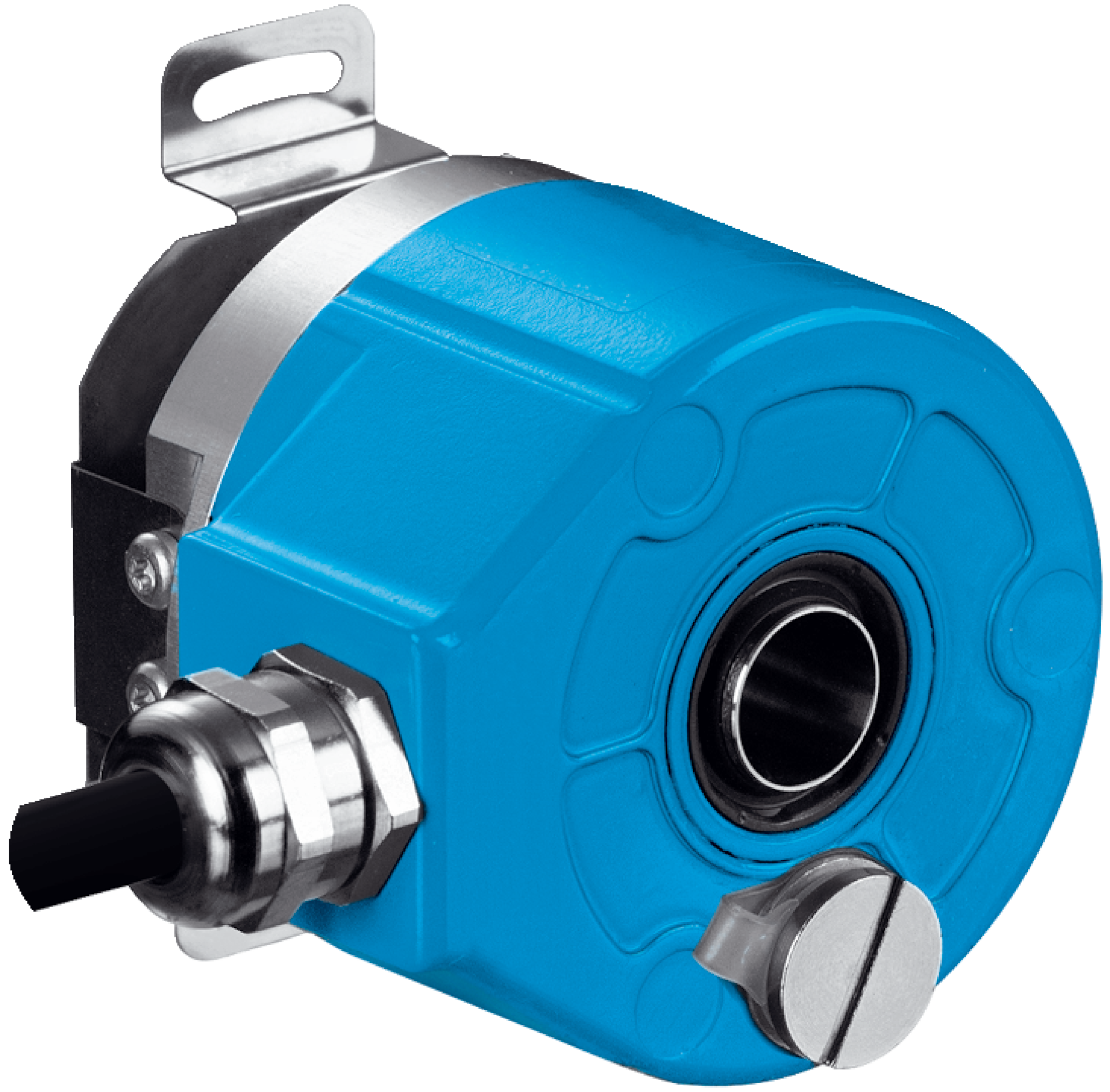

The SICK ARS60-FDK02000 Absolute Encoder offers precise position measurement with 2,000 steps per revolution, robust mechanical design

Product Name/Title: ARS60-FDK02000 | Absolute encoders

Brand: SICK

SKU: 1035861

Alternatively Known As: Absolute rotary encoder, high resolution encoder, hollow shaft encoder, industrial position sensor

Technical Specifications
  • Resolution: 2,000 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Initialization time: 80 ms
  • Supply voltage: 10 to 32 V
  • Operating current: Typical 90 mA
  • Connection type: 22-wire cable, radial, 1.5 m
  • Mechanical design: Through hollow shaft with 12 mm diameter
  • Housing material: Aluminum die cast
  • Start-up torque: Typical 2.2 Ncm
  • Operating torque: Typical 1.6 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: Up to 3,000 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Enclosure rating: IP64
  • Operating temperature range: -20°C to +85°C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 2,000 steps per revolution
  • Gray code type with adjustable code sequence parameter
  • Through hollow shaft mechanical design with 12 mm shaft diameter
  • Robust aluminum die cast housing with IP64 enclosure rating
  • Low start-up torque (2.2 Ncm) and operating torque (1.6 Ncm)
  • High resistance to shocks (50 g) and vibration (20 g)
  • Operating temperature range from -20°C to +85°C
  • Cable connection with 22 wires, 1.5 m length
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper mechanical and electrical integration and compliance with safety standards.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Machine tool positioning
  • Safety-related monitoring and control
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption with typical operating current of 90 mA
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK ARS60-FDK02000 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
