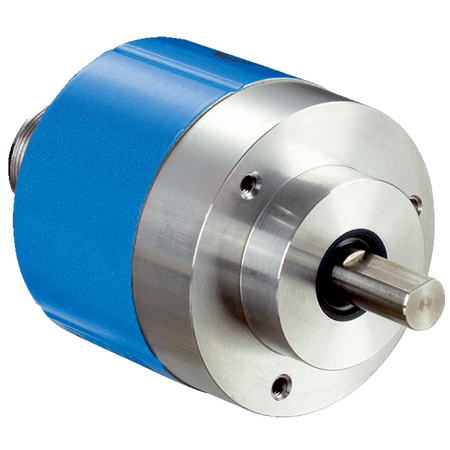

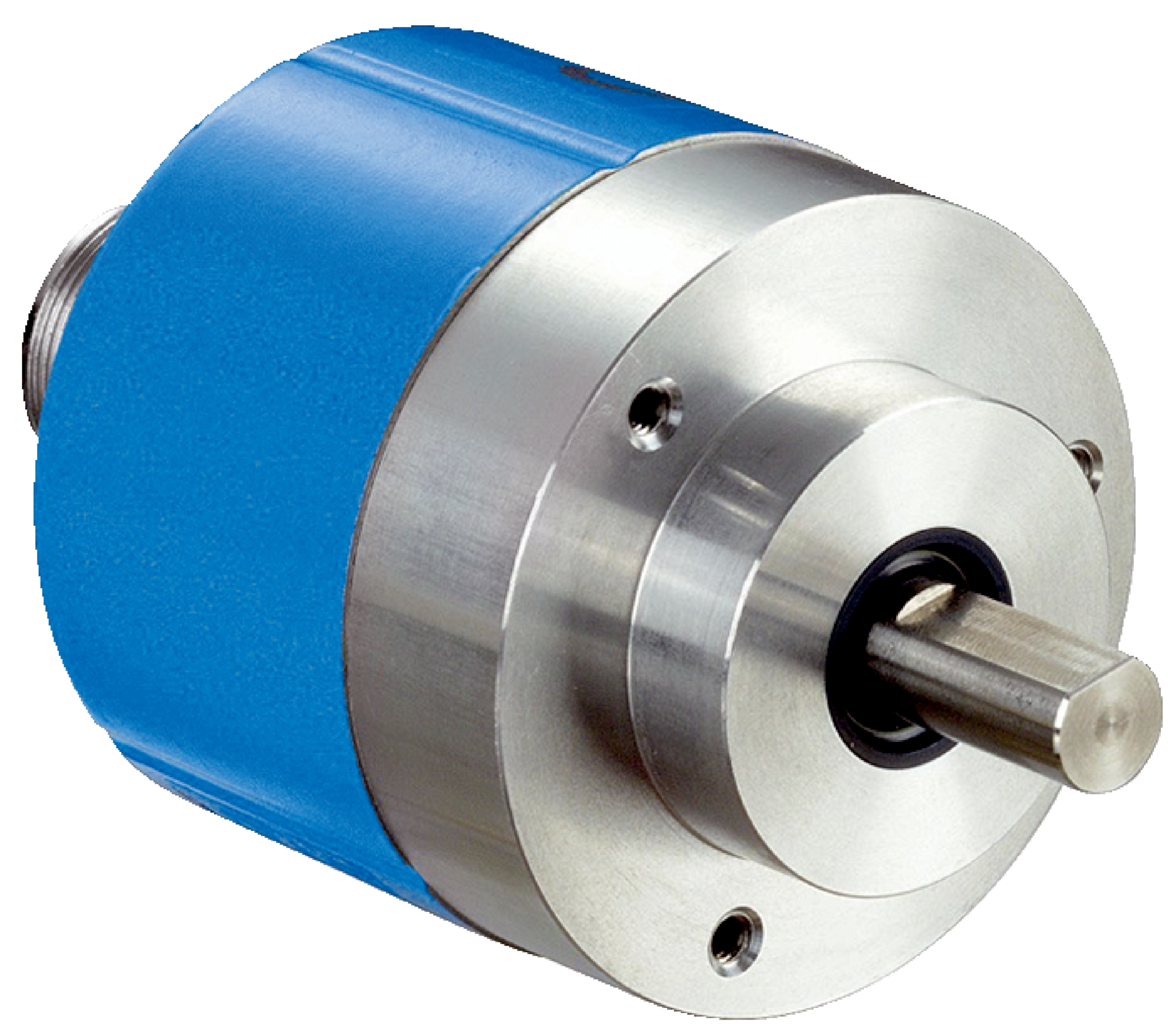

ARS60-G4B00720 | Absolute encoders
The SICK ARS60-G4B00720 Absolute Encoder offers precise position measurement with high resolution and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-G4B00720 | Absolute encoders
Brand: SICK
SKU: 1033167
Alternatively Known As: Rotary encoder, Absolute rotary encoder, Industrial position sensor, SICK encoder ARS60
Technical Specifications
- Maximum resolution: 720 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray, trimmed
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 720 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Low start-up and operating torque
- High operating speed up to 10,000 min⁻¹ without shaft seal
- Excellent repeatability with standard deviation of 0.005°
- Parallel data world communication interface
- Gray code type with adjustable code sequence parameter
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Position and speed measurement in machinery
- Safety-related monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK ARS60-G4B00720 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
