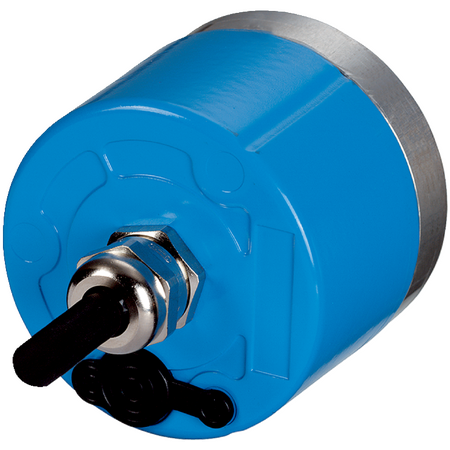

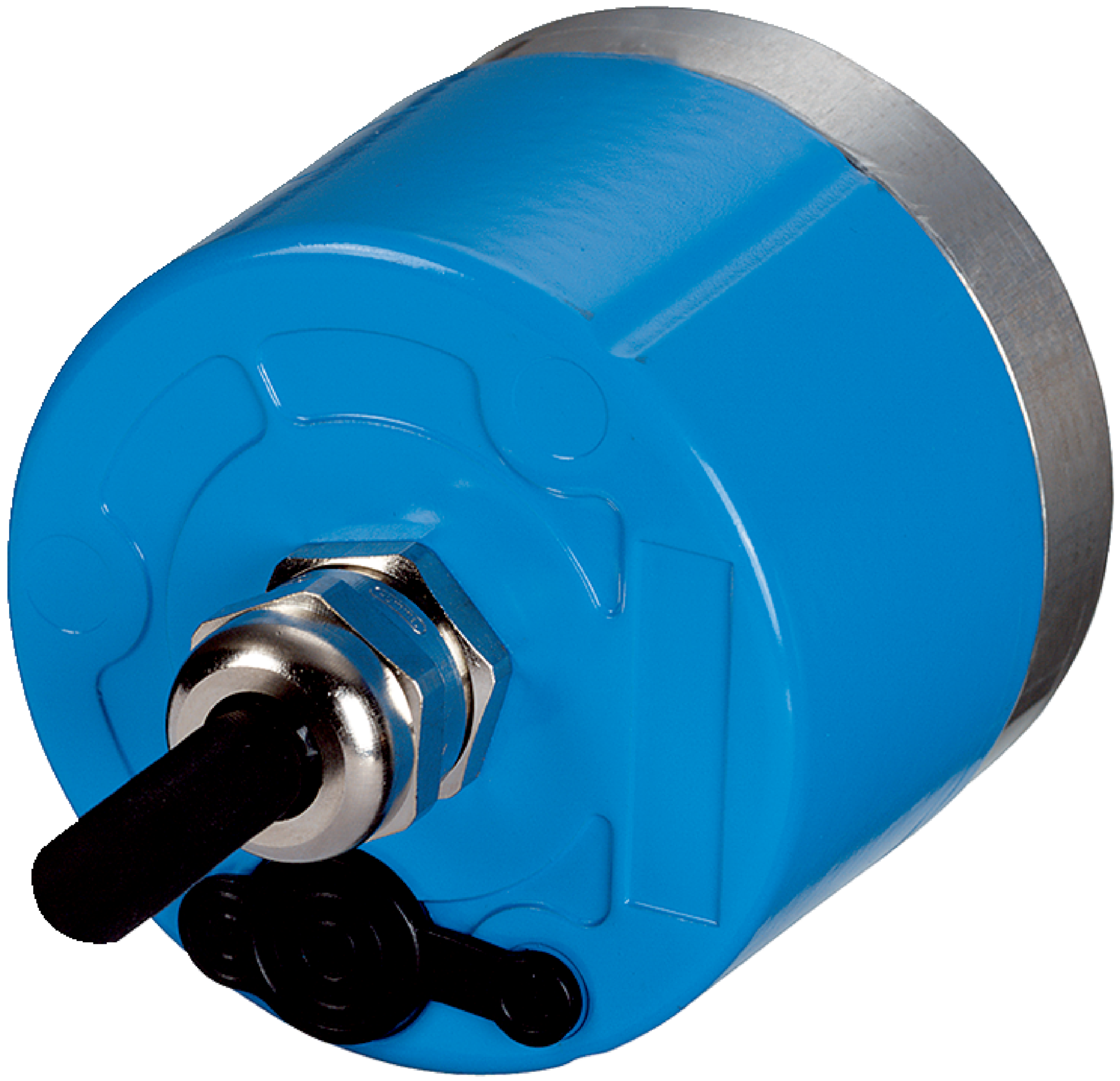

ARS60-G4T00360 | Absolute encoders

BRAND: SICK
SKU: 1209127
$2,401.00 List price: $3,017.90
+ −
30 Days Return Delivery Options
The SICK ARS60-G4T00360 Absolute Encoder offers precise position measurement with high resolution and robust design, suitable for demanding industrial applications.

Product Name/Title: ARS60-G4T00360 | Absolute encoders

Brand: SICK

SKU: 1209127

Alternatively Known As: Absolute rotary encoder, position encoder, industrial encoder, shaft encoder

Technical Specifications
  • Maximum resolution: 360 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation: 0.005°
  • Communication interface: Parallel data world
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 10 mm with flat
  • Start-up torque: Typically 0.4 Ncm
  • Operating torque: Typically 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP66 (IEC 60529)
  • Operating temperature range: -20°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 100mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 360 steps per revolution
  • Solid shaft with face mount flange design
  • Robust aluminum die cast housing
  • IP66 rated enclosure for dust and water protection
  • Operating temperature range from -20°C to +85°C
  • Low start-up and operating torque
  • High resistance to shocks and vibrations
  • Cable connection with 22 wires, 5 meters axial length
  • Fast initialization time of 80 ms
  • Gray code type with adjustable code sequence parameter
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure safety and optimal performance.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Position and speed measurement in machinery
  • Safety-related monitoring in manufacturing processes
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Energy-efficient operation with low current consumption
  • Complies with China RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-G4T00360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
