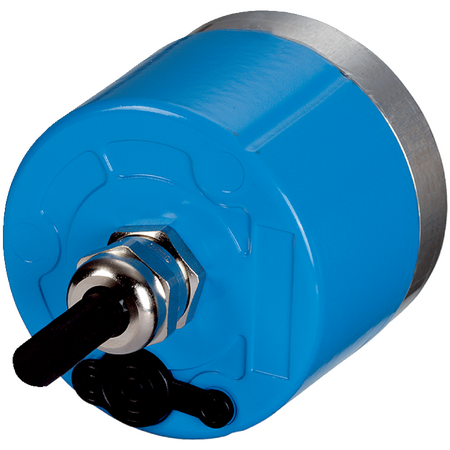

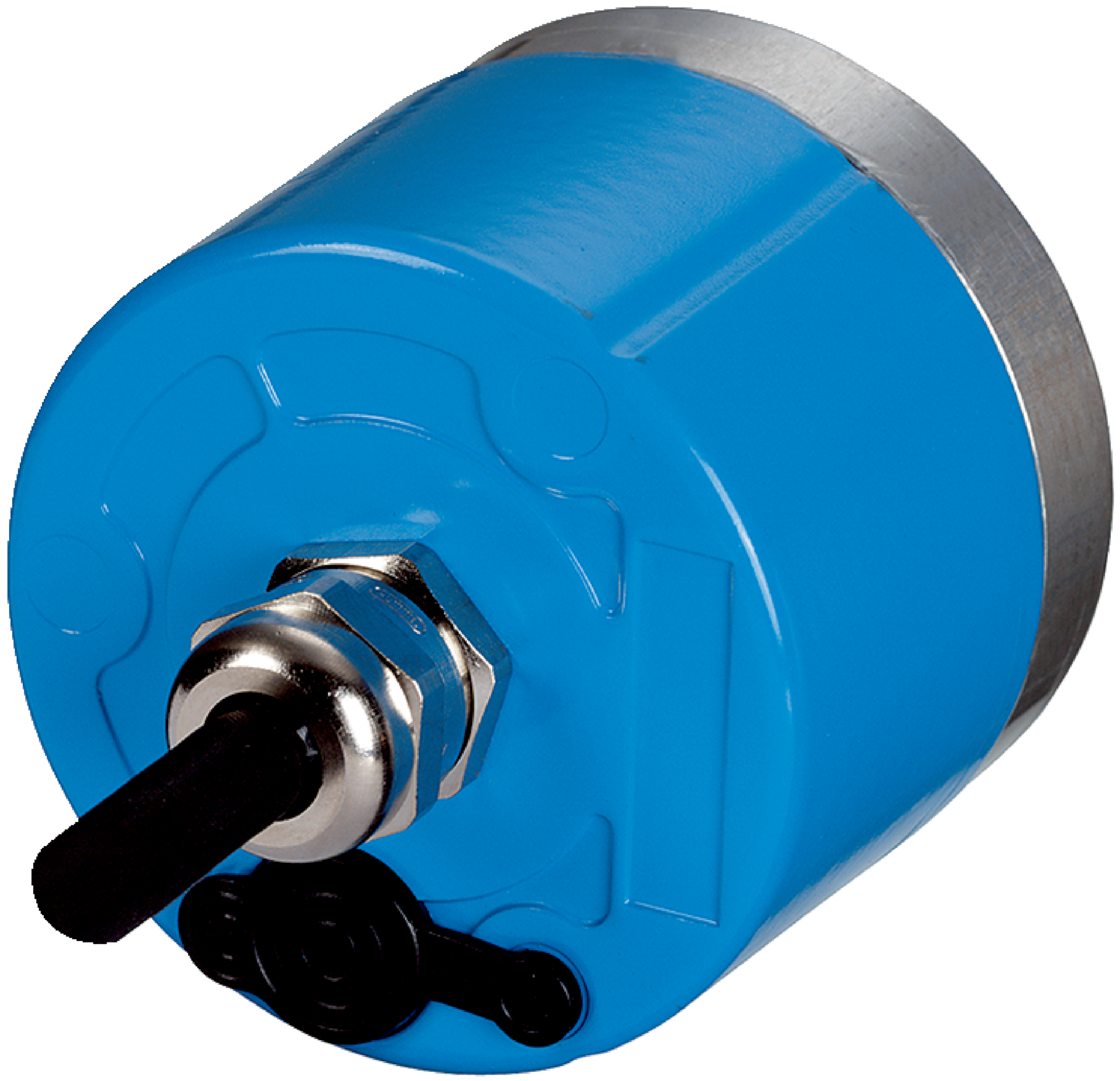

ARS60-GAR00360 | Absolute encoders
The SICK ARS60-GAR00360 Absolute Encoder offers precise angular measurement with high reliability and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-GAR00360 | Absolute encoders
Brand: SICK
SKU: 1031655
Alternatively Known As: Rotary encoder, Absolute rotary encoder, Angular position sensor, SICK ARS60 encoder
Technical Specifications
- Max resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation: 0.005°
- Communication interface: Parallel data world
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Shaft diameter: 15 mm
- Start-up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP66
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Gray code type with trimmed code
- Blind hollow shaft mechanical design with front clamp
- Robust aluminum die cast housing
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low start-up and operating torque
- High resistance to shocks (50 g) and vibration (20 g)
- Cable connection with 22 wires, 1.5 m length
- Fast initialization time of 80 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and machinery positioning
- Safety-related motion monitoring
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK ARS60-GAR00360 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
