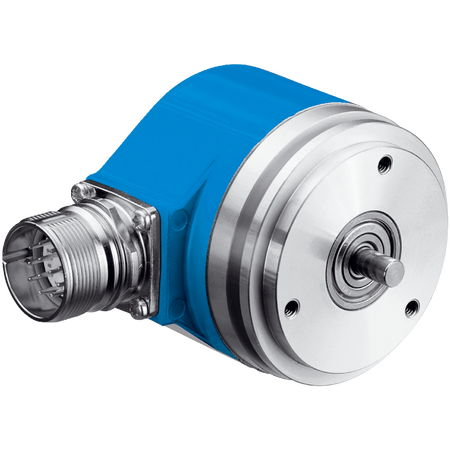

ARS60-H1A01024 | Absolute encoders
The SICK ARS60-H1A01024 Absolute Encoder offers precise position measurement with high resolution and robust design, suitable for demanding industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-H1A01024 | Absolute encoders
Brand: SICK
SKU: 1209290
Alternatively Known As: Absolute rotary encoder, position encoder, shaft encoder, industrial encoder
Technical Specifications
- Resolution: 1,024 steps per revolution (10 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Start-up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature range: -20 °C to +85 °C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque (0.25 Ncm) and operating torque (0.2 Ncm)
- High operating speed up to 10,000 min⁻¹ without shaft seal
- Excellent repeatability with standard deviation of 0.005°
- Parallel data world communication interface with binary code
- Wide operating temperature range from -20 °C to +85 °C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption with typical operating current of 90 mA
Warranty Information
Warranty details available upon request from the manufacturer or authorized distributor.
Available Now
The SICK ARS60-H1A01024 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precise position measurement applications.
