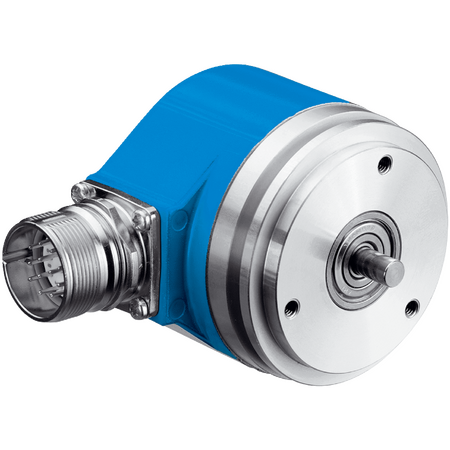

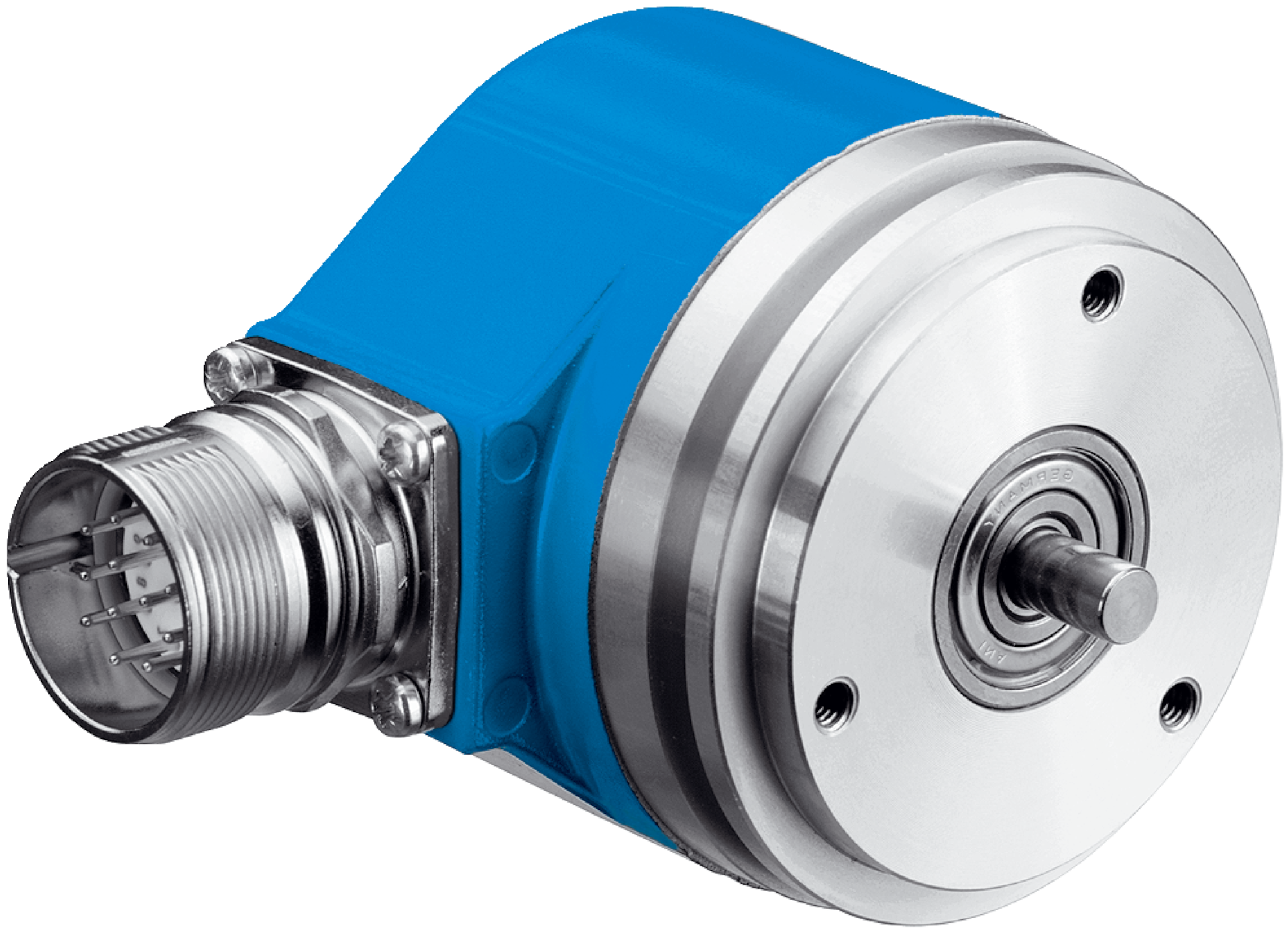

Product Name/Title: ARS60-H1A32768 | Absolute encoders
Brand: SICK
SKU: 1031717
Alternatively Known As: Absolute rotary encoder, high resolution encoder, shaft encoder, position encoder
Technical Specifications
- Resolution: 32,768 steps per revolution (15 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Binary with adjustable code sequence parameter
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male M23, 21-pin radial connector
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 32,768 steps per revolution (15 bit)
- Solid shaft with servo flange and 6 mm diameter
- Robust aluminum die cast housing with IP65 rating
- Low operating torque of typically 0.2 Ncm
- Fast initialization time of 80 ms
- Male M23 21-pin radial connector for reliable connection
- Wide operating temperature range from -20°C to +85°C
- High resistance to shock (50 g) and vibration (20 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft angle detection
- Machine tools requiring high-resolution feedback
- Servo motor feedback systems
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption with typical operating current of 90 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
