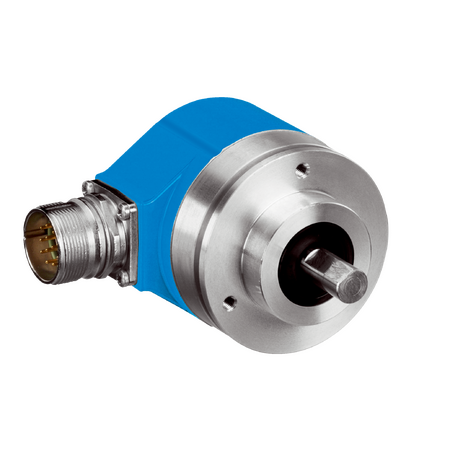

ARS60-H4A18000 Absolute encoders

BRAND: SICK
SKU: 1212904
$2,233.00 List price: $2,806.60
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-H4A18000 Absolute Encoder offers high precision with 18,000 steps per revolution, robust construction

Product Name/Title: ARS60-H4A18000 | Absolute encoders

Brand: SICK

SKU: 1212904

Alternatively Known As: Absolute rotary encoder, high resolution encoder, industrial position encoder, SICK ARS60 encoder

Technical Specifications
  • Resolution: 18,000 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Initialization time: 80 ms
  • Code type: Binary
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, radial
  • Shaft diameter: 10 mm with flat
  • Start-up torque: Typically 0.4 Ncm
  • Operating torque: Typically 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Moment of inertia of rotor: 54 gcm²
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Operating temperature range: -20°C to +85°C
  • Enclosure rating: IP65
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 18,000 steps per revolution
  • Solid shaft with face mount flange design
  • Robust aluminum die cast housing
  • IP65 rated enclosure for dust and water protection
  • Low start-up and operating torque
  • High mechanical durability with bearing lifetime of 3.6 billion revolutions
  • Fast initialization time of 80 ms
  • Parallel data world communication interface
  • Wide operating temperature range from -20°C to +85°C
  • Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety compliance.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement and positioning
  • Machine tool feedback
  • Conveyor and material handling systems
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing electronic waste
  • Energy-efficient operation with low operating current
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-H4A18000 Absolute Encoder is available for immediate purchase, ideal for high precision industrial automation and control applications.
