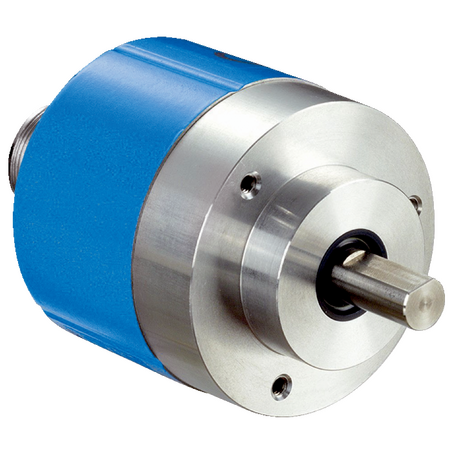

ARS60-H4B04096 Absolute encoders

BRAND: SICK
SKU: 1035268
$2,339.40 List price: $2,940.40
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-H4B04096 is a high-precision absolute encoder offering 4096 steps per revolution, robust aluminum housing, and IP65 protection

Product Name/Title: ARS60-H4B04096 | Absolute encoders

Brand: SICK

SKU: 1035268

Alternatively Known As: Absolute rotary encoder, high resolution encoder, industrial position encoder, SICK ARS60 encoder

Technical Specifications
  • Resolution: 4,096 steps per revolution (12 bit)
  • Measuring step deviation: 0.005°
  • Error limits G: 0.035°
  • Repeatability standard deviation: 0.005°
  • Communication interface: Parallel data world
  • Code type: Binary
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, axial
  • Mechanical design: Solid shaft, face mount flange
  • Shaft diameter: 10 mm with flat
  • Start-up torque: 0.4 Ncm
  • Operating torque: 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Enclosure rating: IP65
  • Operating temperature range: -20°C to +85°C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 96mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 4,096 steps per revolution (12 bit)
  • Solid shaft with 10 mm diameter and flat for secure mounting
  • Robust aluminum die cast housing with IP65 protection
  • Low start-up torque (0.4 Ncm) and operating torque (0.3 Ncm)
  • Wide operating temperature range from -20°C to +85°C
  • High resistance to shock (50 g) and vibration (20 g)
  • Fast initialization time of 80 ms
  • Parallel data communication interface with binary code
  • Long bearing lifetime of 3.6 billion revolutions
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Machine tool positioning
  • Conveyor and material handling systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Energy-efficient operation with low current consumption (typ. 90 mA)
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-H4B04096 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
