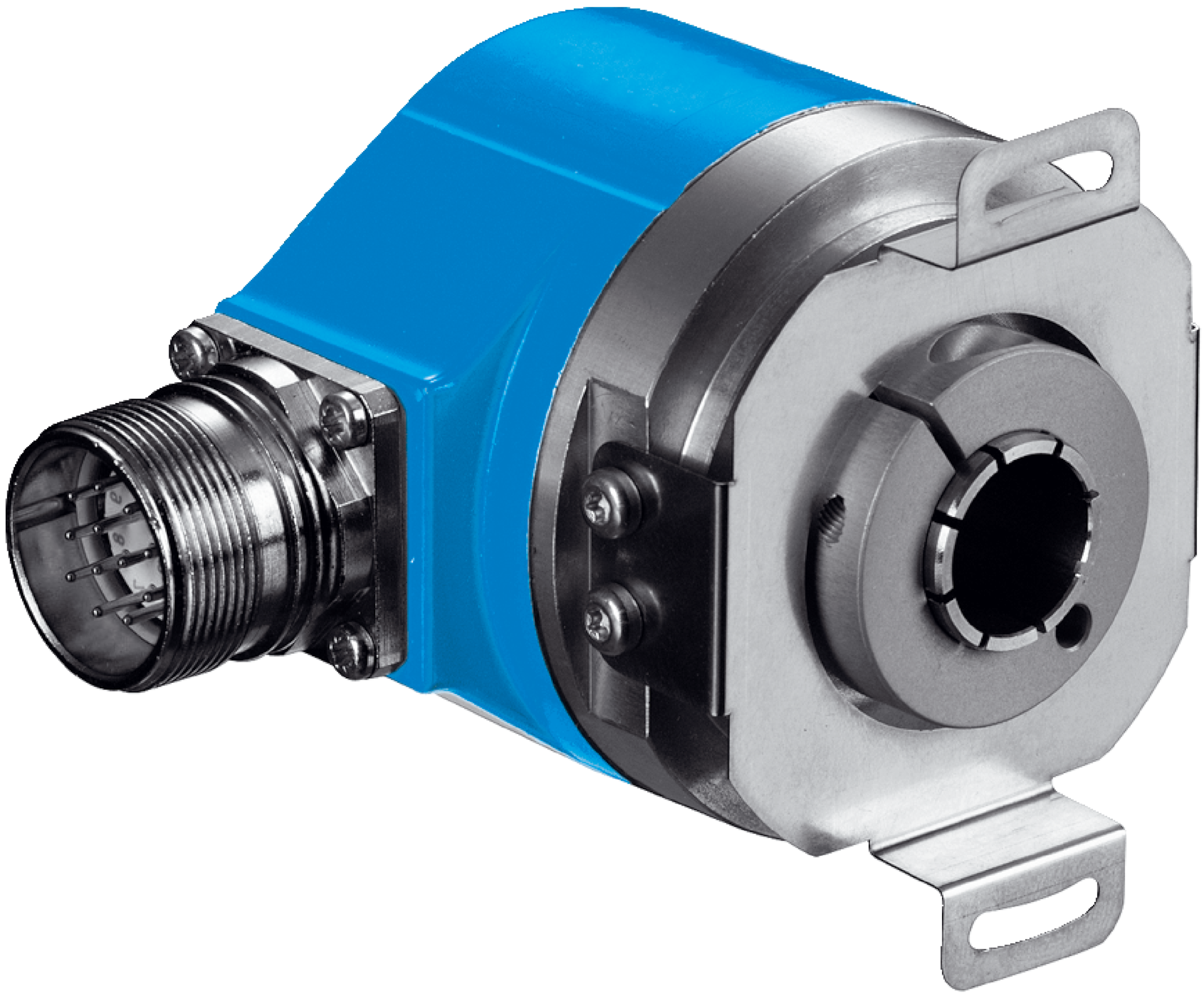

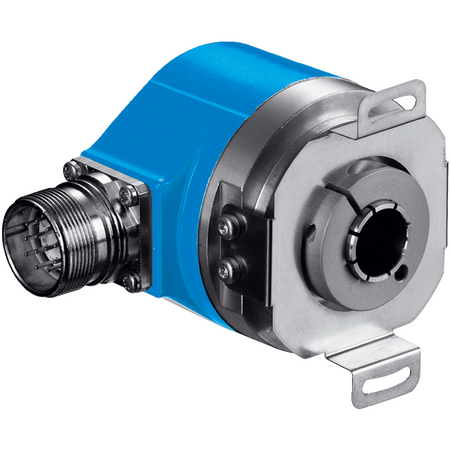

ARS60-HAA01000 | Absolute encoders
The SICK ARS60-HAA01000 Absolute Encoder offers precise angular measurement with high resolution and robust design, suitable for demanding industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-HAA01000 | Absolute encoders
Brand: SICK
SKU: 1035835
Alternatively Known As: Absolute rotary encoder, ARS60 encoder, SICK rotary encoder, industrial position encoder
Technical Specifications
- Maximum resolution: 1,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: Binary with adjustable code sequence parameter
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Housing material: Aluminum die cast
- Start-up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,000 steps per revolution
- Blind hollow shaft mechanical design with front clamp
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +85°C
- Low start-up torque of typically 0.6 Ncm
- High repeatability with standard deviation of 0.005°
- Fast initialization time of 80 ms
- Male connector M23, 21-pin radial connection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and machinery positioning
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-HAA01000 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
