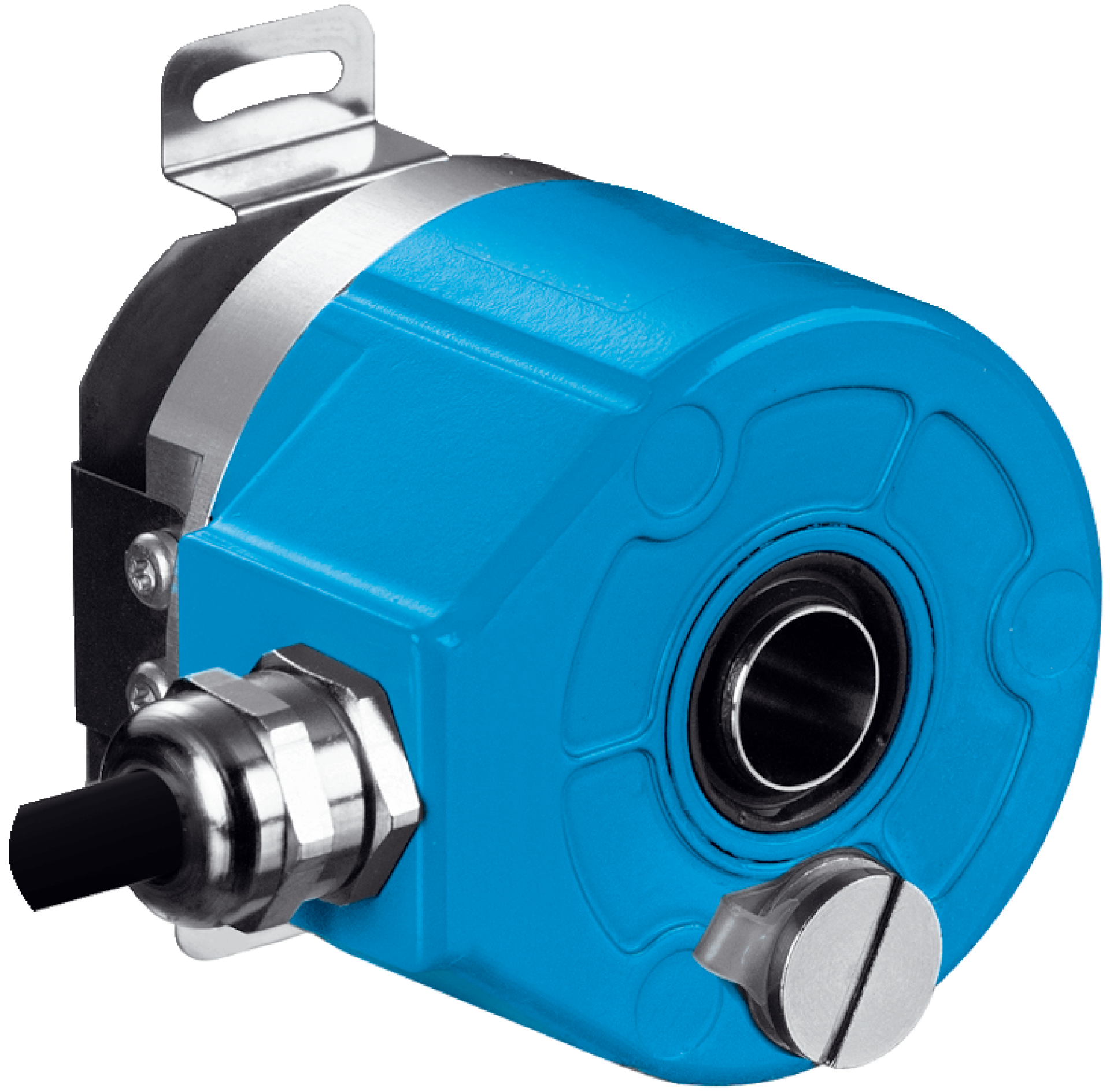

ARS60-HDK03600 Absolute encoders

BRAND: SICK
SKU: 1033019
$2,524.20 List price: $3,172.70
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-HDK03600 is a high-precision absolute encoder featuring 3,600 steps per revolution, robust aluminum housing, and IP64 protection

Product Name/Title: ARS60-HDK03600 | Absolute encoders

Brand: SICK

SKU: 1033019

Alternatively Known As: Absolute rotary encoder, high resolution encoder, hollow shaft encoder, industrial position sensor

Technical Specifications
  • Number of steps per revolution: 3,600
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Initialization time: 80 ms
  • Code type: Binary
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: 22-wire cable, radial, 1.5 m length
  • Mechanical design: Through hollow shaft
  • Shaft diameter: 12 mm
  • Housing material: Aluminum die cast
  • Start up torque: Typically 2.2 Ncm
  • Operating torque: Typically 1.6 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: Up to 3,000 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Operating temperature range: -20°C to +85°C
  • Enclosure rating: IP64
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 3,600 steps per revolution
  • Through hollow shaft mechanical design with 12 mm shaft diameter
  • Robust aluminum die cast housing
  • IP64 rated enclosure for dust and splash protection
  • Low start-up torque of typically 2.2 Ncm and operating torque of 1.6 Ncm
  • High repeatability with standard deviation of 0.005°
  • Fast initialization time of 80 ms
  • Parallel data world communication interface
  • Wide operating temperature range from -20°C to +85°C
  • High resistance to shocks (50 g) and vibration (20 g)
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement and positioning
  • Machine tool feedback systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Low power consumption with typical operating current of 90 mA
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-HDK03600 Absolute Encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
