ARS60-HDK16384 | Absolute encoders

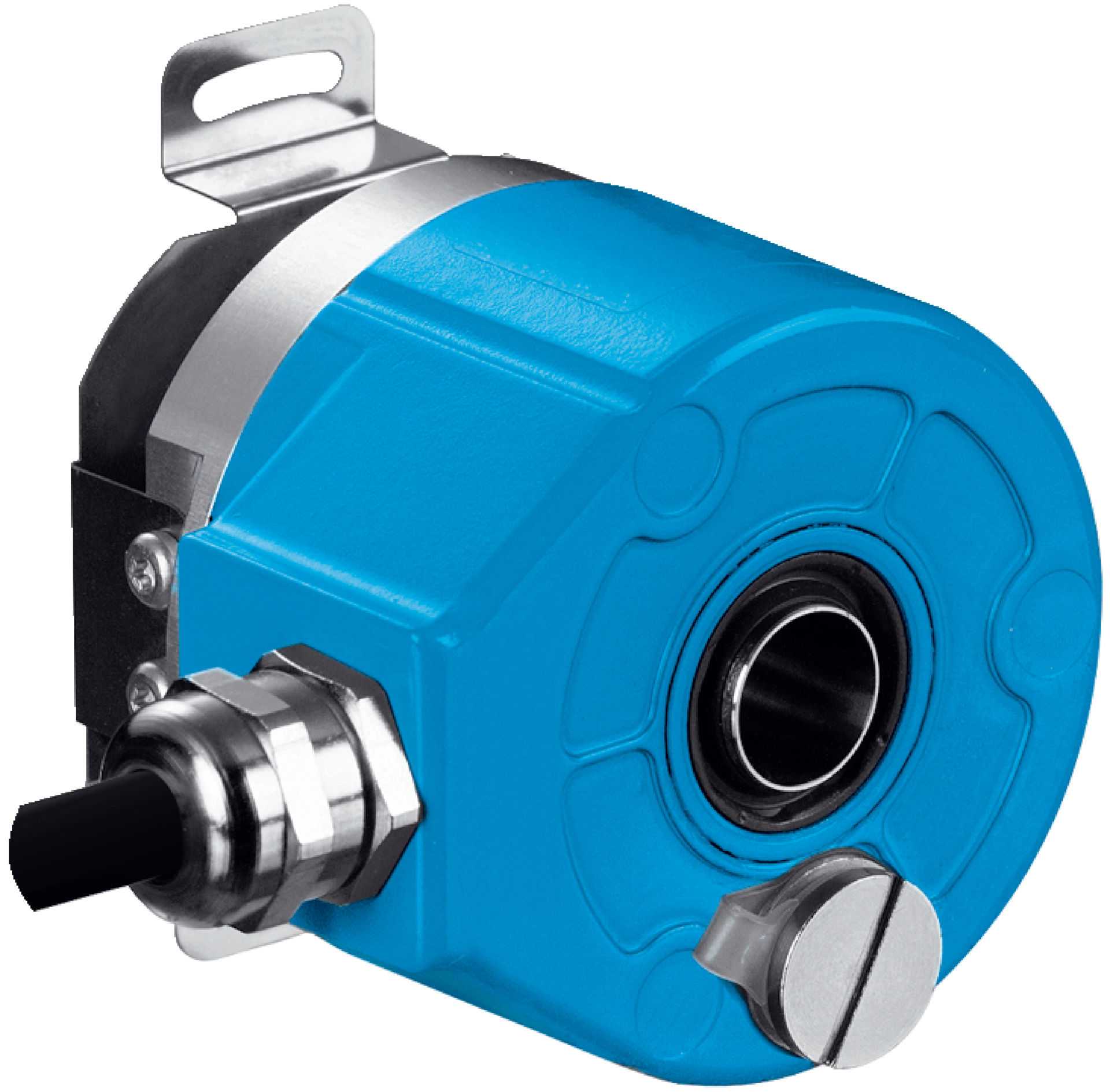

The SICK ARS60-HDK16384 Absolute Encoder offers high precision and reliability with 16,384 steps per revolution, suitable for demanding industrial applications requiring accurate position feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ARS60-HDK16384 | Absolute encoders
Brand: SICK
SKU: 1034865
Alternatively Known As: Absolute rotary encoder, high resolution encoder, hollow shaft encoder, industrial position sensor
Technical Specifications
- Resolution: 16,384 steps per revolution (14 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: 22-wire cable, radial, 1.5 m length
- Mechanical design: Through hollow shaft with 12 mm diameter
- Housing material: Aluminum die cast
- Start-up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP64
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Through hollow shaft mechanical design with 12 mm shaft diameter
- Robust aluminum die cast housing
- IP64 rated enclosure for dust and splash protection
- Low start-up torque of typically 2.2 Ncm and operating torque of 1.6 Ncm
- High reliability with MTTFD of 300 years according to EN ISO 13849-1
- Fast initialization time of 80 ms
- Parallel data world communication interface
- Wide operating temperature range from -20°C to +85°C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with low current consumption (typ. 90 mA)
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-HDK16384 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
