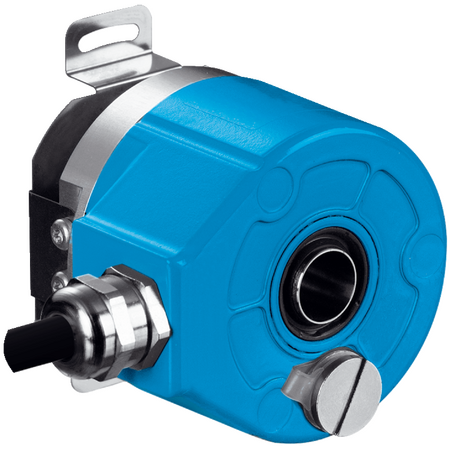

ARS60-HDM00072 Absolute encoders

BRAND: SICK
SKU: 1035105
$2,712.10 List price: $3,408.90
+ −
30 Days Return Electricians Unlock Trade Access
The SICK ARS60-HDM00072 Absolute Encoder offers precise angular measurement with high reliability and robust construction

Product Name/Title: ARS60-HDM00072 | Absolute encoders

Brand: SICK

SKU: 1035105

Alternatively Known As: Rotary encoder, Absolute rotary encoder, Through hollow shaft encoder, Industrial position sensor

Technical Specifications
  • Number of steps per revolution: 72
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Initialization time: 80 ms
  • Code type: Binary
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Cable, 22-wire, radial, 5 m
  • Mechanical design: Through hollow shaft
  • Shaft diameter: 12 mm
  • Housing material: Aluminum die cast
  • Start up torque: Typically 2.2 Ncm
  • Operating torque: Typically 1.6 Ncm
  • Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
  • Permissible movement dynamic: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: Up to 3000 min⁻¹
  • Enclosure rating: IP64
  • Operating temperature range: -20 °C to +85 °C
  • Storage temperature range: -40 °C to +100 °C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 72 steps per revolution
  • Through hollow shaft mechanical design with 12 mm shaft diameter
  • Robust aluminum die cast housing
  • IP64 rated enclosure for protection against dust and water splashes
  • Low start-up torque of typically 2.2 Ncm and operating torque of 1.6 Ncm
  • High reliability with mean time to dangerous failure (MTTFD) of 300 years
  • Operating speed up to 3000 min⁻¹
  • Cable connection with 22 wires, 5 m length
  • Wide operating temperature range from -20 °C to +85 °C
  • Certified with multiple international conformity declarations including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
  • Industrial automation and control systems
  • Robotics and machinery positioning
  • Precision measurement in manufacturing processes
  • Safety-related monitoring in automated equipment
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Long service life reduces waste and replacement frequency
  • Energy-efficient operation with low current consumption
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-HDM00072 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
