ARS60-J4A00720 Absolute encoders

BRAND: SICK
SKU: 1036609
$2,339.40 List price: $2,940.40
+ −
30 Days Return Electricians Unlock Trade Access

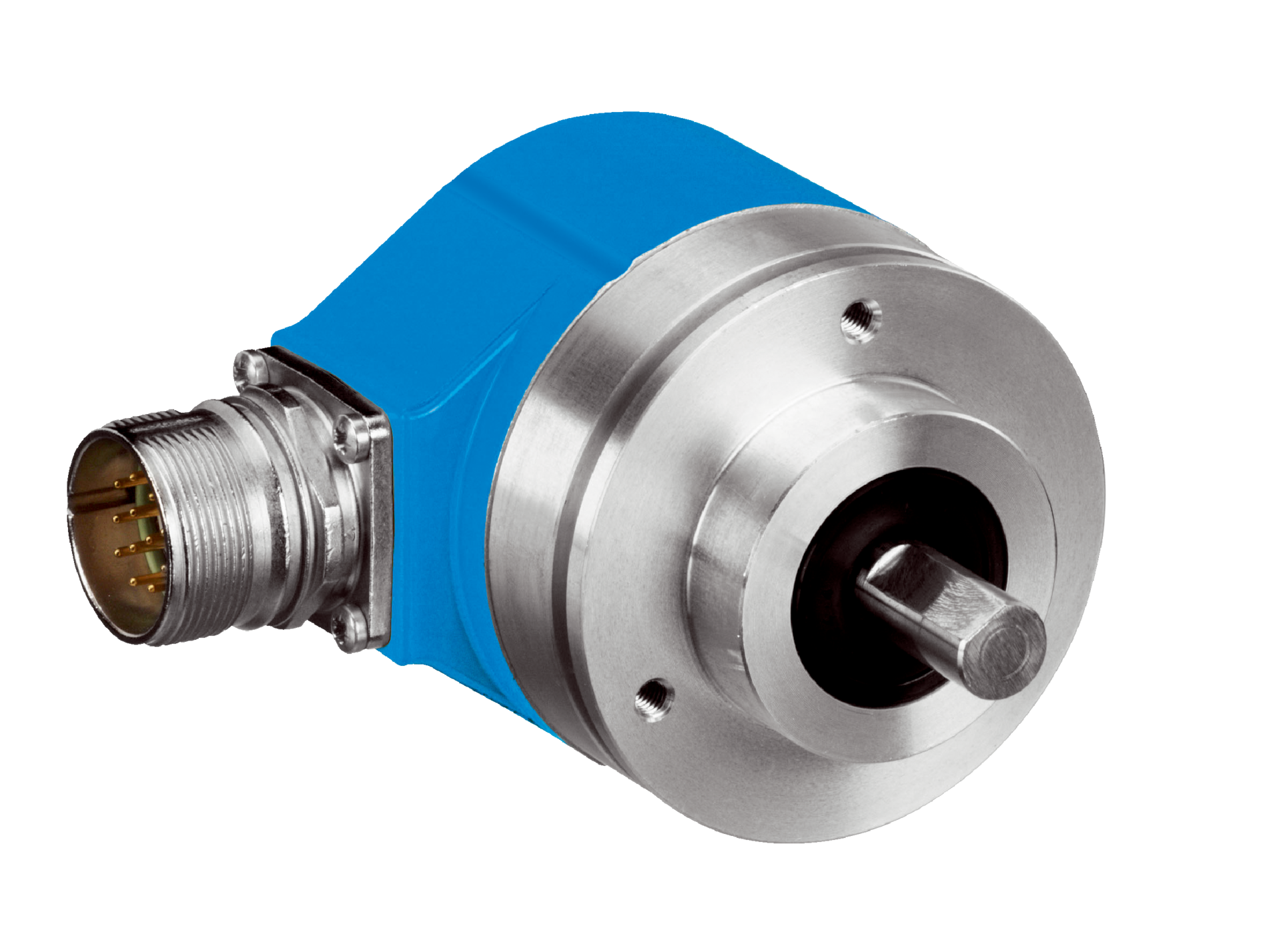

The SICK ARS60-J4A00720 Absolute Encoder offers precise angular measurement with high resolution and robust design

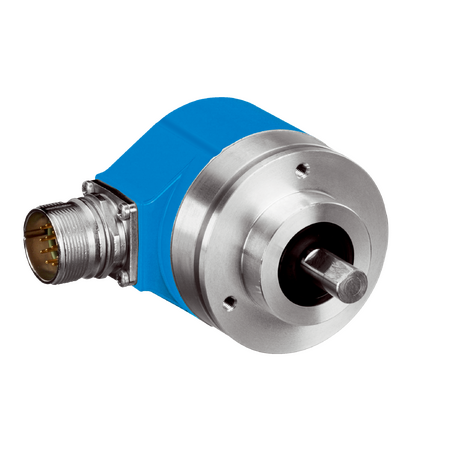

Product Name/Title: ARS60-J4A00720 | Absolute encoders

Brand: SICK

SKU: 1036609

Alternatively Known As: Rotary encoder, Absolute rotary encoder, Angular position sensor, Industrial encoder

Technical Specifications
  • Maximum resolution: 720 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Code type: BCD
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, radial
  • Shaft diameter: 10 mm with flat
  • Start-up torque: Typically 0.4 Ncm
  • Operating torque: Typically 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Enclosure rating: IP65
  • Operating temperature range: -20°C to +85°C
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 100mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 720 steps per revolution
  • Solid shaft with face mount flange design
  • Robust aluminum die cast housing
  • IP65 rated enclosure for protection against dust and water
  • Low start-up and operating torque
  • High operating speed up to 10,000 min⁻¹ without shaft seal
  • Excellent repeatability with standard deviation of 0.005°
  • Parallel data communication interface with BCD code
  • Wide operating temperature range from -20°C to +85°C
  • Certified with multiple international conformity declarations
Professional Installation Requirements
  • Installation should be performed by a qualified technician or electrician to ensure proper connection and calibration.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement and positioning
  • Machine tool feedback systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Durable construction reduces replacement frequency and waste
  • Low power consumption enhances energy efficiency in automation systems
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.

Available Now

The SICK ARS60-J4A00720 Absolute Encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
