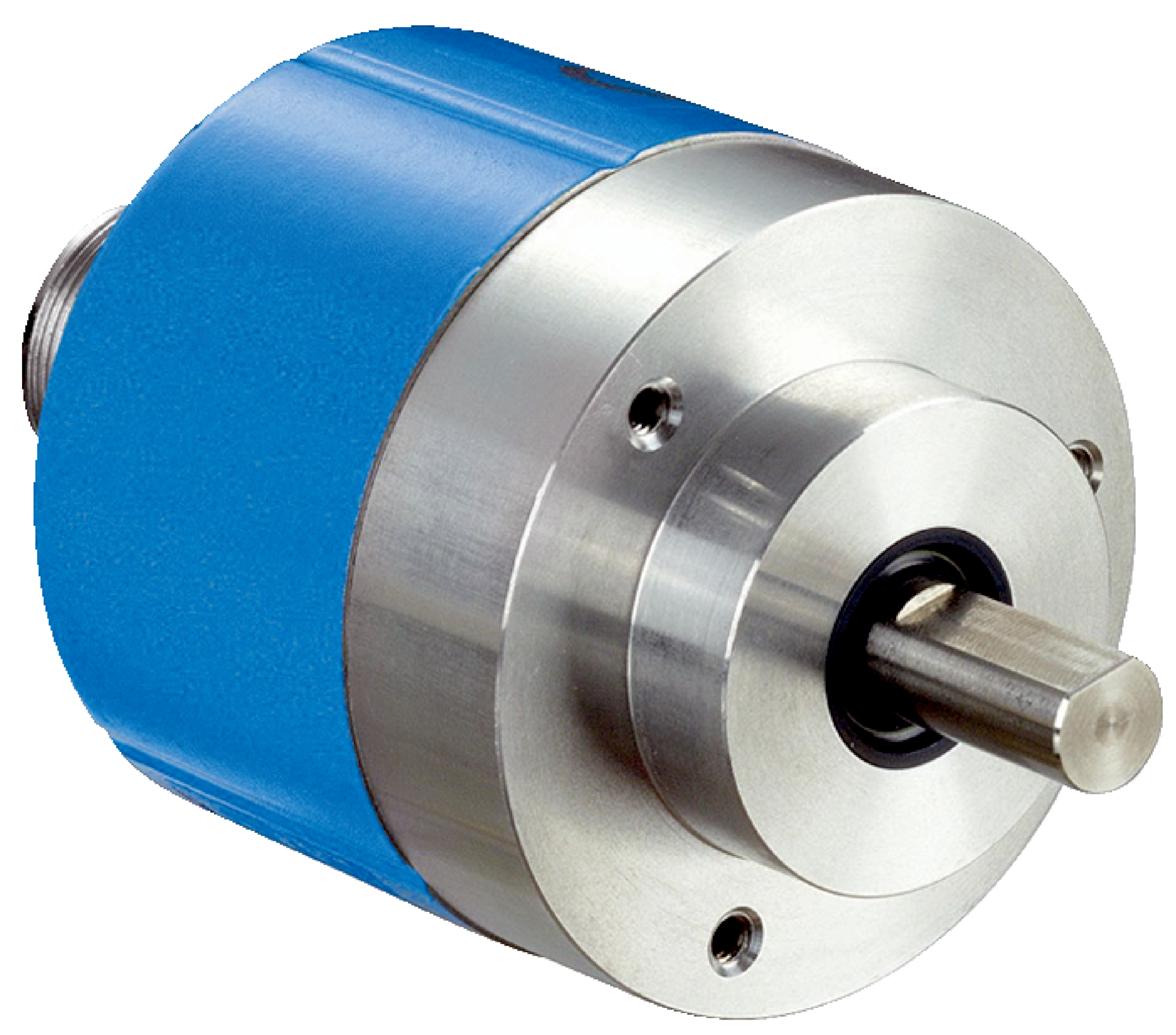

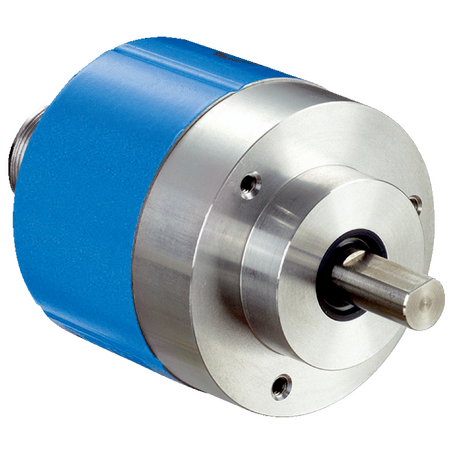

Product Name/Title: ARS60-J4B01024 | Absolute encoders
Brand: SICK
SKU: 1034707
Alternatively Known As: Absolute rotary encoder, shaft encoder, position encoder, angle encoder, industrial encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Max resolution: 1,024 steps per revolution (10 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Code type: BCD
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing with IP65 rating
- Low start-up torque of typically 0.4 Ncm and operating torque of 0.3 Ncm
- Operating temperature range from -20 °C to +85 °C
- High resistance to shocks (50 g, 11 ms) and vibration (20 g, 10 Hz to 2,000 Hz)
- Parallel data world communication interface with BCD code type
- Fast initialization time of 80 ms
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate shaft angle detection
- Machine tools requiring high-resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
