ARS60-JDK00400 Absolute encoders

BRAND: SICK
SKU: 1216687
$2,048.20 List price: $2,574.40
+ −
30 Days Return Electricians Unlock Trade Access

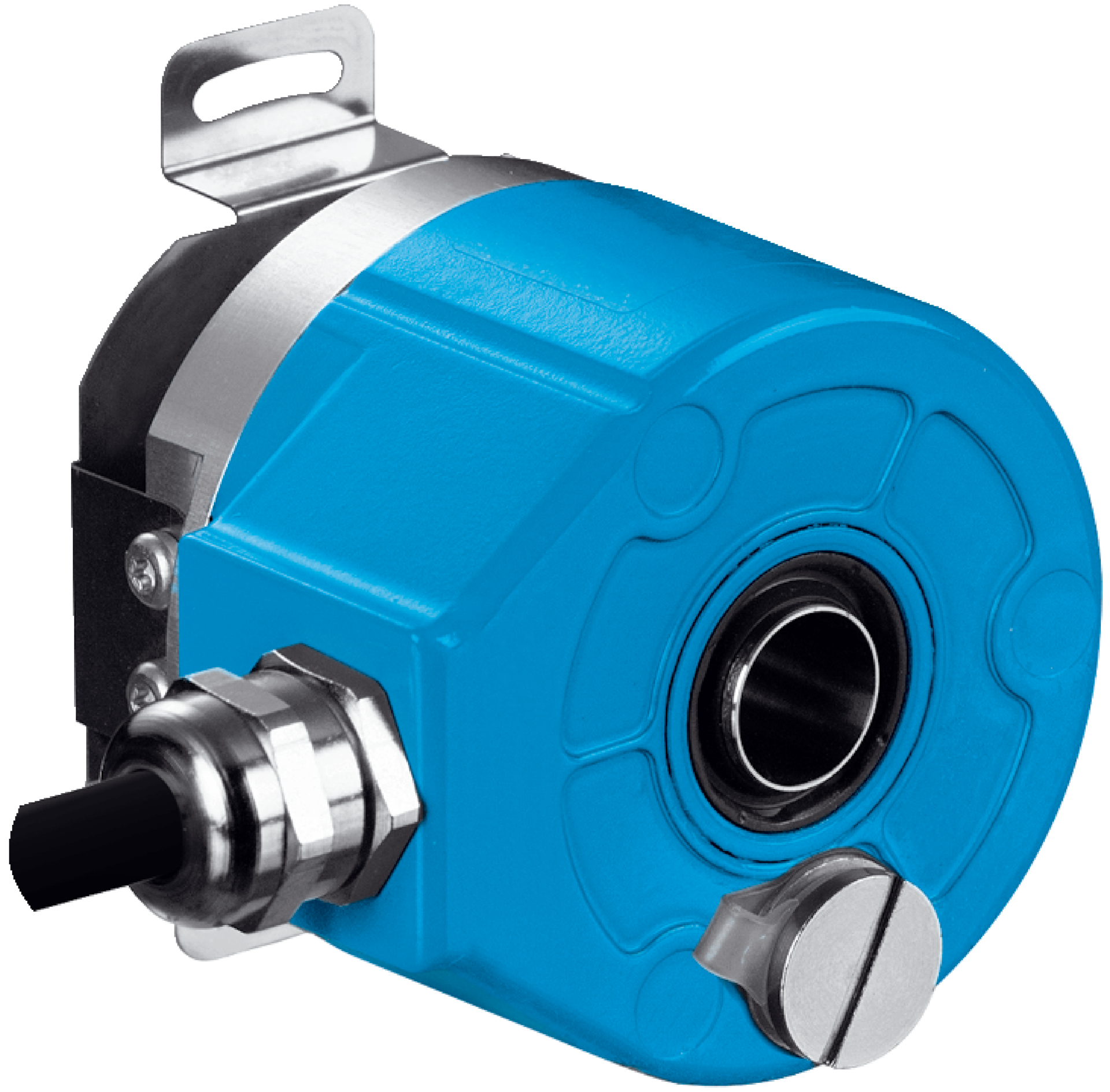

The SICK ARS60-JDK00400 Absolute Encoder offers precise angular measurement with high resolution and robust design

Product Name/Title: ARS60-JDK00400 | Absolute encoders

Brand: SICK

SKU: 1216687

Alternatively Known As: Rotary Encoder, Absolute Rotary Encoder, Angular Position Sensor, SICK Encoder ARS60

Technical Specifications
  • Maximum resolution: 400 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation: 0.005°
  • Communication interface: Parallel data world
  • Code type: BCD with adjustable code sequence parameter
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: 22-wire radial cable, 1.5 m length
  • Mechanical design: Through hollow shaft with 12 mm diameter
  • Housing material: Aluminum die cast
  • Start-up torque: 2.2 Ncm
  • Operating torque: 1.6 Ncm
  • Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
  • Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
  • Operating speed: Up to 3000 min⁻¹
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Operating temperature range: -20°C to +85°C
  • Enclosure rating: IP64
  • Resistance to shocks: 50 g, 11 ms
  • Resistance to vibration: 20 g, 10 Hz to 2000 Hz
  • Dimensions (H x L x W): 60mm x 60mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 400 steps per revolution
  • Through hollow shaft mechanical design with 12 mm shaft diameter
  • Robust aluminum die cast housing
  • IP64 rated enclosure for dust and splash protection
  • Low start-up torque of 2.2 Ncm and operating torque of 1.6 Ncm
  • High repeatability with standard deviation of 0.005°
  • Fast initialization time of 80 ms
  • Cable connection with 22-wire, 1.5 m radial cable
  • Wide operating temperature range from -20°C to +85°C
  • Certified with multiple international conformity declarations including EU, UK, ACMA, cULus, and China RoHS
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement in manufacturing
  • Safety-related monitoring systems
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and electronic waste
  • Low power consumption with typical operating current of 90 mA
  • Compliance with China RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK ARS60-JDK00400 Absolute Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
