Arteor™ 1-Way Push-Button | Blue LED Locator & Bell Symbol | IP40 Rated | Soft Aluminium | @EA of 1 | by Legrand

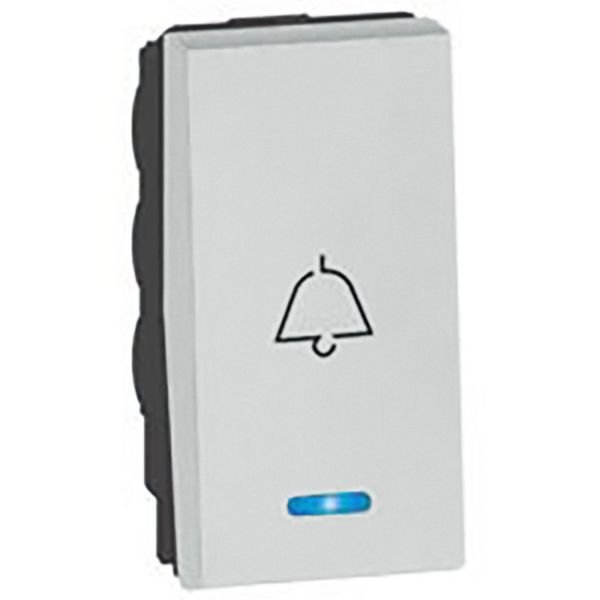

The Arteor™ 1-way push-button features a blue LED locator and bell symbol, making it perfect for doorbell systems in both residential and commercial settings. With a rated current of 6 A at 250 V AC and an IP40 protection rating, this durable switch is designed for reliable performance. Made from halogen-free thermoplastic with a stylish soft aluminium finish, it ensures safety and longevity in any application.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 1-Way Push-Button | Blue LED Locator & Bell Symbol | IP40 Rated | Soft Aluminium | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573040
Alternatively Known As: Bell Push Button Switch, Doorbell Button, Push Button Switch with LED Indicator, 1 Module Push Button
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally closed: 1
- Number of contacts normally open: 1
- Number of poles: 2
- Connection type: Screwed terminal
- Mounting method: Module frame with snap fastening
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- IP rating: IP40
- Impact resistance: IK04
- Material: Halogen-free thermoplastic
- Surface finish: Matt aluminium
- With lighting: Yes, blue LED locator
- Label space available with bell symbol imprint
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way push-button with blue LED locator and bell symbol
- Square version, 1 module size
- Rated current 6 A at 250 V AC
- Screwed terminal connection with snap fastening
- IP40 protection rating and IK04 impact resistance
- Made from halogen-free thermoplastic with matt aluminium finish
- Equipped with label space for identification
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Residential: Doorbell systems in homes and apartments
- Commercial: Office buildings, hotels, and public facilities
- General: Suitable for modular domestic switching devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product lifespan
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 1-way push-button with locator and bell symbol in soft aluminium is available for immediate purchase, ideal for residential and commercial doorbell applications.
