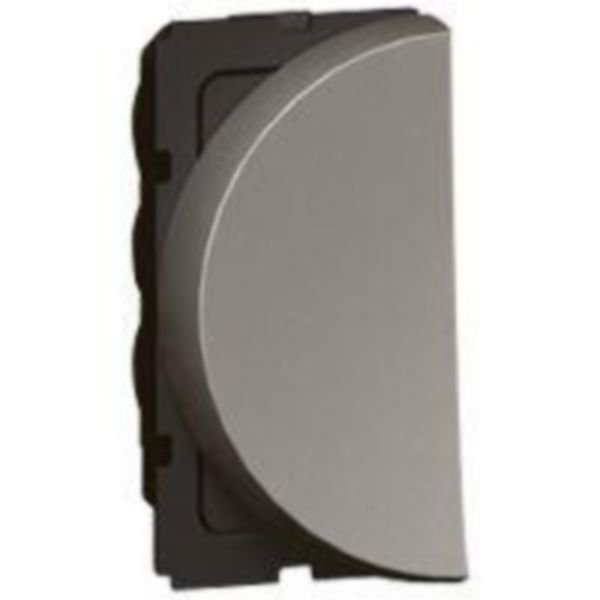

Arteor™ 1-Way Push-Button Round | 6A Rated Current | IP40 Protection | Lacquered Matt Grey | @EA of 1 | by Legrand
The Arteor™ 1-way push-button round switch is designed for seamless integration into home and commercial lighting systems. With a rated current of 6A at 250V AC and IP40 protection, it ensures reliable performance in various environments. Made from halogen-free thermoplastic with a stylish lacquered matt grey finish, this modular device is perfect for both residential and industrial applications, providing energy-efficient control and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 1-Way Push-Button Round | 6A Rated Current | IP40 Protection | Lacquered Matt Grey | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573100
Alternatively Known As: 1-way push button switch, single rocker switch, modular push button, flush mount push button
Technical Specifications
- Rated current: 6A
- Nominal voltage: 250 V AC
- Number of contacts normally open: 1
- Number of contacts normally closed: 0
- Number of poles: 1
- Connection type: Screwed terminal
- Mounting method: Flush-mounted
- Material: Halogen-free thermoplastic
- Surface finish: Lacquered matt grey
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Single 1-way push-button with rocker operation
- Flush-mounted with snap fastening for easy installation
- Rated current 6A at 250V AC
- Modular device compatible with standard domestic switching systems
- Halogen-free thermoplastic material with lacquered matt grey finish
- IP40 rated for protection against solid objects
- IK04 impact resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Home lighting and control systems
- Commercial: Office and retail building wiring
- Industrial: Control panels and modular switch installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Energy efficient switching reduces power wastage
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor™ 1-way push-button round 1 left module magnesium is available for immediate purchase, ideal for residential and commercial wiring applications.
