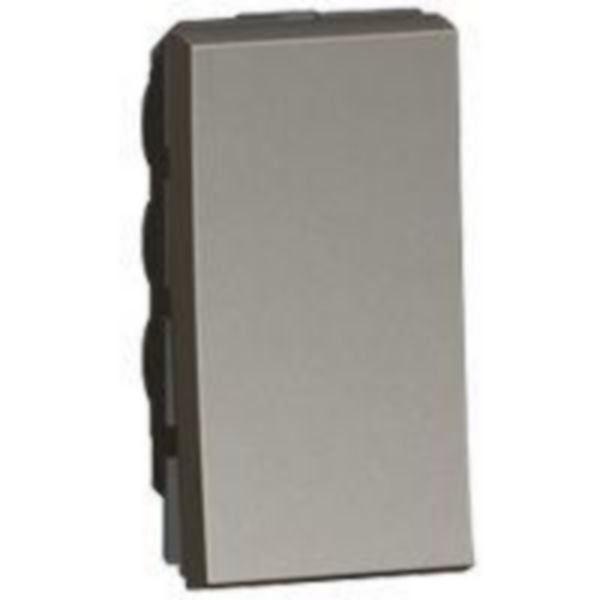

Arteor™ 1-Way Push-Button Round | IP40 Rated | 6A at 250V AC | Flush-Mounted Design | @EA of 1 | by Legrand
The Arteor™ 1-way push-button round switch is designed for seamless home and commercial lighting control. With a rated current of 6A at 250V AC and an IP40 protection rating, this flush-mounted switch ensures durability and reliability. Ideal for residential and commercial applications, it features a sleek magnesium finish and is made from halogen-free thermoplastic for enhanced environmental benefits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 1-Way Push-Button Round | IP40 Rated | 6A at 250V AC | Flush-Mounted Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573101
Alternatively Known As: Legrand Arteor Push Button Switch, 1 Module Push Button, 1-Way Switch, Magnesium Push Button
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally open: 1
- Number of contacts normally closed: 0
- Number of poles: 1
- Mounting method: Flush-mounted
- Connection type: Screwed terminal
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Cable section: 4-4 mm²
- Material: Thermoplastic, lacquered matt finish
- Colour: Grey
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way push-button with rocker operation
- Flush-mounted design with snap fastening
- Rated current 6A at 250V AC
- Single middle module size
- Made from thermoplastic material with lacquered matt finish
- Halogen free and IP40 rated for protection
- IK04 impact resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Home lighting and control systems
- Commercial: Office and retail lighting control
- Industrial: Control panels and switchboards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product lifespan
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand Arteor 1-way push-button round 1 middle module magnesium is available for immediate purchase, ideal for residential and commercial electrical wiring applications.
