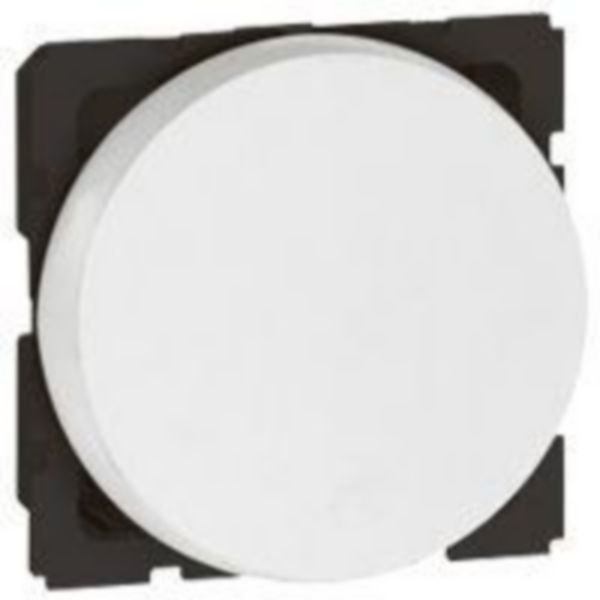

Arteor™ 1-Way Push-Button Switch | 2 Round Modules | IP40 Rated | Glossy White | @EA of 1 | by Legrand
The Arteor™ 1-Way Push-Button Switch features two round modules and is designed for seamless integration into home and commercial lighting systems. With a rated current of 6A at 250V AC and an IP40 protection rating, this switch ensures reliable performance and durability. Ideal for residential and commercial applications, it combines functionality with a sleek glossy white finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 1-Way Push-Button Switch | 2 Round Modules | IP40 Rated | Glossy White | @EA of 1 | by Legrand
Brand: Legrand
SKU: 573050
Alternatively Known As: Legrand Arteor Push Button Switch, 1-Way Push Button, 2 Module Switch, White Push Button Switch
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally open: 1
- Number of contacts normally closed: 0
- Number of poles: 1
- Mounting method: Flush-mounted
- Connection type: Screwed terminal
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Cable section: 4-4 mm²
- Material: Halogen-free thermoplastic
- Surface finish: Glossy white
- Dimensions (H x L x W): 45mm x 42.2mm x 45mm
- Weight: 0.1 kg
Key Features
- 1-way push-button switch with rocker operation
- Rated current of 6A at 250V AC
- Flush-mounted with snap fastening
- Made from halogen-free thermoplastic material
- Glossy white finish with IP40 protection rating
- IK04 impact resistance
- Screwed terminal connection for secure wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential: Home lighting and control systems
- Commercial: Office and retail lighting control
- Industrial: Control panels and automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction for long product life
- Energy efficient design reduces unnecessary power consumption
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 1-Way Push-Button 2 Round Modules White is available for immediate purchase, ideal for residential and commercial electrical switching applications.
