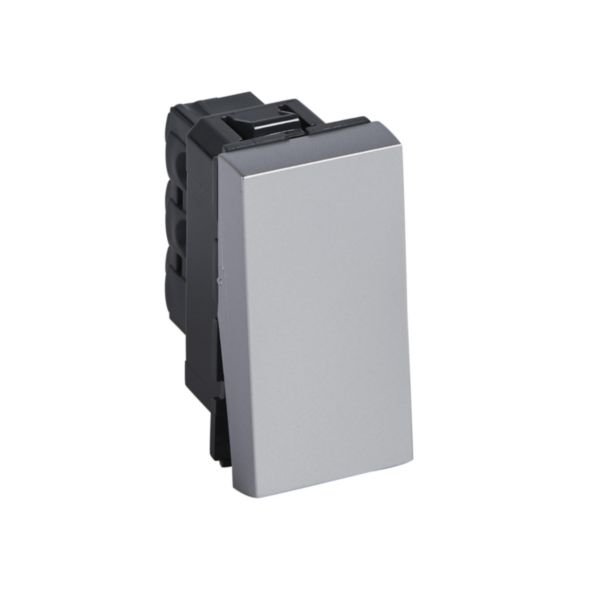

Arteor™ 1-Way Push-Button Switch | 6 A 250 V | IP40 Rated | Lacquered Matt Aluminium | @EA of 1 | by Legrand
The Arteor™ 1-way push-button switch is designed for reliable light control, featuring a rated current of 6 A at 250 V AC and a sleek square design. Ideal for both residential and commercial applications, this switch offers secure screwed terminal connections and is IP40 rated for protection against solid objects, ensuring durability and safety in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Arteor™ 1-Way Push-Button Switch | 6 A 250 V | IP40 Rated | Lacquered Matt Aluminium | @EA of 1 | by Legrand
Brand: Legrand
SKU: 571000
Alternatively Known As: Legrand Arteor push button switch, 1 module push button, 6A light switch, aluminium push button switch
Technical Specifications
- Rated current: 6 A
- Rated voltage: 250 V AC
- Number of contacts normally open: 1
- Number of poles: 1
- Connection type: Screwed terminal
- Mounting method: Snap-in on modular frame
- Material: Halogen free thermoplastic
- Surface finish: Lacquered matt aluminium
- IP rating: IP40
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Frequency: 50-60 Hz
- Cable section: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way push-button switch with rocker operation
- Rated current 6 A at 250 V AC
- Single module size, square version
- Screwed terminal connection for secure wiring
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Halogen free thermoplastic material with lacquered matt aluminium finish
- Snap-in mounting on modular frames
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Light switching in homes and apartments
- Commercial: Office and retail lighting control
- General: Suitable for modular domestic electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Energy efficient switching reduces power wastage
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor 1-way push-button 6A 250V 1 module square aluminium switch is available for immediate purchase, ideal for residential and commercial electrical wiring applications.
