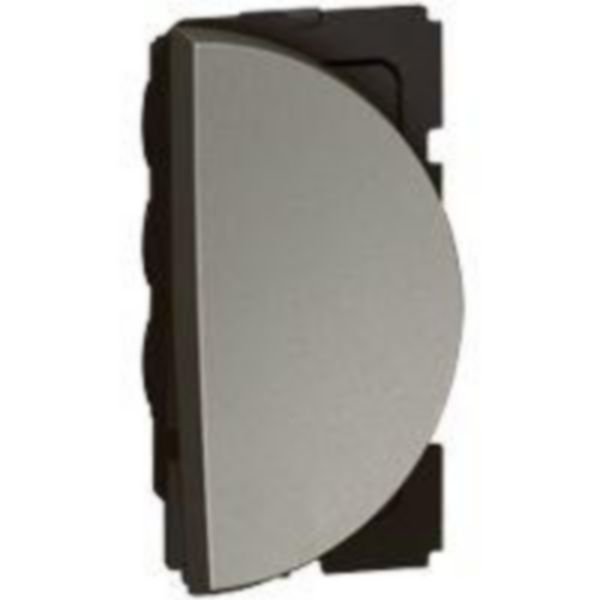

Arteor™ 1-Way Push-Button Switch | Round Design | IP40 Rated | Lacquered Matt Finish | @EA of 1 | by Legrand
The Arteor™ 1-way push-button switch is designed for seamless control in residential and commercial lighting systems. Featuring a round design and IP40 rating for protection against solid objects, this switch is made from halogen-free thermoplastic with a stylish lacquered matt finish. Ideal for professional installation, it ensures secure wiring with its screwed terminal connection, making it perfect for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal voltage: 250 V AC
- Rated current: 6 A
- Number of contacts normally open: 1
- Number of contacts normally closed: 0
- Number of poles: 1
- Mounting method: Flush-mounted
- Connection type: Screwed terminal
- Material: Halogen free thermoplastic
- Surface finish: Lacquered matt
- Degree of protection: IP40
- Impact resistance: IK04
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Cable section compatibility: 4-4 mm²
- Dimensions (H x L x W): 45mm x 42.2mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 1-way push-button with rocker operation
- Flush-mounted design with snap fastening
- Rated current 6A at 250V AC
- Single module width (22.5 mm)
- IP40 rated for protection against solid objects
- IK04 impact resistance
- Halogen free thermoplastic material with lacquered matt finish
- Screwed terminal connection for secure wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Residential: Home lighting and control systems
- Commercial: Office and retail lighting control
- Industrial: Modular electrical switching applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Energy efficient switching reduces power wastage
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand Arteor 1-way push-button round magnesium 1 right module is available for immediate purchase, ideal for residential and commercial electrical switching applications.
